Stationary Elevator Platform Lifter
- Qingdao
 - T/T

You May Like
Product Details
| Design | Scissor | Type | One Cylinder Hydraulic Lift | |
| Certification | CE | Lifting Height(mm) | customized design | |
| Overall Width(mm) | Adjustable | Place of Origin | China | |
| Brand Name | Jingding | Model Number | SJG |
Product Description

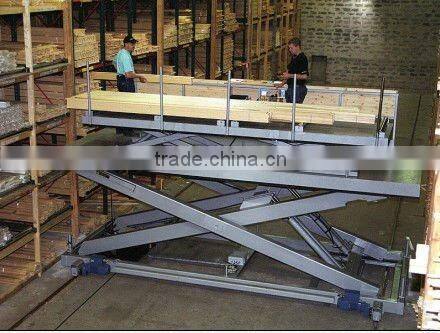

Stationary hydraulic forklift elevator platform

1.Lift tables Instruction-vertical Double Scissor Arms
By equippping a scissor lift table with a number of scissor arms assembied vertically on top of each other, the user get access to a higher height range compared to what is possible with a single scissor lift table.
This kind of products can be used as working platforms, pallet stackers, work tables, lifts and lifts for disabled persons, to name a few applications. Compared to a traditional lift solution,.It provides a rational and cost effective solution.
With a variety of designs and models, load capacity of between 100 kg and 30000 kg and a lift range form 1m to 20 m, we offer a very large selection. The lift tables are available in different colours, with a range of different accessories or control units-all tailored to the needs and
intensive operation is planned for them.
Creater functionality can be achieved with the help of various accessories. A few xeamples of accessories for the this product group are various chassis frames, guard rails, gates, loading flaps, limt swithces, as well as different types of control unit.
Before deciding which model and design is required consider all conditions. Most models for intensive use can be manufactured in HD-version.
The technical data for each model can be found on this site.
2.Application:
Used for Handing Cargo in Storage
Used for Loading Goods
Used for Handing Cars
For Project work:
4.Product features
Lift table load capacity max
Lift table platform
Safety spacing between all moving parts of the lift table
Overload protection
Adjustable trap prevention safety trip bars on all four sides of the platform
Lift tables is equipped with hose burst valves and mechanical locks fo servicingand maintenance.
5.Advantages
a.Maintenance-free bearing surface
b.Import motor
The motor is Japan ABB and Italia Brevini.
c.Max. Load : 30,000 kg
Adopt the lastest technical to make the load as much as 30000 kg
d.Tear plate platform
The tear plate platform minimizes the risk for cargo to slip from
the table surface. The tear plate platforms are recommended for tableslocated outdoors.
6.Technology parameters
model
  | rated load (kg)  | working height (mm)  | Shut height (mm)  | platform size (mm x mm)  | POWER (KW)  |
SJG0.3-3  | 300  | 3000  | 540  | 1500*800  | 1.5  |
SJG0.5-5  | 500  | 5000  | 800  | 1500*1500  | 1.5  |
SJG0.3-7  | 300  | 7000  | 870  | 1500*760  | 1.5  |
SJG1.0-10  | 1000  | 10000  | 1450  | 2500*1200  | 1.5  |
SJG0.3-10  | 300  | 10000  | 982  | 2600*1400  | 1.5  |
SJG0.5-12  | 500  | 12000  | 1330  | 2500*1500  | 3  |
SJG1.0-12  | 1000  | 12000  | 1000  | 2600*1500  | 3  |
SJG2.0-12  | 2000  | 12000  | 1500  | 4000*2500  | 3  |
SJG5.0-6  | 5000  | 6000  | 1050  | 3300*1500  | 4  |
SJG10.0-8  | 10000  | 8000  | 2060  | 3000*3000  | 4  |
SJG1.0-8  | 1000  | 8000  | 250  | 1800*1400  | 1.5  |
SJG15-7  | 15000  | 7000  | 1750  | 6000*4000  | 4  |
SJG30-3  | 30000  | 3000  | 1600  | 7400*3600  | 4  |

 Jinan Jinding Hydraulic Machinery Co., Ltd. is a professional high-tech enterprise locates in Shandong, China, specializing in producing technologically advanced hydraulic scissor lifts, mobile lifts, aluminum alloy lifting platforms and so on.
Our focus is on R&D, ensuring that we provide our customers with top quality and innovative products.
In addition, we use strict quality control system to ensure our products with high quality,excellent after-sales service.with years’ of exporting, we earned an excellent reputation among our customers at home and abroad.

| Packaging Details: | nude packing or according to your requirements |
|---|---|
| Delivery Detail: | 10-20 working days or according to your requirements |

![]()  | Online from 8:00 am to 22:00 pm Monday-Friday | Leave message will be reply in 1-3 hours,will be reply in 8-12 hours at weekends |
   ![]()  | skyp:chenfeiying8 Online from 8:00 am to 22:00 pm Monday-Friday  | Leave message will be reply in  1-3 hours,will be reply in 8-12 hours at weekends |
| Quick response from 8:00 am to 17:00 pm Monday-Friday | Email between 22:00 pm to next day 7:00am will be reply in 8-24h | |
| Tel | +86 15906826831 Available any time | Feel free to call  |
Quick response,More professional suggetion,and better aftersale-service!
