Good Price Drinking Water Factory Equipment

    good price drinking water factory  equipment

advantage:

1, Adopting SS304 materical with opening design, clear process and convenient maintenace.

2,  High quality TFC compound Romembrane treatment crafts with very low pressure and the capacity of desalinization rate comes to 98% at least.

3,  Auto-check conductance display guarantee watching water quality.

4,  Multi medium beforehand filter increases the capacity of water treatment.

5,  Adopts high efficiency active carbon filter which can wipes chlorine of raw water , protect RO membrane and adjust the taste.

6,  Safe and reliable electrical system designequipment auto stop protection when open circuit,short circuit and creepage.

7,  Intelligent circuit design equipment auto stop and run when high or low level water.

8,  RO membaranes auto wash and manual wash ,which can protect RO membrane easily.

General description

This water treatment system includes raw water tank ,raw water pump,silica sand filter,active carbon filter,ion exchange,high pressure pump,reverse osmosis,Ozone sterilizer,water storage tank  and so on.The raw water tank is made of SUS304 material.Raw water pump provide the pressure to silica sand filter/active carbon filter.Silica Sand filter get rid of turbidity, suspended matter, organic matter, colloid and so on.Active Carbon filter Remove the color, free chloride, organic matter, harmful matter and so onion exchange prevent any deposition of large Particles, most of the bacteria, and viruses into the  RO   membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity. High pressure pump Provide the high pressure to RO membrane(at least 2.0 Mpa).RO system is the main part of pure water treatment plant. The RO membrane's desalt rate  can   reach as high as 99%, it is capable of removing over 99% of ions, bacteria's, particles and 98% of organic. It adopts the stainless steel filter membrane.Ozone sterilizer or UV sterilizer is For killing the organism bad to health.Pure water storage tank--Storage the purified water for filling.

capacity:0.5ton-50tons per hour

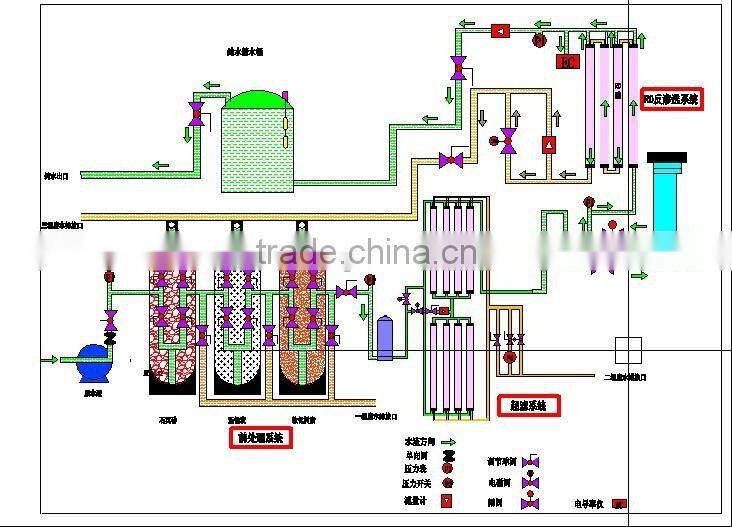

flow chart:

   we can make specialized design according to your water analysis report!

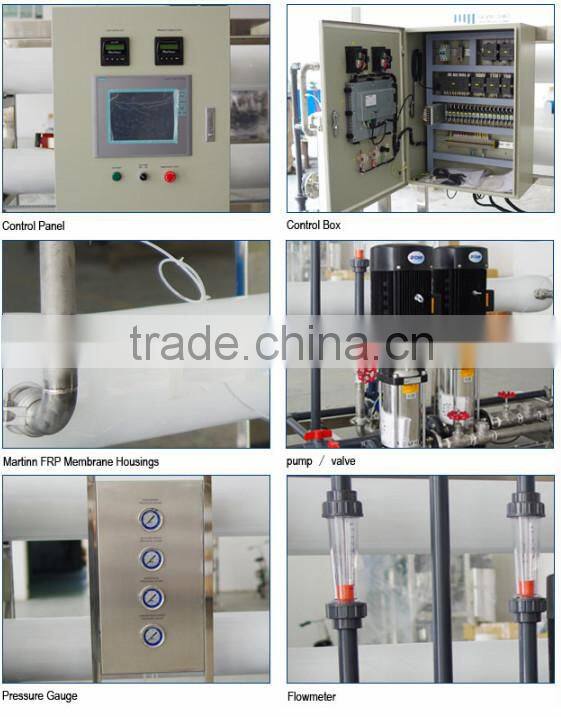

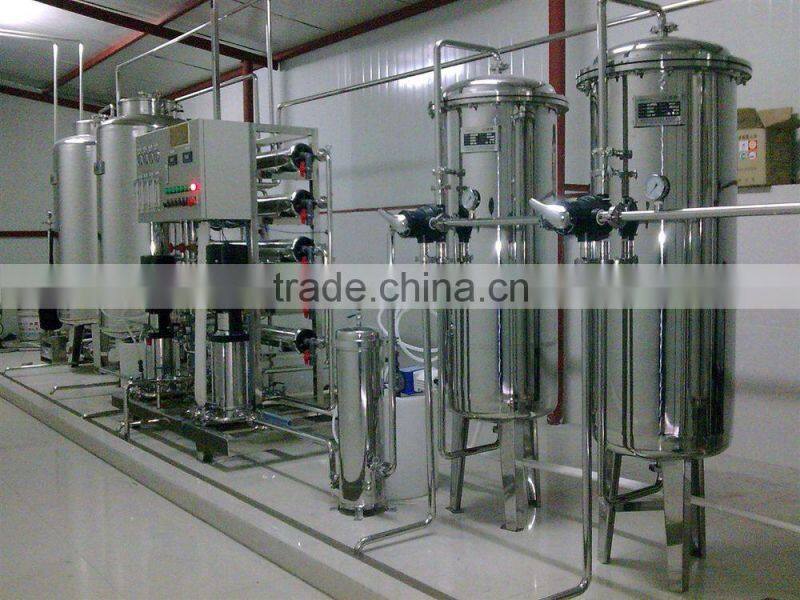

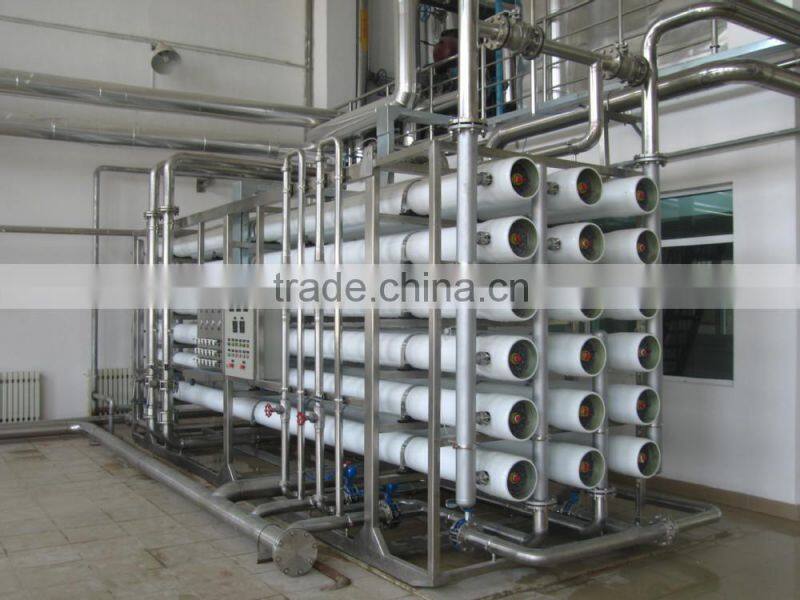

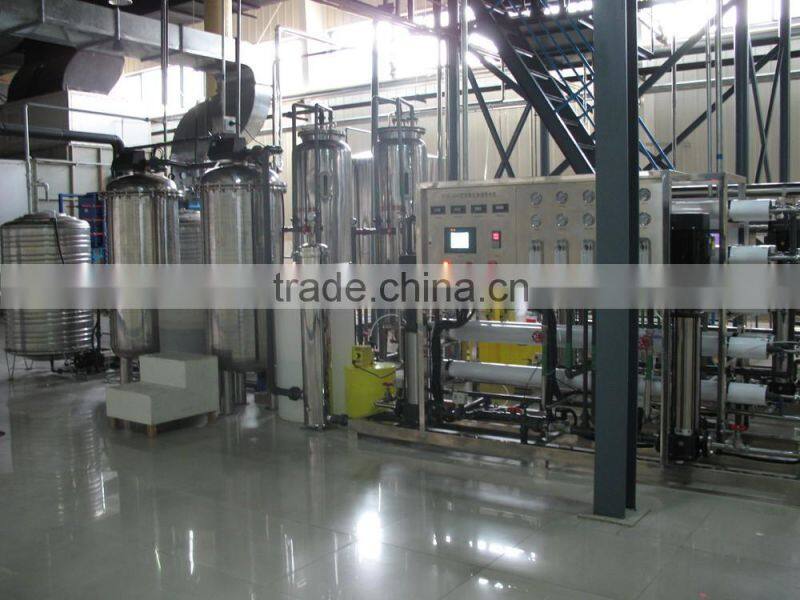

pictures of the machine:
