Full Automatic Mineral/pure Drinking Water Bottle Filling Machine
- shanghai
- T/T Credit Card
You May Like
-
2015 New Design Mineral/pure Water Bottle Filling Machine Quality Choice
-
2015 New Design Mineral Water Bottle Filling Machine
-
2015 New Design Mineral Water Plastic Bottle Filling Machine
-
2015 New Design Mineral Water Bottling Machine
-
Hot Sale Mineral/pure Water Bottling Machine
-
2015 New Design Mineral/pure Drinking Water Bottling Machine
Product Details
| Condition | New | Application | Beverage, Chemical | |
| Packaging Type | Bags, Bottles, Cans | Packaging Material | Plastic, Wood | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 380V 50Hz | Power | 5.5Kw | |
| Place of Origin | Jiangsu, China | Brand Name | MARK | |
| Model Number | CGF | Dimension(L*W*H) | 2200*1800*2100MM | |
| Weight | 5000KG | Certification | ISO,CE,BV | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Automatic mineral/pure bottle drinking water filling machine
PET/glass bottle drinking water filling machine
This Full Automatic Plastic Bottle Water Filling Machine used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery.Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Technical Parameter:
Model | CGF16126 | CGF18186 | CGF24248 | CGF323210 | CGF404012 |
washing, filling and capping heads | 16-12-6 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 |
Production capacity (b/h) | 2000-4000 | 5000-7000 | 8000-12000 | 12000-15000 | 16000-20000 |
suitable bottle specification | φ=50-110=170 330-2250ml | ||||
Washing pressure(kg/cm 2 ) | 2-3 | ||||
Motor power(kw) | 2.2kw | 3kw | 5.5kw | 7.5kw | 11kw |
Overall dimensions(mm) | 2600×1920×2550 | 3100×23002800 | 3800×2800×2900 | 4600×2800×2900 | 5450×3300×2900 |
Weight (kg) | 3000 | 4000 | 6000 | 8000 | 9500 |
PICTURES:

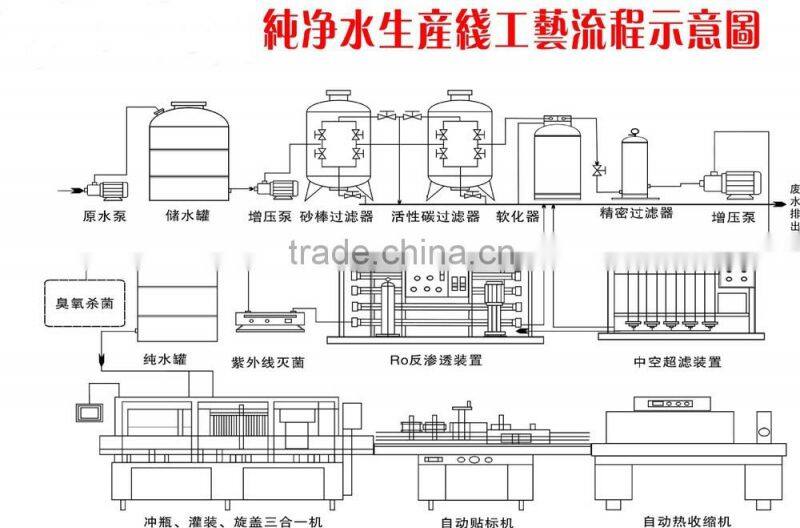

flow chart of bottle water production line:


certification:
1.installation, debug
After equipments reached the workshop of customer, place the equipments according to plane layout we offered. We will arrange seasoned technician for equipments installation, debug and test production at the same time make the equipments reach the rated producing capacity of the line. Time for installation and debug is 15-25 days.
2.training
Our company offer technology training to customer. The content of training is structure and maintenance of equipments, control and operation of equipments. Training is in the workshop of customer. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.Quality guarantee
We promise that our goods are all new and not used. They’re made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
4.After sales
1,After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipments according to seller’s demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.
2,After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipments according to seller’s demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.
welcome to visit us!
