high speed fresh fruit juice filler for wholesales

1. The juice processing line is the concept of the CGF series was specifically designed for filling water or juice in PET bottle.

2. Thanks to the free-standing transfer starwheels, there are much less exterior surfaces on the fillers than on conventional systems. juice processing line

3. This innovative design has also the effect of the machine being very easily accessible for maintenance purposes and that it can be expanded at any time without conversion, for example with an additional cap feeder.

4. The OMRON PLC system offers the ideal solution for conductive non-carbonated fill products, as the fill quantity is measured precisely by an inductive flow meter.

5.  All filling process steps can be programmed easily and individually-adjusted to the product to be filled and to the container.

6. With all variants of the CGF series for non-carbonated products, the containers are conveyed through the machine by means of neck-handling. This, as well as fill quantity determination via inductive flow meter (IDM) guarantee high flexibility and short change-over times;

7. Depending on the pitch circle, a central or a tubular ring bowl is employed.

8. Product feed pipes connect the product tank with the filling valves. In each connecting pipe, there is an inductive flow meter which measures the quantity of the product flowing through the pipes via the product’s conductivity.

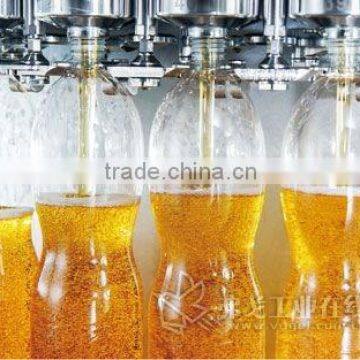

9. The filling process begins after centering of the container and is effected by the free-jet method.

10. In order to be able to cope with the different bottles and products to be filled, one or two filling speeds are available. Non-carbonated beverages are filled pressureless in multi-chamber operation.

11. Once the preprogrammed amount of liquid has flown into the container, a flow meter signal will trigger closing of the valve;

12. The fill parameters and programmes are stored in the controller making quick change-overs via touch-screen.

Parameters

We can provide the turn key project :

- Water treatment equipment
- Blow molding machine

- Unscrambler
- Air conveyor
- Rinsing-filling-capping 3-in-1 monoblock
- Sleeve / OPP labeler
- Air dryer, visual inspection, ink jet printer
- Shrink wrapper / wrap-round case packer
- Palletizer
- Etc.

Pictures of orange juice filling machine

The sample service

we can send you the video of the running machine
you are welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
If we get  the permission of the customer who has brought the machines from us ,we can tell you their contact information,you can go to visit their factory.

Customized service
we can design the machines according your requirements(material ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our  professional suggestion,as you know,we have been in this industry for many years.

After-sales service
we will provide the bill of load on time to make sure you can get the machine quickly
when you finish the Preparation conditions ,our engineer will go to your factory to install the machine , and give you the operating manual ,and train your employee until they can operate the machine well.
we provide one year warranty with spare parts free.
