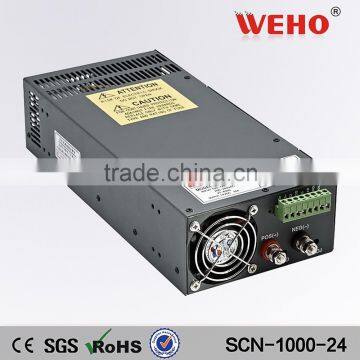

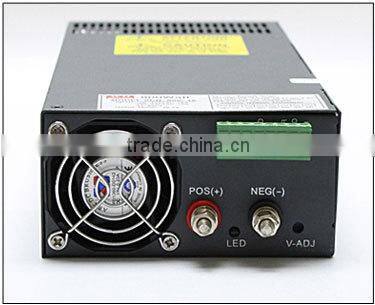

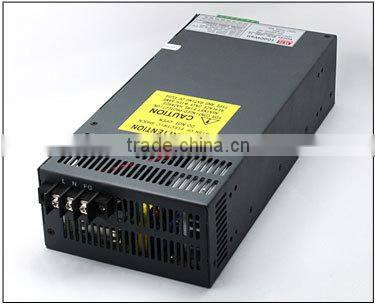

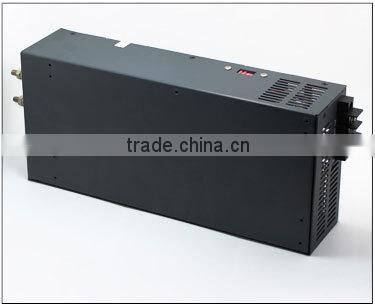

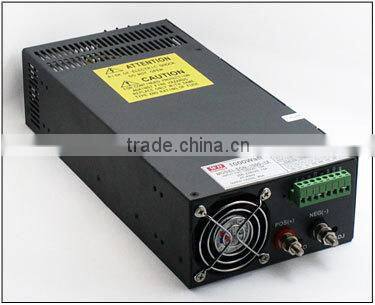

100% test Ac Dc Switching Power Supply 1000w induatrial power supply

Model

Performance

SCN-1000-12

SCN-1000-13.5

SCN-1000-15

SCN-1000-24

SCN-1000-27

SCN-1000-48

DC Output Volta

12V

13.5V

15V

24V

27V

48V

Output voltage tolerance(Note 2)

±1%

±1%

±1%

±1%

±1%

±1%

Rated output current

50A

44A

40A

25A

22A

12.5A

Output current range

0-40A

0-36A

0-32A

0-20A

0-18A

0-10A

Ripple and noise(Note 3)

240mVp-p

240mVp-p

240mVp-p

240mVp-p

200mVp-p

300mVp-p

Inlet stability(Note 4)

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load stability(Note 5)

±1%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

DC output power

600W

600W

600W

600W

600W

600W

Efficiency

84%

84%

83%

85.5%

86.5%

87%

DC voltage adjustable range

10-13.2V

12-15V

13.5-18V

20-26.4V

24-30V

41-56V

Input voltage range

88~132VAC/176~264VAC CHOOSE BY SWITCH 47~63Hz;124~370VDC

Input current

7A/115V 3.5A/230V

Surge Current

0.95/100~240VAC

Leakage Current

18A/115V 36A/230V

Overload protection

<3.5mA/240VAC

over-voltage protection

105%~135% type:FOLDBACK cut off output reset:Automatic recovery

High temperature protection

13.8~16.2V

15.5~18.2V

18~21V

27.6~32.4V

31~36.5V

57.6~67.2V

temperature coefficient

RTH1 OR RTH2>=55°C FAN ON,<=45°C FAN OFF,>=70°C cut off output

Start-up,upper,rentention time

±0.03%°C(0~50°C)

shock resistance

1.5s,50ms,20ms

Withstand

10~500Hz,2G 10min./1circle,time:60min.,axes

Insulation Resistance

Input to Output Isolation:3KVAC,input&shell:1.5KVAC output &shell:0.5KVAC

work Temperature/

humidity

Input to Output Isolation,,input&shell, output &shell:500VDC/100M Ohms

Storage Temperature,temperature

-10°C~+50°C,20%~90%RH

Outline dimension

-20°C~+85°C,10%~95%%RH

Weight

291*132*68mm shell:910

Safety standards

5Kgs

EMC Standard

UL1950,TUV EN60950

Model

Performance

CISPR22(EN55022),IEC1000-42,3,4,5,6,8,11 IEC100-3-2
