Long Span Racking Systems for Warehouse

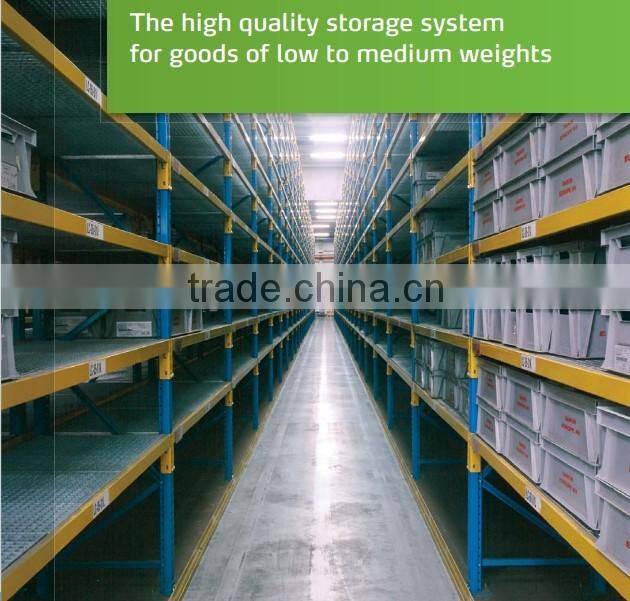

Light to Medium Rack is a wide span storage system, specially designed for storage of medium-weight loads and light pallets.

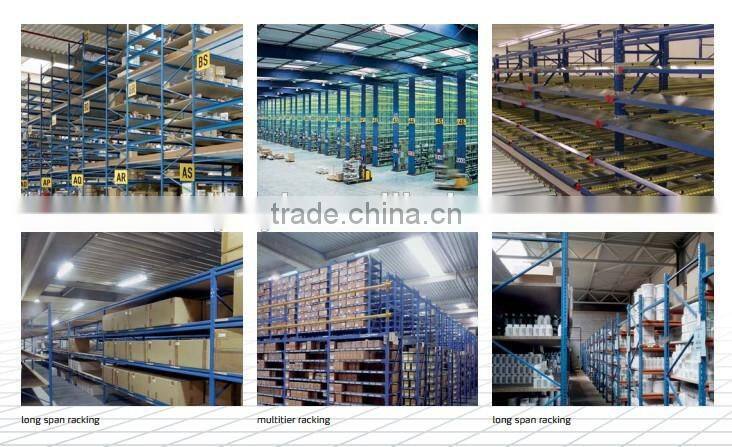

Because of its modular construction and great variety of dimensions and accessories, it lends itself to use in almost any situation: shelving racking, long span racking, multitier and high rise constructions. The system offers the benefits of quick assembly, good stability and low cost. Midi Rack is dedicated to the storage of hand loaded heavy products, such as machinery equipment and tools.

warehouse storage light duty shelving

Clear Benefits for Every Application:

– Complies with CAS, SGS, CE and quality assured to ISO 9001

– Wide range of basic components for storage of all pallet sizes and weights
– Many standard accessories to meet every storage need you can imagine
– Computer aided design ensuring the best solution for every application, including static and            seismic calculations
– All components have been thoroughly tested in specialized laboratories

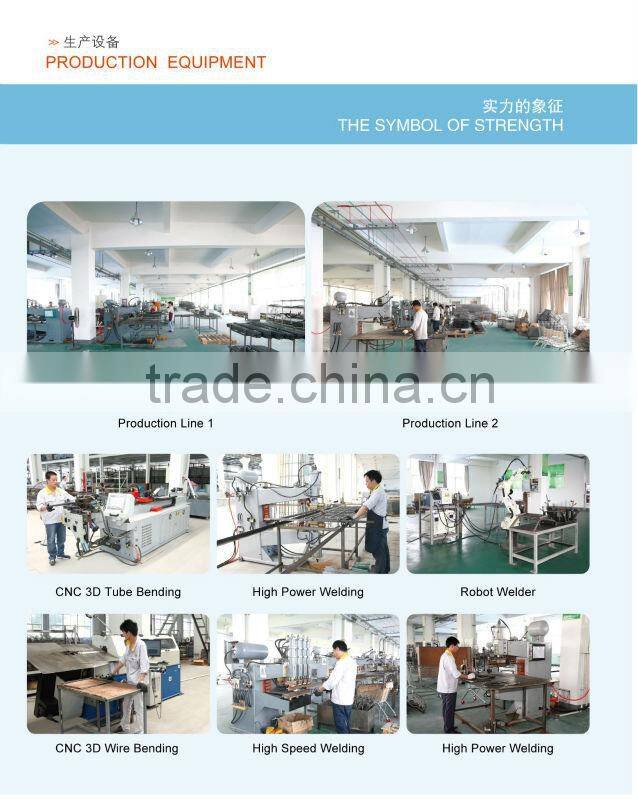

– Fully automated production to a high quality standard and in a very cost-effective way.
– Based on the advanced technology, the storage solution is optimized using derived systems, such as drive in racking, open face racking, mobile racking, live storage systems, etc…

-- Procedure: Moulding+ Acid cleaning/ Sand cleaning+ Phosphating+ Degrease+ Dryness+ Powder coat+ Polymerization

More Specification:

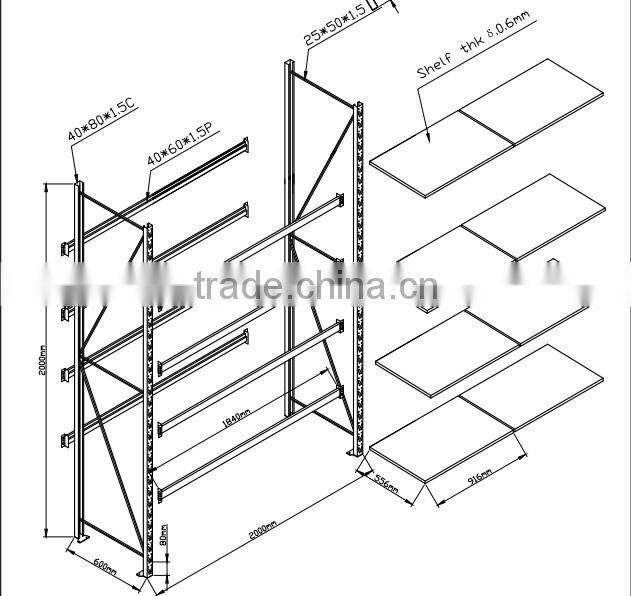

Construction and Configuration:

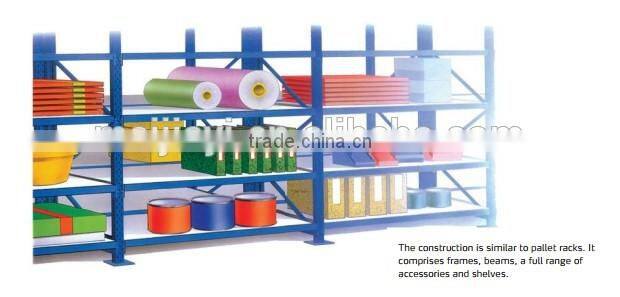

The construction is similar to pallet racks. It comprises frames, beams, a full range of

accessories and shelves.

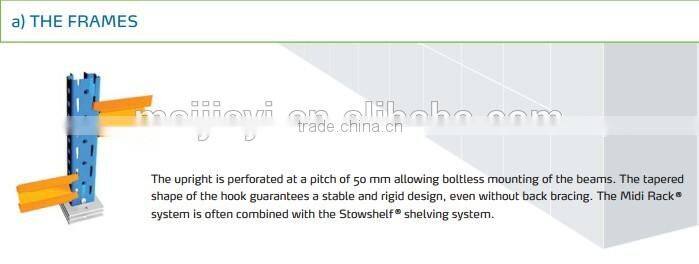

a). Upright/Frame

In clined beam has two type longer,one is used loosely for the upper of the rack,the shorter densely for the lower to improve the bearance and solidity.

1. Polyhedron with thirteen faces.
2. Pitch is 50 mm, beam is adjustable.
3. Triangle hole easily tightens to hitch steel and strengthens the load capacity of posts.

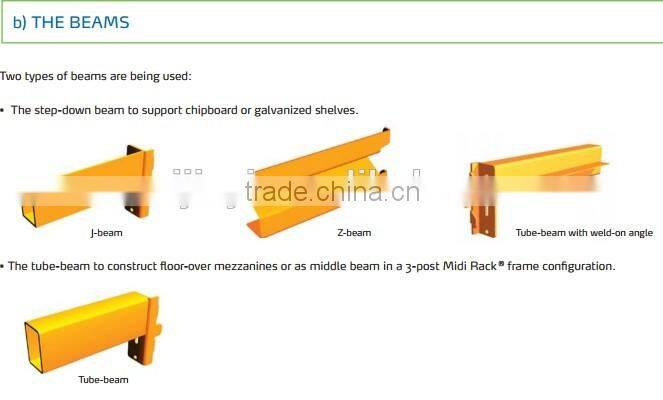

b). Beam Feature

4 holes 11"*2"*5" P shape beam,slotted connection&bolted connection. Beams can be adjusted every 2".

1. Hot rolled steel moulding, bearing evenly.

2.Various specification and load capacity to meet different storage requirements.
3. Beam hitch steel’s teeth are designed to different direction; this not only makes the teeth for increased rigidity.
4. Connection between beams and pillars are performed by safety bolts and clips.
5. Optional accessory is nameplate holder.

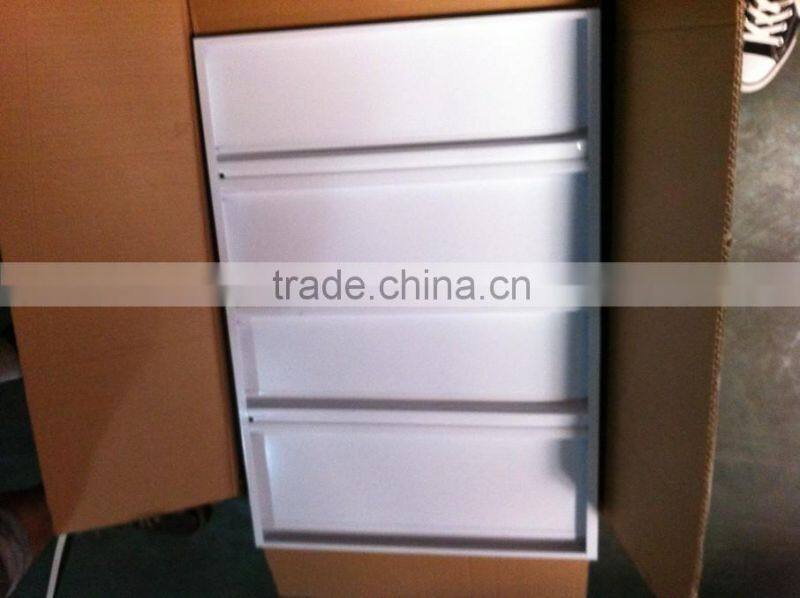

c). Metal shelf, Wood shelf and support bar :The plywood, 20mm thick, is in the salience of knighthead. Each pallet has a pair of knighthead. The steel material: cold rolling steel ,SPCC, DC01, ST12,Q195, the steel thickness ranges from 0.6mm to 1.2mm,

Bracing: the horizontal and diagonal bar on standing colunm is square tube,no C-shaped ,square tube is 30*50 ,30*30.,etc.

Support: Used for placing mesh box and metal container etc. with stacking feet, safe and reliable.

Safety locker:  Locker, bolted,pin  for making racks stability,more strong.

Protector/ barrier: Located at the sides or corners of shelving to be away from impact by forklift.

Pallet stopper: For pallet stop, specially for forklift in top oppration.

Row-spacer :Row-spcaer, to be two lines rack connected.

Please offer us the following details, so we can give you the exact quotation:

1) Size of your warehouse;

2) Full details of size:W*D*H;

3) The quantity bays you need;

4) How many layers/set you want;

5) Loading capacity of each layer;

6) RAL color you require;

7) Drawing (if available).
