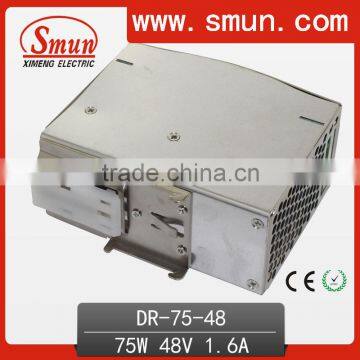

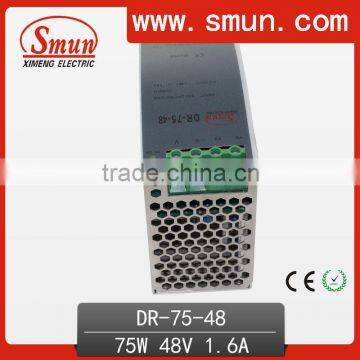

75W 48V 1.6A Din Rail Switched Power Supply DR-75-48
- ningbo/shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
75W 24V Dinrail Switch Mode Power Supply SMPS DR-75-24
-
120W 12V Din Rail Switching Power Supply(DR-120-12)
-
120W 12V LED Switching Power Supply DR-120-12 Quality Choice
-
120W 12V 10A Switch LED Power Supply AC/DC Din Rail Installation
-
120W Smun Din Rail 24VDC Power Supply(DR-120-24)
-
120W 48V AC/DC Switch Din Rail Power Supply DR-120-48
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SMUN | |
| Model Number | DR-75-48 | Output Power | Other, 75W | |
| Output Type | Single | Input Voltage | Other, 85~264VAC | |
| Output Voltage | 48V | Output Frequency | 47~63Hz | |
| Output Current | 0-1.6A |
Product Description
75W 48V 1.6A Din Rail Switched Power Supply DR-75-48
· 1. Universal AC input/Full range
· 2. Small Volume,low weight,high efficiency
· 3. Protections:Short circuit/over load/over voltage/over temp
· 4. Cooling by free air convection
· 5. Can be installed on DIN RAIL:TS-35/7.5 or TS-35/15
· 6. 100% full load burn-in test
· 7. 2 years warranty
| Model | DR-75-12 | DR-75-24 | DR-75-48 | |
| Output | DC output Voltage | 12V | 24V | 48V |
| Voltage tolerance | ±1.0% | ±1.0% | ±1.0% | |
| Rated Current | 6.3A | 3.2A | 1.6A | |
| Related Power | 75w | 75w | 75w | |
| Wave&Noise | 100mVp-p | 150mVp-p | 240mVp-p | |
| Adjustable range for DC Voltage | ±10% | ±10% | ±10% | |
| Set up,rise,hold up time | 800ms 600ms 50ms | |||
| Input | Voltage Range | 85 ~ 264VAC 47-63HZ 120-370VDC | ||
| Input Current | 4A/115VAC 0.5A/230VAC | |||
| Efficiency | 77% | 77% | 82% | |
| AC inrush current | Cold start current 15A/115V 30A /230VAC | |||
| Leakage current | <0.5mA/240VAC | |||
| Protection | Overload | Related output power 105-135% start overload protection | ||
| Protection type: cutoff output, recovery after restart power | ||||
| Over voltage | 13.8V-16.2V | 27.6V-32.4V | 55.2V-64.8V | |
| Hiccup mode,recovers automatically after fault condition | ||||
| Environment | Working temp humidity | -10~+60°C 20%~90%RH | ||
| Stor temp, humidity | -20~+85°C 20%~90%RH Non-condensing | |||
| Safety | Withstand voltage | I/P-O/P:1.5KVAC 1min | ||
| I/P-FG:1.5KVAC 1min | ||||
| O/P-FG:0.5KVAC 1min | ||||
| Standard | Safety standard | Fit UL1012 | ||
| Refer | Design refer to GB4943,UL60950,EN60950 | |||
| EMC standard | Design refer to GB9254,EN55022 Class A | |||
| Size | size | L100*W56*H125mm | ||
| Package | 0.55kg, 40 pcs/22kg | |||
1.Your email will be replied with 24 hours
2.All qustions will be answered by our power supply engineer.
3.We have strictly management on the production and quality control.
4.We are real factory and have professional engineer team,can provide cust service.
>More than 500 pieces,can print logo on the products.
>More than 2000 pieces,can customize the package.
5.We have independent IMP&EMP rights.
6.Sample available.
7.Warranty Clarify:
>Products found to be defective within 30 days from the date of receipt can be returned for credit or exchange.After the initial 30 days,XIMENG will repair the goods according to our warranty period.
>We will send a new one to you if product can't work as quality problem in first year after comfirmation.
>If customers do the repair by themselves,XIMENG can provide reasonable quantity free components for repair purpose.
8.Shipping methods:By sea,by air,by express.
9.Customized accepted.
>Power:15W,25W,35W,50W,60W,75W,100W,120W,145W,150W,180W,200W,201W,250W,320W,350W,400W,500W,600W,800W,1000W,1200W,1500W,3000W.
>Output voltage:5V,9V,12V,15V,24V,36V,48V.
>Frequency:47-63Hz
