Home > Products > DR-DinRail Mount Switching Power Supply > 45W 15V 3A Din Rail Power Supply DR-45-15 With CE RoHS

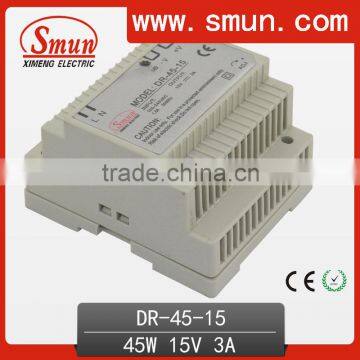

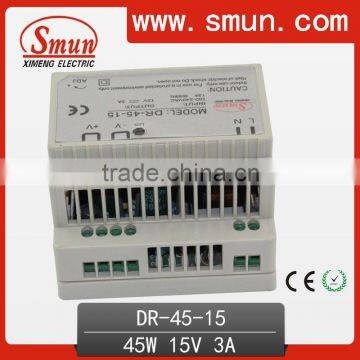

45W 15V 3A Din Rail Power Supply DR-45-15 With CE RoHS

FOB Price

USD $1 - $10 / Piece

100 Pieces(Min.Order)

Supply Ability 50000 Piece / Pieces per Month
Port Ningbo Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	Smun
Model Number	DR-45-15	Output Power	Other, 45W
Output Type	Single	Input Voltage	Other, 85~264VAC
Output Voltage	15V	Output Frequency	47-63HZ
Output Current	3A

Product Description

45W 15V 3A Din Rail Power Supply DR-45-15 With CE RoHS

Welcome

Instruction

Features

· 1. Universal AC input/Full range

· 2. Small Volume,low weight,high efficiency

· 3. Protections:Short circuit/over load/over voltage/over temp

· 4. Cooling by free air convection
· 5. Can be installed on DIN RAIL:TS-35/7.5 or TS-35/15

· 6. 100% full load burn-in test

· 7. 2 years warranty

Product Description

MODEL		DR-45-5	DR-45-12	DR-45-15	DR-45-24
OUTPUT	DC VOLTAGE	5V	12V	15V	24V
	RATED CURRENT	5A	3.5A	2.8A	2A
	RATED POWER	25W	42W	42W	48W
	RIPPLE&NOISE	100mVp-p	200mVp-p	240mVp-p	480mVp-p
	VOLTAGE ADJ.RANGE	4.75-5.5V	10.8-13.2V	13.5-16.5V	21.6-26.4V
	VOLTAGE TOLERANCE	±2.0%	±1.0%	±1.0%	±1.0%
	LINE REGULATION	±0.5%	±0.5%	±0.5%	±0.5%
	LOAD REGULATION	±1.0%	±0.5%	±0.5%	±0.5%
	SETUP,RISE TIME	100ms,30ms/230VAC 100ms,30ms/115VAC at full load
	HOLD UP TIME(TYP.)	90ms/230VAC 12ms/115VAC at full load
INPUT	VOLTAGE RANGE	85-264VAC 120-370VDC
	FREQUENCY RANGE	47-63HZ
	EFFICIENCY(Typ.)	72%	77%	77%	80%
	AC CURRENT(Typ.)	1.5A/115VAC 0.75A/230VAC
	INRUSH CURRENT	COLD START 30A/115VAC 60A/230VAC
PROTECTION	OVERLOAD	105-150% RATED OUTPUT POWER
	OVERLOAD	Protection type:Hiccup mode,recovers automatically after fault condition
	OVER VOLTAGE	5.75V-6.75V	13.8V-16.2V	17.2V-20.25V	27.6V-32.4V
	OVER VOLTAGE	Protection type:Hiccup mode,recovers automatically after fault condition
ENVIRONMENT	WORKING TEMP	-10~+60°C
	WORKING HUMIDITY	20-90%RH non-condesing
	STORAGE TEMP,HUMIDITY	-20~+85°C,10-95%RH
	TEMP.COEFFICIENT	±0.03%°C(0-50°C)
	VIBRATION	10-500HZ
SAFETY&EMC	SAFETY STANDARD	CE RoHS
	WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute
	ISOLATION RESISTANCE	I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25°C/70%RH
	EMI CONDUCTION&RADIATION	Design refer to GB4943,UL60950,EN60950
	EMC STANDARD	Design refer to GB9254,EN55022 Class A
	DIMENSION	L93W78H67mm
	PACKING	0.31kg,48pcs/16.1kg

Inner Structure

Certifications

Our Services

1.Your email will be replied with 24 hours

2.All qustions will be answered by our power supply engineer.

3.We have strictly management on the production and quality control.

4.We are real factory and have professional engineer team,can provide cust service.

>More than 500 pieces,can print logo on the products.

>More than 2000 pieces,can customize the package.

5.We have independent IMP&EMP rights.

6.Sample available.

7.Warranty Clarify:

>Products found to be defective within 30 days from the date of receipt can be returned for credit or exchange.After the initial 30 days,XIMENG will repair the goods according to our warranty period.

>We will send a new one to you if product can't work as quality problem in first year after comfirmation.

>If customers do the repair by themselves,XIMENG can provide reasonable quantity free components for repair purpose.

8.Shipping methods:By sea,by air,by express.

9.Customized accepted.

>Power:15W,25W,35W,50W,60W,75W,100W,120W,145W,150W,180W,200W,201W,250W,320W,350W,400W,500W,600W,800W,1000W,1200W,1500W,3000W.

>Output voltage:5V,9V,12V,15V,24V,36V,48V.

>Frequency:47-63Hz
