Customized Factory Price Rubber Mould
Negotiable
/ Set
1 Set(Min. Order)
- tianjin
- T/T
You May Like
-
Professional Waste Tyre Recycling Machines
-
High Efficiency Fully Automatic Operation Rubber Machine Brick
-
High Efficiency Rubber Cutting Recycling Crusher
-
Good Quality Automatic Rubber Tyre Shredding Equipment Quality Choice
-
High Efficiency Factory Price Environmental Tire Cutter Machine
-
Durable Using Low Price Cutter Machine
Product Details
| Condition | New | Place of Origin | Hebei, China | |
| Brand Name | JINGDONG | Model Number | rubber mould | |
| Voltage | 200-440V | Power(W) | 23KW(each heating plate:4KW*5F. driver:3KW) | |
| Dimension(L*W*H) | (L*W*H) 1700*660*2000mm | Weight | 2600KG | |
| Certification | CE,BV,ISO9001 | Warranty | one year | |
| After-sales Service Provided | No overseas service provided |
Product Description
The mould samples
| 1.Detailed parameters |
| Total pressure: | 0.50MN |
| Plate size: | 550x550x45mm |
| Plate clearance: | 150mm |
| Plate pressure: | 1.65Mpa |
| Piston stroke: | 400mm |
| Heating: | Electricity or steam or hot oil |
| Machine structure: | Column type |
| Weight: | 2600KG |
| Machine size: | (L*W*H) 1700*660*2000mm |
| Plate temperature(max): | ≤200 |
| Machine power: | 23KW(each heating plate:4KW*5F. driver:3KW) |
| Plunger stroke: | 450mm |
| Diam plunger: | 200mm |
| Working layer: | 4 layers |
| Layer distance: | 150~180mm |
| Construction: | Four columniation. Mainframe, crossbeam and oil box jointing together. |

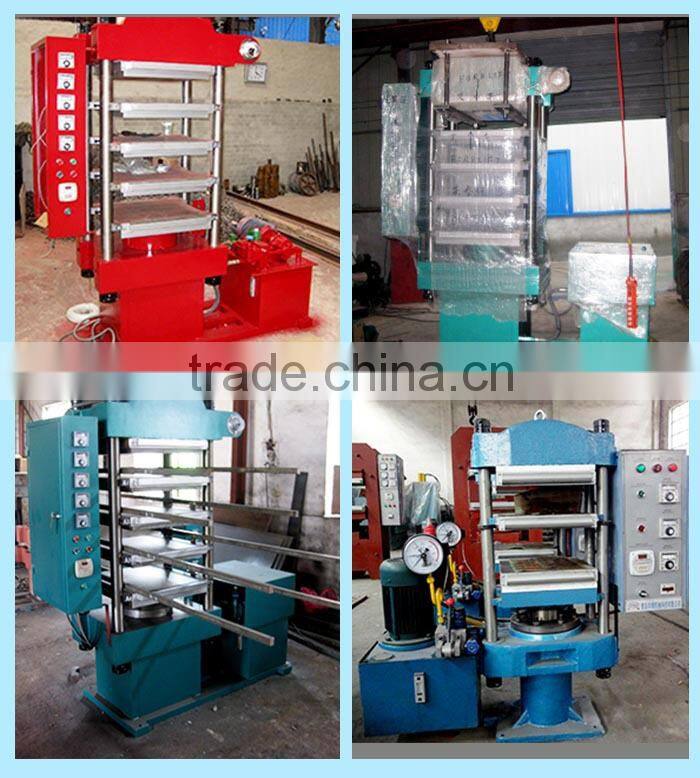

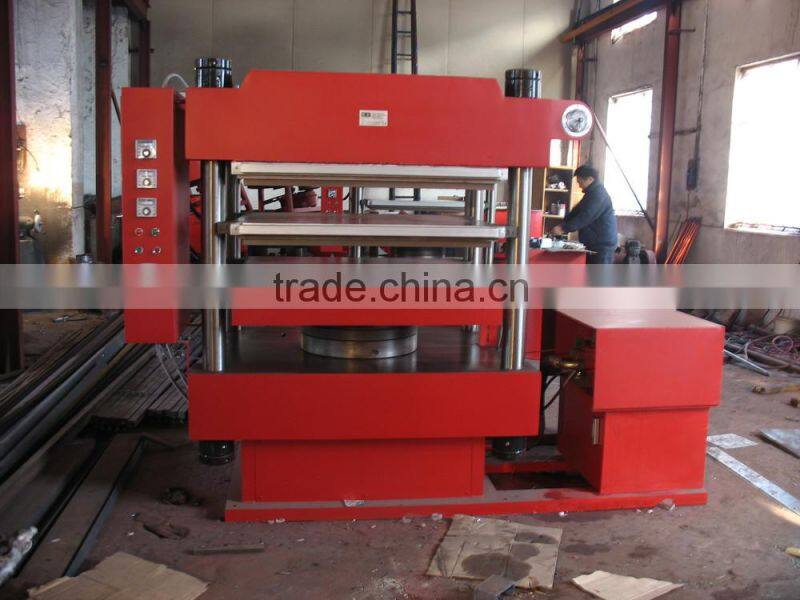

| 2.Descriptions of rubber tile machine |
The machine are maily used to produce rubber tiles, it is convenient to operate, and to
increase the production capacity. (press, plate vulcanizer, rubber tile press)
Temperature control:
heated by electronic resistance. Each heating plate fix a electronic self-regulation instrument.
Temperature should be show and controled by instrument.

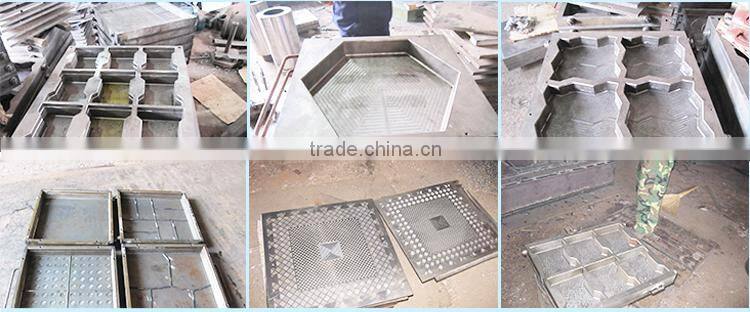

Mold:
4 sets of square mold (use to manufacture 500*500mm rubber mat with thickness 15-25mm or
35-50mm) and 4 pcs of under-mold(loading material for preparation).
Machine control:
two workers control by both side of machine. After loading material in mold, machine finish all
process. including auto-releasing air, auto-holding pressure. Follow up pressure, auto-holding
temperature. auto-demoulding.
| 2.Related Stuff |

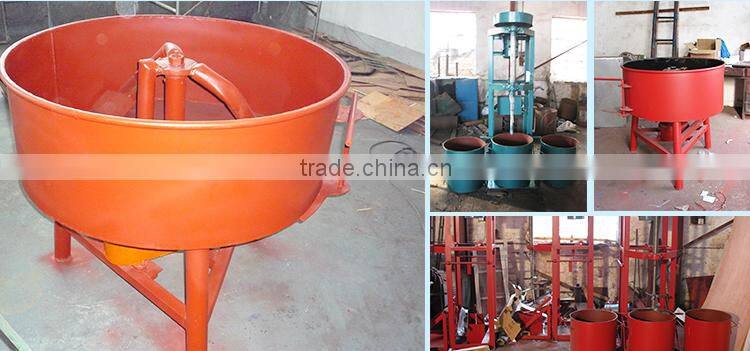

Agitator

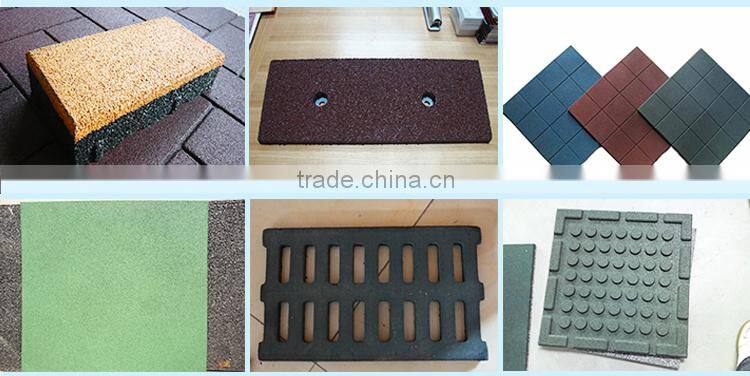

Rubber Tile Products
| 3.More Pcitures |
| 4.Our Other Products |
Food Grade Silicone Sponge Add Cloth
Cow Stable Sbr Natural Anti-slip

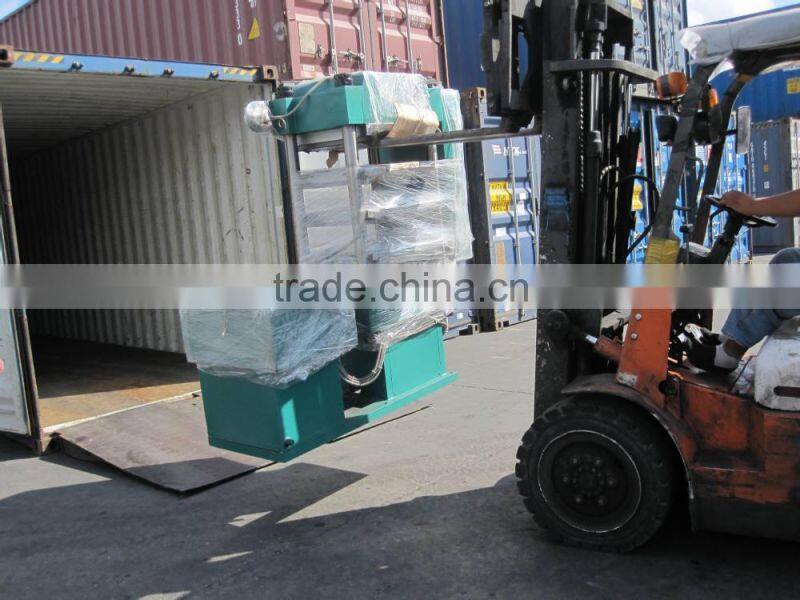

| 5. Packing And Transport |
| Port | Tianjin Xingang |
| Payment | L/C , T/T |
| Normal Package | Plastic bag & Wooden Pallets or according to clients requests. |
| Delivery Time | Winthin 20days |
