Home > Products > Rubber Hose > Three Layer Steel Wire Braid Rubber Hose/2015 New Rubber Hose
Three Layer Steel Wire Braid Rubber Hose/2015 New Rubber Hose
Negotiable
/ Meter
5000 Meters(Min. Order)
- tianjin
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | jingdong | |
| Model Number | 1164 |
Product Description

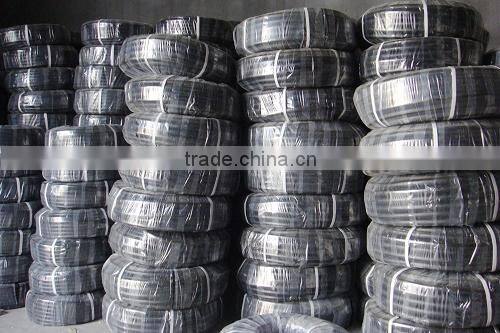

Three Layer Steel Wire Braid Rubber Hose
APPLICATIONS
The hose is suitable to carry hydraulic fluids, such as glycol, mineral oils, lubricants, fuels, emulsion and so on.
CHARACTERISTICS
The hose consists of an inner tube of oil synthetic rubber, three wire braid reinforcement, and an oil and weather resistant synthetic rubber cover.
WORKING TEMPERATURE
Performance data is based upon use between -40-100.
Hose size | Inside Diameter mm | Reinforcement Diameter mm | Outside Diameter mm | Working Pressure Mpa | Proof Pressure Mpa | Burst Pressure Mpa | Min.Bend Radius mm | |||
MPA | Psi | Mpa | Psi | MPa | Psi | |||||
3-5-72 | 5±0.5 | 13.2±0.6 | 17±0.8 | 72 | 10433 | 108 | 15649 | 180 | 26082 | 120 |
3-6-68 | 6±0.5 | 15.0±0.6 | 19±1.0 | 68 | 9853 | 102 | 14780 | 170 | 24633 | 140 |
3-8-54 | 8±0.5 | 17.5±0.6 | 22±1.0 | 54 | 7825 | 81 | 11737 | 120 | 17388 | 160 |
3-10-44 | 10±0.5 | 19.5±0.6 | 24±1.0 | 44 | 6376 | 66 | 9563 | 110 | 15939 | 180 |
3-13-32 | 13±0.5 | 23.5±0.8 | 28±1.2 | 32 | 4637 | 48 | 6955 | 96 | 13910 | 240 |
3-16-23 | 16±0.5 | 26.5±0.8 | 31±1.2 | 23 | 3333 | 34.5 | 4999 | 69 | 9998 | 300 |
3-19-20 | 19±0.5 | 29.5±0.8 | 34±1.2 | 20 | 2898 | 30 | 4347 | 60 | 8694 | 330 |
3-22-18 | 22±0.5 | 32.5±0.8 | 31±1.2 | 18 | 2608 | 27 | 3912 | 54 | 7825 | 380 |
3-25-16 | 25±0.5 | 36.0±0.8 | 41±1.0 | 16 | 2318 | 24 | 3478 | 48 | 6955 | 400 |
3-32-13 | 32±0.5 | 43.0±0.8 | 48±1.2 | 13 | 1884 | 19.5 | 2826 | 39 | 5651 | 450 |
