2015 New Product/Interlocking PP Sports Court/PP Skating Venue

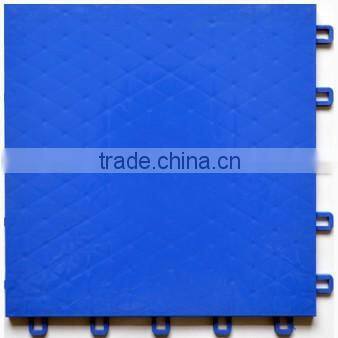

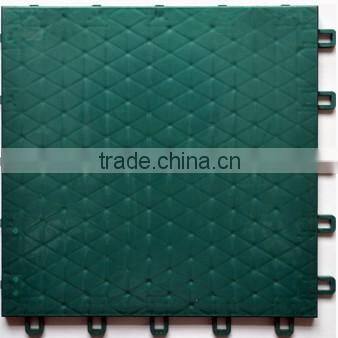

Interlocking PP Sport Court

Color full thickness. Excellent UV stability;
Modular design permits court portability;

Brand: jingdong

Model: JDC

Name: Mini square format assembled floor / no deceleration edge

Size: 250* 250 * 12.7mm

Life span: 10 years

Material: polypropylene (PP)

Surface morphology: Mini box

Operating temperature: -40 ℃ --80 ℃

Color:

Advantages:

A good sport and protection performance;

2, assembly design, easy installation and removal;

3, single chip to replace damaged, does not affect use;

4, rapid drainage, all-weather use;

5,100% recyclable, non-polluting, safe food grade material, non-toxic, tasteless, no heavy metals;

6,10 years long service life;

7, various colors, color can be set according to customer needs.

Accessories, installation tools and methods

Related accessories assembled flooring installation

      Marking paint, thinner, textured paper, brush;

First, site preparation

       Basics: available on the basis of solid, level foundation. Within three meters straightedge range error of not more than 5 mm.

      1, first floor cleaned before installation.

      2, the installation press site to locate a good line width bomb floor installation location (elastic line suggested talc, try not to use ink).

Second, the floor and the floor edge structure

Third, the bulk flooring installation

1, the starting point for the installation space left corner, left corner of the floor space as the apex angle A (as shown).

2, turn left to the right, the floor pin and clasp alignment, fixed fastened with a rubber mallet percussion (as shown).

3, floor side installation method

      Side installation of the floor (note the direction of the floor and place the edge of the floor, the floor and the ears of the floor with a portion of the pin is connected to the side, some with one ear on the floor with a hole edge connected), the buckle side of the floor and floor with a rubber hammer pins are connected (as shown).

4, install the four corners of the floor

5, Installation Considerations

      When installing floor pins and buckles must be aligned to avoid damage to the floor
