Home > Products > JG IBC Bin Blender Series > HTD Series Pharmaceutical Single Column Post Bin blender
HTD Series Pharmaceutical Single Column Post Bin blender
Negotiable
/ Piece
1 Piece(Min.Order)
- 100 Piece / Pieces per Month
- T/T
You May Like
Product Details
Place of Origin | Chongqing, China | Brand Name | JINGGONG | |
Model Number | HTD | Application | Other, mixing and blending | |
Type | Mixing Machine | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications

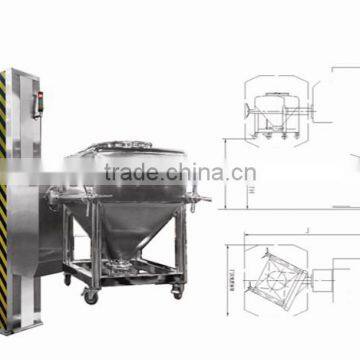

Single column hopper lifting blender an elevating type rotary mixer consists of machine base, rotary frame, driving system, elevBrief Introduction
Single column hopper lifting blender an elevating type rotary mixer consists of machine base, rotary frame, driving system, elevating system, braking system and PLC control system. It can automatically fulfill clamping, elevating and rotating. It’s the desirable final mixing equipment for pharmaceutical factories, much more chemical industry, raw medical material industry, foodstuff industry, etc.
Single column hopper lifting blender an elevating type rotary mixer consists of machine base, rotary frame, driving system, elevating system, braking system and PLC control system. It can automatically fulfill clamping, elevating and rotating. It’s the desirable final mixing equipment for pharmaceutical factories, much more chemical industry, raw medical material industry, foodstuff industry, etc.
Achieve the divided working procedure with the special lifter. Increase the space area and rise the recycle working intensity, also have higher cost.
Principle
Single column Bin blender has remarkable working principle, as the bin is lifted to the required height and clamped. The driving system starts to work and mix according to time and speed assigned in advance after the pressure sensors receive signal of tightly clamped. Reaching to the parameters assigned in advance, the rotary frame stops vertically. The mixing craft is over. The lifting system then works accordingly to lay down the bin. The printer types the entire craft data automatically and reliable. The working cycle finishes.
Features
1. The mining co efficiency reaches to 99%, and charging coefficient ranges from 50% to 80%
2. Applying infrared appliances to gain an isolated working area, and butterfly valve against wrong way operation, controlled by PLC control system.
3. It can clamp bins of different model and volume, so it adapts to the mixing demands of large output and diversity products.
4. This machine is easy and quickly to operate. All operations were simplified in an automatic operation process.
5. It could save space, and it is light than original mixer, thus fit for building floor installation.
5. It could save space, and it is light than original mixer, thus fit for building floor installation.
6. it’s equipped with safeguard system to ensure the center of gravity always balanced within the safety range. Thus it always works stably and reliably without vibration.
6. Mixing extent is large, which improves the motion of material inside bin and avoids material separation, enhancing mixing uniformity.
6. Mixing extent is large, which improves the motion of material inside bin and avoids material separation, enhancing mixing uniformity.
7. It has lifting function. After mixing procedure, it could discharge material in place thus saving the transfer procedures and reduce the working strength.
8. It can work with weighting system according to the requirements of clients. This system could be connected with PLC.
8. It can work with weighting system according to the requirements of clients. This system could be connected with PLC.
9. Control the material discharging uniform automatically, easy to control and calculate the batch of transportation.
10. Automatic pneumatic discharge control which avoid the operator to climber with un-safety.
11. Separated control cabinet which avoid any hurt of the workers.
12. Double layers skirts type discharging device with no powder leakage, and confirms to GMP requirements.
