200 Crawler mounted reverse circulation drilling rig
- Shanghai Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
KQZ200D portable water well drilling machine Quality Choice
-
portable water well drilling equipment KQZ150D used water drilling for sale
-
KQZ150D water well rig drilling machine portable
-
200m trailer used water well drilling machine for sale
-
SKWW300 air DTH water well drilling rig water drilling machine
-
Hot selling water hole drilling machines SKWW200
Product Details
Condition | New | Type | Rotary Drilling Rig | |
Power Type | Electric | Place of Origin | Hubei, China | |
Brand Name | Shoukai | Model Number | RC Crawler 200 | |
Usage | Water Well | Voltage | 380V/60HZ | |
Power(W) | 22kw; 50 KW generator set | Dimension(L*W*H) | 6500 * 2400 * 6500 mm | |
Weight | 7.5T | Certification | ISO9001:2008 | |
Warranty | 6-month | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
reverse circulation drilling rig
Model | Crawler 200 RC machine |
Application | water well drilling, engineering pile |
Drill depth | 10-150 m |
Drill diameter | 350-2500 mm |
Drill rod | 168 * 2000 mm |
Rotation speed | 10 rpm |
Winch Max. Pull force | 20 KN |
Hook hoisting capacity | 80 KN |
Drill tower height | 6000 mm |
bearing weight | 20 t |
Oil pump | E532 |
Delivery capacity | 32 ml/r |
rated speed | 1400 RPM |
rated pressure | 25 Mpa |
Mud pump | 280 |
Lift | 12 M |
Suction | 7.5 M |
Speed | 906 turn |
Power | 22 kw |
Power | 50 KW generator set |
rotate speed | 1500 RPM |
Machine weight | 7.5 T |
Working size | 6500 * 2400 * 6500 mm |
Transport size | 6800 * 1900 * 2700 mm |

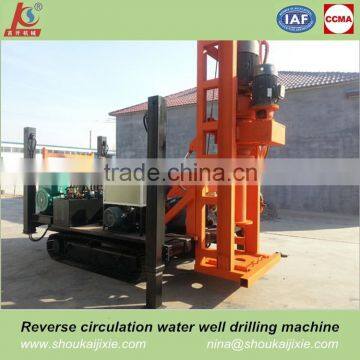

Pictures of reverse circulation drilling rig:
Shoukai reverse circulation drilling rig working at the site:
Shoukai drilling machines have been delivered to North America, South Africa, Middle East and the Southeast Asia for several years.
We've owned good reputation from long-time customers both in domestic and abroad.
So we hope to establish good cooperation with more and more friends all over the world. We treat every customers as friends, so the best thing we wish is hearing you've received our machines well and are using our machines well.
We appreciate all your feedbacks. Thank you!
Every time, we'll take pictures before we delivery the machines for you, as the above pictures. Hope every friends see the machine status before sea shipping.
Our sales network is all over the country, with more than 400 sales distributors and shops, so as to offer customers best pre-sales and after-sales service.
Any question, please feel free to contact us.
We'll try our best to offer you best information at the first time we receive your emails.
Warmly welcome dear friends to visit our factory, we hope to offer you best services.
Hubei Shoukai Machinery Co., Ltd. is one of the biggest drilling rig manufacturer in China. Established in 2004, located in Huangjinshan Industrial Park, covering an area of over 40,000 square meters, our company specialized in R&D, manufacturing and marketing drilling rigs. We now have more than 300 varieties of six categories, with an annual production capacity of more than 10,000 sets. "Shoukai" brand down-the-hole drilling rigs series, anchoring drilling rig series, crawler DTH drilling carriage series, pneumatic motor series, water well drilling rig series and core drilling rig series are widely applied to water conservancy, mining, quarrying, photovoltaic pile, anti-floating, city foundation piles, transportation, construction, shipbuilding and other projects. Our sales network is all over the country, with more than 400 sales distributors and shops, so as to offer customers best pre-sales and after-sales service. Our product features light weight, fast speed, safe, reliable, simple structure and easy to use, exported to South Africa, North America, the Middle East and Southeast Asia, gain high praise both in China and abroad.
Why to choose us?
1. Our annual output 10000 sets fully meet customers' requirements.
2. We are the member of CCMA (China Construction Machinery Association).
3. We gained the title of National High and New Technology Enterprise by The Government.
4. Our Products has obtained ISO9001:2008 management system certification
5. We focus on development and earn several Utility Model Patent Certificates.
6. We are always try best to answer your pre-sales and after sales questions.
Welcome dear customers choose our Shoukai drilling machinery, we hope to offer you best service and establish a good cooperation with friends all over the world!
The best thing we wish is hearing dear customers using our machines well.
Very appreciate if you could send our machines working at the site, as the above pictures. Thank you!
If there's any question about our machines, please feel free to send us emails any time.
