Home > Products > Roll forming machine > Glazed Tile Roll Forming Machine, Corrugated Sheet Roll Forming Machine Price Quality Choice

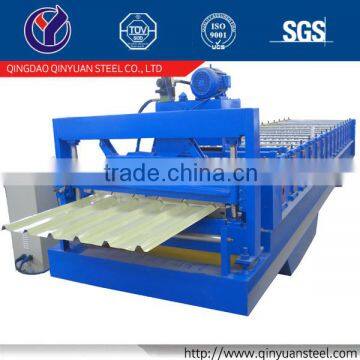

Glazed Tile Roll Forming Machine, Corrugated Sheet Roll Forming Machine Price Quality Choice
- 5 Set / Sets per Month
- Qingdao or Requirement
- T/T
You May Like
-
new design full automatic tile making machine with steel sheet
-
High Quality Low Price automatic color steel roof tile making machine Quality Choice
-
Automatic Corrugated Metal Roof Panle Roll Forming Machine, Sheet Metal Roof Making Machine
-
Qinyuan roofing sheet making machine,roof tile roll forming machine Quality Choice
-
Double Layer Roll Forming Machine, Roll Forming Machine Prices Quality Choice
-
Automatic Corrugated Sheet Forming Machine, Roofing Tile Making Machine Quality Choice
Product Details
Condition | New | Type | Tile Forming Machine | |
Tile Type | Colored Steel | Use | Roof | |
Production Capacity | 8-12m/min | Place of Origin | China | |
Brand Name | Qinyuan | Model Number | Roll Forming Machine | |
Power(W) | 7.5 Kw | Voltage | 380V 50Hz 3phases | |
Dimension(L*W*H) | 9500mm*1600mm*1600mm | Weight | 6500kg | |
Certification | CE/ISO9001 | Warranty | 1 Year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Glazed Tile Roll Forming Machine, Corrugated Sheet Roll Forming Machine Price
The Video Of Our Machine
Processing technique and deployment:
Man-made uncoiler—Roll forming machine—PLC system—Hydraulic system-Blade—Receiving table
Specification:
Technique parameters of the processing line | |||||
(a). Suitable material to process:carbon steel,normal sheet G245 | |||||
(b). Thickness of the raw material: 0.18mm -0.7mm; | |||||
(c). Width of the raw material: 1200mm; | |||||
(d). Effective width of finished product: 1000mm; | |||||
(e). Rollers: 18stations, Speed:8-12m/min | |||||
(f). Diameter of the shaft: 85mm; | |||||
(g). Roller material: 45#steel | |||||
(h). Main motor power: 7.5KW+Hydraulic cutting power 4kw | |||||
(i). Panasonic PLC control system,other parts are all Taida brand | |||||
(j). Electric: 3 phase/380V/50HZ; | |||||
(k).machine frame is solid steel frame ,not accept hollow pipes, the same with shaft,solid steel | |||||
(l). Machine color: as per customers' requirements; | |||||
(m). Machine size: about 9500mm*1600mm*1600mm; weight:about 6500kg |
Accessories For Roll Forming Machine:
1.Man-made uncoiler
2.Main machine for roll forming
3.Control system
4.Hydraulic system
5.Blade
6.3m manual Receiving table
Decoiler
PLC
Product show
Our Services
1. Warranty :One year,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 45days after deposit receipt your payment
3. Guarantee period: 18months free service/ pay service all the machine life
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine
and also train your workers/technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things
FAQ
Q:What kind of work does your company do?
A:Our company is a professional manufacturer.We mainly dealing with many kinds of quilting machine,bobbin winder machine,mattress tape edge machine, cutting machine,quilting embroidery machine etc.
Q:What are the advantages of your company?
A: We have many professional technical personnel.And we have more competitive prices,high quality and better service than trading companies.
Q:How do you control the quality?
A:Our company is CE certificated .We have many inspectors and every product will have been tested for 4-5 processes.We welcome customers visit to our factory.
Q:What about your price?
A:Our price is very competitive because we are a factory.Please contact us if you are interested in our products.
Q:How long is your delivery time?
A:Different products have different delivery time.The products will be delivered as soon as possible on the basis of the quality assurance.Usually the delivery time is within 45 days after we recieved your deposit.
