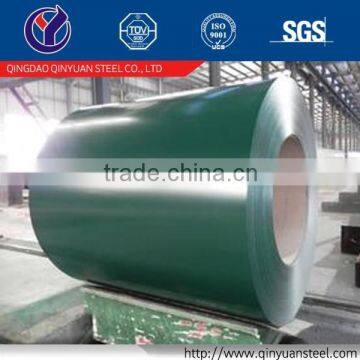

Prepainted Galvanized Steel Coil/PPGI/Colored Steel Coil

1.Coil ID: 508mm-610mm

2.Coil Weight: according to the customer's  request

3.Surface protection: PE, PVDF, SMP, HDP, etc.

Standard

GB/T-12754: 2006, JIS3302, EN 10142, ASTM A653, JIS G3302, SGCC/SGCH, GB/T2518,

European Standard, ASTM A792, JIS G3321, JIS G3317

Base Plate

Cold rolled steel sheet, hot dipped zinc coated steel sheet, hot dipped A-Z coated

steel sheet

Equipment

Double coating double baking; three coating three painting

Capacity

500,000Mt/year

Size

Thickness 0.12mm-0.9mm, width  600mm-1250mm

Zinc Coating

30g-180g

Paint THickness

Top:20+-5um, back:5-7um

Coil Weight

2.5Mt-8Mt

Coil ID

φ508mm-φ610mm

Base Sheet

Cold rolled steel sheet, hot dipped zinc coated steel sheet (small, regular or zero spangle),

hot dipped A-Z coated steel sheet

Surface Paint

EP, PE, HDP, SMP, PVDF

Color Series

 RAL color number series

Surface Type

 Printed, embossed, corrugated

1.Buildings and constructions: roofing, ceilings, gutters,  venting lines, indoor decorations, window frames, etc.

2.Electrical appliances: computer shells, washing machines, refrigerators, dehumidifiers, video recorders, water heaters, etc.

3.Agricultural equipments: troughs, feeding tools, agricultural driers, irrigation channels, etc.

4.Vehicle parts:  back-seat plates of buses and trucks, conveying systems, oil tanks, etc.
