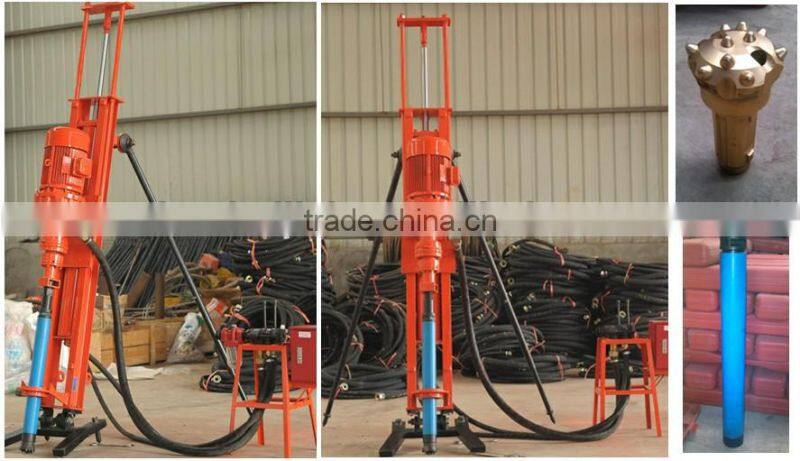

SKB120-5.5 Electric DTH Soil Testing Drilling Rig

FOB Price

Negotiable / Set

5 Sets(Min. Order)

Port Shanghai Guangzhou
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hubei, China		Brand Name	Shoukai
Model Number	SKB120-5.5		After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1,for mining, road, water conservancy, side slope hadle
2,compact structure, easy handle, fast drilling speed, high efficiency,

1, It is a new rock drilling equipment with energy saving, high efficiency designed by ourselves.

2, It is widely applied to larg, medium and small mining, road, national defence, water conservancy, big stone project and side slope working, etc for blasthole drilling. It's also a necessary rock drilling equipment for earlier explore of open air mine.

3, It is specially useful for rugged and accidented areas where other DTH drilling rig can not work normally.

4, This drilling rig features compact structure, easy operating, fast drilling, high efficiency, easy to disassemble and very convenience for carrying.

model	SKB120-5.5
bore diameter	85~130mm
bore depth	30~40m
rock hardness	f = 8~16
rotating speed (without load)	90r/min
working air pressure	0.5~1.0Mpa
air consumption	7m^{3 _{/ min}}
propulsion stroke	1200mm
lifting force	9600N
electric motor power	5.5kw
electric motor voltage	380V
drilling rod length	1025mm
engine	electric
recommended matched power	10 / 7
