Home > Products > Cement silo > Construction Storage Silo for Cement
Construction Storage Silo for Cement
- T/T
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | tianyuan | |
| Model Number | Construction Storage Silo for Cement | After-sales Service Provided | Overseas service center available |
Product Description
Specifications
construction storage silo for cement1:It is a seal dividual cement bin

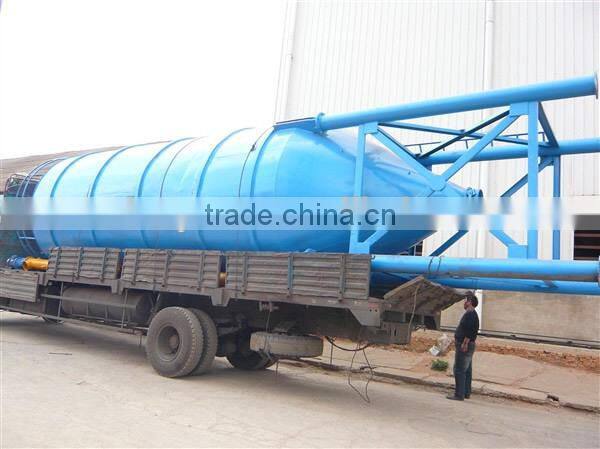

2:Detachable,easy for transportation

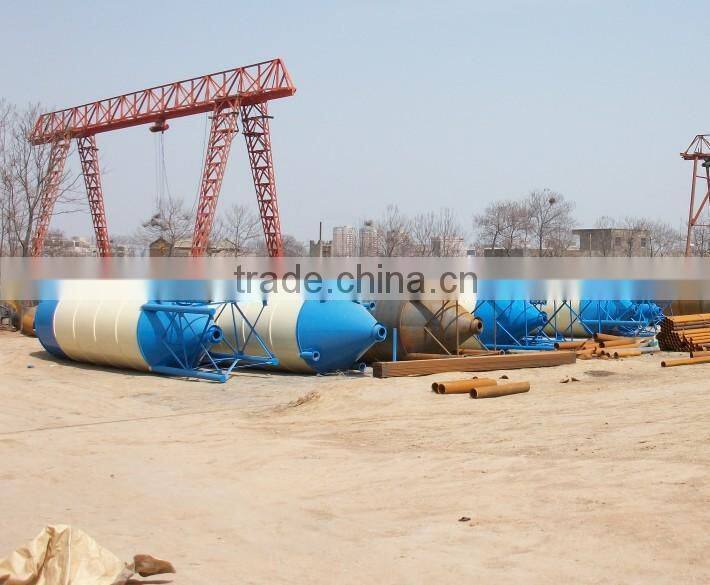

Construction Storage Silo for Cement
1. Application
Cement silos, or cement tank, is a kind of tank for storage bulk cement, fly ash, grain or other kind
of bulk material. storage silo for cement
2. Feature
1. Mainly used as a cement/fly ash storage tank of Concrete Mixing Plant;
3. It can be equipped with level indicator so as to monitor the material level and amount.
4. With the screw conveyor, the materials can be conveyed to a certain position. With different model of
screw conveyor, we can control the discharge speed.
5. Environment friendly design. It is equipped with filter which can reduce the air pollution.
6. Easy for maintenance. We have a inside ladder and outside ladder in the silo for maintenance. We also
have a maintenance platform under the screw conveyor for screw conveyor maintenance.
storage silo for cement data parameter
Model | volume(T) | Body diameter (m) | length(m) | Unload height(m) | weight(t) |
TYC50 | 50 | 3 | 6.5 | 2 | 2.7 |
TYC60 | 60 | 3 | 7.8 | 2 | 3.2 |
TYC80 | 80 | 3 | 9 | 2 | 3.8 |
TYC100 | 100 | 3 | 11·5 | 2 | 4.2 |
TYC150 | 150 | 3.3 | 13.5 | 2 | 5.8 |
TYC200 | 200 | 4.5 | 13 | 2 | 12 |
TYC300 | 300 | 5.5 | 13 | 2 | 17.8 |

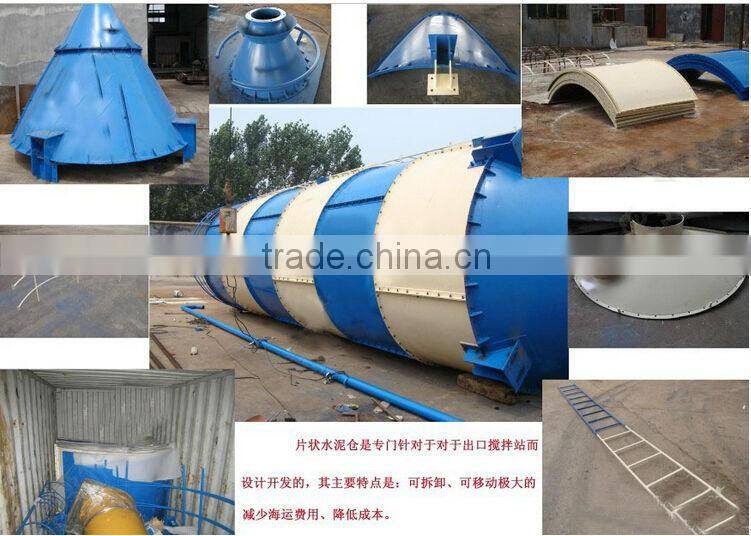

1. One-piece Type, Detachable Type( can be detached for transportation)
The cement steel silo produced by our company in line with the industry standard
2,Unloading height at 1.9 and 4.2m ,clso can custom make.
3,cement bin (cement silo) volume have 50t,60t,80t,100t,150t,200t,250t,300t,500t etc.
