Aluminium Beer Cans Crusher Powder Making Machine
- China port
You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | Tianyuan | Model Number | TYPC500 | |
| Use | Other, plastic Crusher machine | Plastic Type | PET | |
| Shaft Design | Double | Power | 45kw | |
| Capacity | 200kg/h | Voltage | 380V/50Hz/3Phase | |
| Dimension(L*W*H) | 1105*850*1220mm | Weight | 550kg | |
| Certification | ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Aluminium beer cans crusher powder making machine
Aluminium beer cans crusher Application
As retrieving device for plastics, This plastic crusher is suitable for crushing wastes of engineering plastic and defective plastic to plastics granules. The crusher is used to break the plastic pipe material and the plastic special-shaped to plastic granules directly.

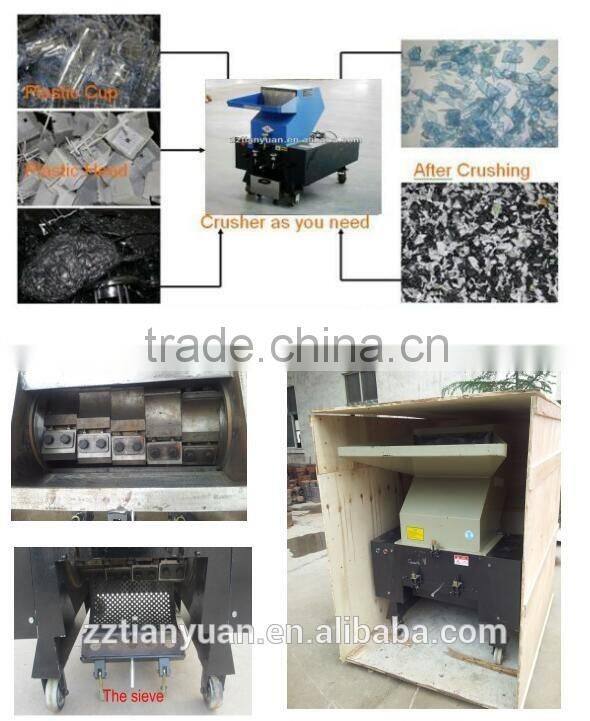

Plastic crusher Features
Adopting deafening, so low in noise. plastic Crusher machine
Adopting removable bits which can be separately removed and sharpened after getting blunt.
Suitable for smashing all kinds of soft hard and foamed plastics.
After crushed material :
PVC PET PP pet bottle scrap plastic Crusher
Plastic Crusher Data Parameters: | ||||
Model | TYPC300 | TYPC400 | TYPC500 | TYPC600 |
Cutter diameter(mm) | 240 | 270 | 280 | 350 |
Blade(pcs) | 9 | 12 | 15 | 30 |
Blade length (mm) | 300 | 400 | 500 | 500 |
Fixed cutter(pcs) | 2 | 2 | 2 | 4 |
Fixed cutter length(mm) | 300 | 400 | 500 | 600 |
Power (kw) | 5.5 | 7.5 | 11 | 15 |
Feed opening(mm) | 320*200 | 420*220 | 520*260 | 600*240 |
Output capacity(t/hr) | 0.1-0.3 | 0.2-0.4 | 0.3-0.5 | 0.3-0.6 |
Dimension(m) | 1*0.8*1.2 | 1.1*0.9*1.3 | 1.2*1*1.4 | 1.3*1.1*1.7 |
Powder Grinding Mill
Inner View :
Final Product our from Plastic Grinding Mill : final powder size adjustable.
Plastic Grinding Mill Data Parameters:
Model | TYJS500 | TYJS700 | TYJS900 |
Main power(kw) | 37 | 55 | 75 |
Fan power(kw) | 4 | 5.5 | 7.5 |
Total Power (kw) | 43 | 62 | 85 |
Moving blade (pcs) | 24 | 3 | 40 |
Fixed blade(pcs) | 12 | 16 | 16 |
Cutter disc Dia.(mm) | 473 | 640 | 800 |
Max feeding Dia.(mm) | ≤5mm | ≤5mm | ≤5mm |
Final mesh size (mesh) | 10-250 | 10-250 | 10-250 |
Output capacity(kg/h) | 70-300 | 100-500 | 150-700 |
Dimension (m) | 4*2*3 | 5*2.5*3.5 | 6*2.8*4 |
