Home > Products > DIN standard short long link chain > Long Link Q235 Galvanized Chain, DIN763 Standard Galvanized Link Chain,Normal Zinc Plated welded Point

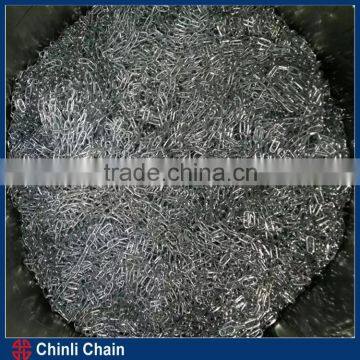

Long Link Q235 Galvanized Chain, DIN763 Standard Galvanized Link Chain,Normal Zinc Plated welded Point
- Qingdao Shanghai Tianjin
- T/T Credit Card
You May Like
-
DIN763 Standard Long Link Chain, Zinc Plated Hoisting Chain,Normal welded Point
-
DIN Medium Link Chain, DIN764 Standard Light Galvanized Normal Welded Point Link Chain,High Strength Hoisting Link Chains
-
DIN766 Standard Short Link Chain,Normal Welded Point Chain,Standard Galvanized Straight Link Chain
-
DIN5685 C Galvanized Link Chain,Q235 Standard Zinc Plated Link Chain,Normal Welded Point Iron Chain
-
DIN5685A Short Galvanized Link Chain,Q235 Standard Hoisting Link Chain,Normal Welded Point Iron Chain
-
DIN766 Standard Short Link Chain with Normal Welded Point ,Din Standard Short Galvanized Straight Link Chain
Product Details
| Place of Origin | Shandong, China | Brand Name | Chinli | |
| Model Number | DIN763 | Structure | Welded Chain | |
| Function | Drag Chain | Material | Other, Iron, Q235,Q195,others | |
| Standard or Nonstandard | Standard |
Product Description
SIZE d | INSIDE LENGTH t | OUTSIDE WIDTH
b | WORKING LOAD | TEST LOAD | BREAKING LOAD | WEIGHT PER M | |||
MM | ±MM | MM | ±MM | MM | ±MM | KG | N | N | KG |
3 | 0.5 | 26 | 1.2 | 12 | 0.6 | 55 | 1050 | 3200 | 0.15 |
4 | 32 | 1.5 | 16 | 0.8 | 100 | 2000 | 6000 | 0.27 | |
5 | 35 | 1.8 | 20 | 1 | 160 | 3150 | 10000 | 0.43 | |
6 | 42 | 2 | 24 | 1.2 | 224 | 4500 | 14000 | 0.63 | |
7 | 49 | 2.5 | 28 | 1.4 | 300 | 6000 | 18000 | 0.86 | |
8 | 52 | 2.5 | 32 | 1.6 | 400 | 8000 | 25000 | 1.1 | |
9 | 59 | 3.0 | 36 | 1.8 | 530 | 10500 | 32000 | 1.41 | |
10 | 1 | 65 | 3.2 | 40 | 2.0 | 630 | 12500 | 40000 | 1.75 |
11 | 72 | 3.4 | 44 | 2.0 | 790 | 15800 | 47500 | 2.11 | |
12 | 78 | 3.6 | 48 | 2.3 | 940 | 18800 | 56500 | 2.55 | |
13 | 82 | 4 | 52 | 2.5 | 1000 | 21200 | 63000 | 2.95 | |
16 | 100 | 5 | 64 | 3.2 | 1600 | 33000 | 100000 | 4.45 | |
18 | 113 | 5.2 | 70 | 3.2 | 2120 | 42300 | 127000 | 5.65 | |
19 | 119 | 5.6 | 72 | 3.4 | 2370 | 47300 | 142000 | 6.25 | |
20 | 120 | 6 | 75 | 3.8 | 2500 | 50000 | 160000 | 7.0 | |
22 | 127 | 6 | 82 | 4.0 | 3170 | 63300 | 190000 | 8.55 | |
25 | 140 | 6.6 | 88 | 4.2 | 4090 | 81700 | 245000 | 10.90 | |
28 | 152 | 7.0 | 96 | 4.7 | 6000 | 120000 | 300000 | 13.9 | |
32 | 171 | 7.8 | 108 | 5.2 | 8000 | 160000 | 400000 | 18.2 | |
DIN standard,Australian standard,USA standard,Korean standard Link Chain, others standard or Nonstandard link chain. | |
Galvanized chain,Plastic chain,Snow Chain,Pet chain,Lifting chain,Anchor Chain,Chain accessories. | |
As per customer requirements produce new products and provide OEM services. |
|
|
|
|
|
|
|
|
|
|
|
|
Jining Chinli Chain Co., Ltd is a leading producer of high tensile chains
especially in European,American, German, Australian, UK etc. The factory is
located at Southwest Shandong Province of China.
The factory is strong in technical force, advanced in equipment, exquisite
in workmanship and excellent in quality. Joint efforts of all the employees have
made its products sell well in dozens of countries and regions. Its products
enjoy high reputation among customers all over the world.
Welcome both the new and old, domestic and foreign customers to our
factory to exchange technology and establish long terms business relationship.
1. Q:Are you Link Chain factory? |
A: We are Link Chain factory,with more than15 years production history. we have own brand--Chinli.We use Alibaba international website 2 years, My company also is Alibaba’s Trade Assurance supplier. |
2.Q:How can we get a sample to check your commodity quality? |
A: After price confirmation,you can require for samples to check our quality.If you need the samples ,you need pay the express fee. |
3. Q: Wich information we need to provide? |
A:We hope you could tell me: l Standard type,Grade Model. l Material,Surface Treatment. l Products Size. l Working Load. l Order Quantity. |
4.Q:Could we order non-standard products? |
A:Yes, but there may be need to create a new mold, the price needs to be paid by the buyer.If the quantity is enough, you could have no need to pay the mold fee. |
