Australian Standard Medium Link Welded Straight Reel Chain
- Qingdao Shanghai Tianjin
 - T/T Credit Card

You May Like
-


Australian Standard Medium Link Welded Galvanized Connecting Industrial Chain
 -


Australian Standard Short Link Normal Welded Point Chain
 -


Australian Long Link Welded Straight Reel Round Chain
 -


Australian AS/NZ Standard Long Link Galvanized Normal Round Link Chain
 -


Korean Standard Welded Galvanized Plated Burnished Link Chain
 -


Korean Standard Chain Reel Straight Galvanized Link Chain

Product Details
| Place of Origin | Shandong, China | Brand Name | Chinli | |
| Model Number | Australian standard | Structure | Welded Chain | |
| Function | Drag Chain | Material | Other, Iron, Q235,Q195,others | |
| Standard or Nonstandard | Standard |
Product Description
| Product name | AUSTRALIAN MEDIUM LINK CHAIN |
| Commodity description | AUSTRALIAN STANDARD MEDIUM GALVANIZED LINK CHAIN |
| Size | 3mm-24mm |
| Material | Q235,Q195,Mild steel |
| Surface treatment | Self color, Galvanized |
| Technology | Normal Welded Point |
| MOQ | 500 meter |
| Supply ability | 100 Ton per month |
| Delivery time | As the quantity in order, 15-30days |
| Payment term | 30% deposit prepaid after confirmed PI, the balance against copy of BL before cargo arrival. Or negotiated with clients  |
| Packing | 1.nude packed:packed in bundles |
| 2.packed in steel drums then on pallets | |
| 3.packed in woodencase | |
| 4.requied by the client | |
| Main products | G80 lifting chains,anchor chains, |
| ASTM or NACM standard chains, | |
| DIN5685 /DIN766/DIN763 chains, | |
| Plastic chain,Stainless chain,Dog chain, | |
| Australian, Norwegian, Korean link chains. | |
| Accessories: | Shackles , Hooks, load binders, Chain sling, |
| Turnbuckles, snap hooks, bolts and nuts, wire rope thimbles. | |
| Experience | 16 years experience in the area of chains and rigging hardware |
| Main market | The United States, Europe, Mid East, Southeast Asia |
| Country origin | Shandong Province, China |
CHAIN SIZE  | WORKING LOAD  | LINK DIMENSION  | LINKS PER M  | LENGTH PER 100 KG  | |||
S  | R  | F  | B.F.  | H.D.G.  | |||
MM  | MT  | MM  | MM  | MM  | PC  | M  | M  |
3  | 0.06  | 3.15  | 15.7  | 13.1  | 63.8  | 511  | 498  |
4  | 0.11  | 4.00  | 18.6  | 16.0  | 53.9  | 320  | 305  |
5  | 0.19  | 5.00  | 22.0  | 19.4  | 45.4  | 203  | 193  |
6  | 0.32  | 6.30  | 26.1  | 23.5  | 37.8  | 129  | 120  |
8  | 0.53  | 8.00  | 32.2  | 29.5  | 31.0  | 77.8  | 74.1  |
10  | 0.83  | 10.0  | 39.1  | 36.2  | 25.0  | 48.5  | 47.1  |
12  | 1.35  | 12.0  | 46.0  | 44.0  | 21.7  | 34  | 33.3  |
13  | 1.50  | 13.0  | 49.1  | 46.1  | 20.3  | 29.7  | 27.7  |
16  | 2.31  | 16.0  | 59.6  | 56.5  | 16.8  | 20.2  | 18.2  |
20  | 3.67  | 20.0  | 73.3  | 70.0  | 13.6  | 12.3  | 11.6  |
24  | 5.31  | 24.0  | 87.0  | 83.6  | 11.5  | 8.5  | 8.04  |
1) More than 15 years experience in the area of chains and rigging hardware.
2) Quick react to your inquiry and email at the first time.
3) Provide best price, good quality and our team will supply the best service.

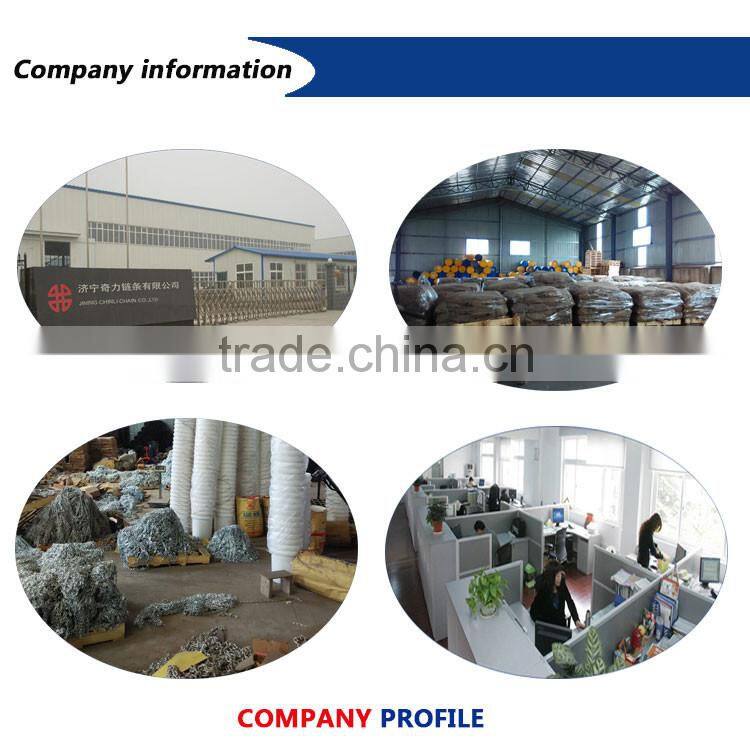

Jining Chinli Chain Co.,Ltd is a leading producer of high tensile chains especially in European , American , German, Australian , Uk etc . Our factory is located at Southwest Shandong Province of China.
Our factory is strong in technical force, advanced in equipment, exquisite in
workmanship and excellent in quality. Joint efforts of all the employees have
made our products sell well in dozens of coutries and regions.
Our products enjoy high reputation amony customers all over the world.
Q: What products do you supply ?
A: We supply Grade80 lifting chains, Grade70 binder chains, Galvanized chains,
stainless steel chains and all chain accessories.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 30 days if the goods
are not in stock,it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,
balance upon copy of B/L.
If you have any other questions, pls feel free to contact us as below:
Supplier:Jack Ding
Tel / Fax: 0086-537-2330458/2343546
SKYPE: jackding03
WhatsApp: 86 15206710369
We chat: 15206710369
