sand filter with filter cartridge for agricultural equipment
- FOB Shanghai
- Credit Card
You May Like
-
Industrial stainless steel sea water sand multi-cartridge filter housing
-
Industrial Water Filter Plant for Cartridge Filter
-
industrial sand filter with filter cartridge for drip irrigation system
-
stainless steel water cartridge filter filter cartridge
-
Centrifuge machine manufacturer
-
Function of oil centrifuge machine
Product Details
| Place of Origin | Shanghai, China | Brand Name | RH | |
| Model Number | 002 |
Product Description
More details about Our Filters :
Quantity for filter Cartridge : 1 3 5 7 9 11 13 15
Size for filter cartridge (mm): 10 20 30 40
Precision for filter cartridge(μm): 0.1,0.22,0.45,1,5,10
Category for filter cartridge: Folding (222 insert, 226 snap-in)
Filter’s material: SUS304, SUS316, SUS316L, PP
Filter’s working pressure(Mpa) : 0.1-0.6
Standard of inlet and outlet(inch): 1/2,3/4,1,1 1/2,2,2 1/2,3
Filter drum’s operating temperature: 120℃
Surface treatment: mirror surface with finishing polish
Fix with a complete set of seal o-rings , NBR(HN7448),Silicon(silicon),Teflon coating(PTFE)
JIS / DIN / ANSI flange connection :
·Heating jacket for high viscosity liquid ·Flexible inlet/ outlet orientation
·SS304/ SS316L PP and other materials are available
Applications :
·Chemical ·Pharmaceutical ·Food & Beverage ·Paint ·Automotive Coating
·Oil Refinery ·Marine ·Water Treatment
RH Cartridge filters Technical Parameters :
MODEL | A m/m | B m/m | C m/m | D m/m | M³/Hr | GPM | WEIGHT | VOLUME | REMARK |
3~6RS-10" | Ø 238×2T | 119.8 | 105.2 | 406 | 3~6 | 15~30 | 21kg | 14L | Single clamp type |
3~6RS-20" | Ø 238×2T | 119.8 | 105.2 | 661 | 6~12 | 30~60 | 26kg | 24L | Double clamp type |
3~6RS-30" | Ø 238×2T | 119.8 | 105.2 | 911 | 9~18 | 45~90 | 29.5kg | 35L | Double clamp type |
3~6RS-40" | Ø 238×2T | 119.8 | 105.2 | 1161 | 12~24 | 60~120 | 33kg | 45L | Double clamp type |
MODEL | A m/m | B m/m | C m/m | D m/m | E m/m |
GPM |
WEIGHT |
1RS-10" | Ø 106×2T | 55 | 57 | 348 | 199 | 5 | 4.5kg |
1RS-20" | Ø 106×2T | 55 | 57 | 598 | 199 | 10 | 6.0kg |
1RS-30" | Ø 106×2T | 55 | 57 | 848 | 199 | 15 | 7.5kg |
MODEL | N1/N2 | A m/m | B m/m | C m/m | D m/m | E m/m | F m/m | G(PCD) m/m | M³/Hr | GPM | WEIGHT | VOLUME |
8RS-30" | 2"~3" | Ø 350 | 130 | 215 | 850 | 375 | 500 | Ø 445 | 24 | 120 | 116kg | 90L |
10RS-30" | 2"~3" | Ø 350 | 130 | 215 | 850 | 375 | 500 | Ø 445 | 30 | 150 | 116kg | 90L |
12RS-30" | 2"~4" | Ø 406 | 150 | 215 | 850 | 375 | 600 | Ø 500 | 36 | 180 | 150kg | 120L |
16RS-30" | 2"~4" | Ø 406 | 150 | 215 | 850 | 375 | 600 | Ø 500 | 48 | 240 | 150kg | 120L |
20RS-30" | 2"~4" | Ø 486 | 150 | 215 | 850 | 395 | 700 | Ø 580 | 60 | 300 | 185kg | 172L |
22RS-30" | 2"~4" | Ø 486 | 150 | 215 | 850 | 395 | 700 | Ø 580 | 66 | 330 | 185kg | 172L |

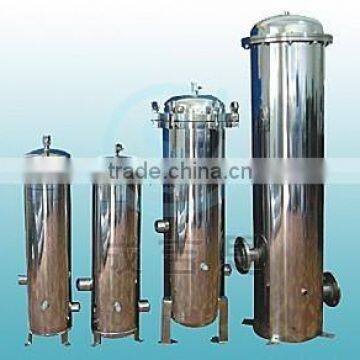

Some pictures for the Cartridge filters :
Support OEM
We are professional manufacturer of filtration equipment in China mainland with the standard and the non-standard products for any field.Such as Electronic components & Supplies Pharmaceuticals industry and so on.Everything will be refer to the customers' needs .
Factory Tour
Our factory are professional for the filter for several years , we have 120 staff now .and many of them have above 5years experience , with 3production lines and our continuous effort ,innovation ,we have got many good reputation From our customers . We are of confidence to create a great future !
Team Show
Packing and Shipping
Service Display
Customer Photo
FAQ
| 1 | Are you manufacturer? |
| Yes, we are manufacturer , our factory is located in Shanghai,China. Welcome your coming to visit us! | |
| 2 | What's your MOQ? |
| One piece sample is ok and more quantities, more favorable price | |
| 3 | Do you accept OEM? |
| Yes, we can manufacture according to your requirement | |
| 4 | What is the process to place an order ? |
| At first, you tell me which styles of products ( From our website or Send us your product's photos or the artwork ) you will need ? Second, If you need , we will provide you the details too ,as the technical parameters or the artwork for your approval . Third, After ensure the more details about the products ,we will quote you about it ,and if you accept ,PI will would like goes for you . Fourth, You need to make full payment or take 30% payment before production and 70% before shipping . | |
| 5 | Are customized products accepted? |
| We are support any of your innovative idea and also will provide you the filtering scheme for your reference . Runlan is your factory ! | |
| 6 | Any discount possible if I place an order? |
| Yes. we have different price ranges (discounts) based on different order quantities. Please contact our sales for detailed price information. | |
| 7 | How long is the delivery time ? |
| Different products and quantities have different procedures and different timing .We may promise that we can try our best to finish all of your orders within the shortest time. For more information, please contact us directly | |
| 8 | More information about the payment terms ? |
| We accept the TT , West Union and Cash . | |
| 9 | How to realize continuous filter for the bag filters? When to exchange the filter bag ? |
| A. The bag filter can be fixed in parallel and exchange the filter bag , so guarantee it can filter continuously . B. (a) refer to the experiences to make rough estimation for it . (B) Fix the pressure gage , once the differential pressure reach the section as 0.5-1kg/cm2,we will need to exchange the filter bag . | |
| 10 | How is the quality of the filters? |
| At Sinft we insist on providing our customers with the highest quality of filtration products. As a result, all of our replacement elements are manufactured right here in China, under the most rigorous quality standards. Additionally, all of our filter elements carry six ISO Standards and we fully guarantee all of our products. |
