Liquid Sachet Filling Machine, Soft Gelatin Capsule Filling Machine, Cartridge Filling Machine
- shanghai
- T/T
You May Like
-
Cushion Filling Machine, Ketchup Filling Machine, 10ml Bottle Filling Machine
-
Best Quality Vertical Cream Filling Machine, Fill Machine of Super Glue,capsule Fill Machine Liquid
-
Hot Sale Bottle Washing and Filling Machine,drink Filling Machine,grease Filling Machine
-
Best Quality Automatic Small Bottle Filling Machine, Pillow Filling Machine,pneumatic Liquid Bottle Filling Machine
-
Plastic Bag Sealing Machine, Pillow Filling Machine,pet Bottle Filling Machine Price
-
Bottle Filling Capping and Labeling Machine,automatic Capsule Filling Machine Price,plastic Tube Filling and Sealing Machine
Product Details
| Condition | New | Application | Chemical, Food, Medical | |
| Packaging Type | Bags, Bottles, Case | Packaging Material | Wood | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220V | Power | 1100W | |
| Place of Origin | Jiangsu, China | Brand Name | DZAE | |
| Model Number | DZGF | Dimension(L*W*H) | 1230*700*1400mm | |
| Weight | 500kg | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

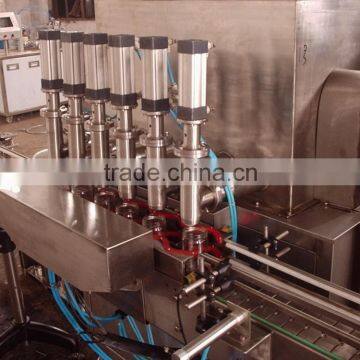

Automatic filling line
product description:
The control parts of the machine are composed of intelligent man-computer interface, large touch screen display and operation control panel, functions including temperature setting, motor speed setting, filling speed setting, direct screen display, screen display and screen control. The components of the machine which will contact with the filling material are made of stainless steel SUS304 and SUS316L. Transparent cover, feeding hose, feeding device are also supplied along with the machine. The machine is featured with safety switch, auto-stop, soft tube location, photoelectric sealing control, etc. During the process of hose-feeding and setting, filling and sealing, the ejectings are all automatically controlled. Digital count device is installed at the front part of the machine. During the filing process, the filling head is placed inside of the material, and the blow-off device is installed to ensure a complete sealing. Various sealing types are available to meet different needs.
product features: 1.Colorful touch screen is convenient to control and the operation condition is clear at a glance.
2.During the mechanical tube feeding, the tube is pressed into the holes of working dishes which are stable and reliable. You only need to adjust the accessory when the product is changed for another size.
3.Simultaneous positive pressure and negative pressure dust absorption system with longer cleaning time ensures a thorough cleaning result.
4.The precision of mechanical link system is within 0.2mm.
5.With unique service control, the filling can be adjusted freely by the touch screen.
6.Plug-in type trailing feeding starts from the bottom of the tube to prevent air from mixing with cream and reduce the possibility of product oxidation. Thus the quality of product can be ensured.
7.The machine can be rapidly heated.
8.Quick-replace type multi-function nip may perform vertical, circular and abnormal end sealing. The number of batch can be printed on both single and double sides and is convenient to change.
9.The smooth surface of machine has no dead angle and is easy to clean. The materials completely contact with the stainless steel and comply with GMP standard.
main technical parameter:
| voltage | ~220v,50Hz |
| power | 3kw |
| compress supply pressure | 0.6-0.8(Mpa) |
| filling volume(ml) | 50.100.150 |
| working capacity (pieces/min) | 20-30 |
| filling error | 1% |
| size(mm) | 1230*700*1400 |
| weight | 600kg |
application:
wooden cases or container for sea freight or accoding to the clients requirements.
1:Warranty time: 1year, from the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be count on buyer.
2:Commissioning services: the product's installation and commissioning at the demand side, our engineers will not leave there until get your agreement.
3:Training services: our engineers will train your staff to operate it during the period of installation and commissioning, and they will not leave there until your staff can operate it properly and normally.
4:Maintenance services: any malfunction happened, once you contact us, we will reply you within 24 hours except the special reasons.
5:Lifelong services: we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.
6:Certificate services: we can provide related certificates to customers freely according to the request of customers.
7:Inspection services: you can ask the third party inspection company or your inspector to inspect the products before shipment.
