super hot sale Plastic/Aluminum Tube Filling and Sealing Machine

FOB Price

USD $7,500 - $12,000 / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Chemical, Food, Medical
Packaging Type	Bags, Bottles, Case	Packaging Material	Wood
Automatic Grade	Automatic	Driven Type	Electric
Voltage	220V	Power	1100W
Place of Origin	Jiangsu, China	Brand Name	DZAE
Model Number	DZGF	Dimension(LWH)	12307001400mm
Weight	500kg	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

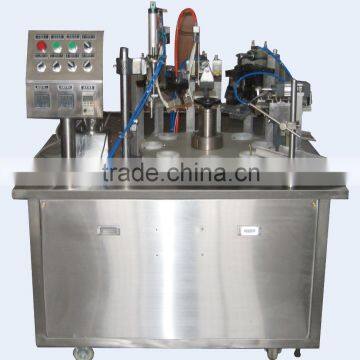

super hot sale Plastic/Aluminum Tube Filling and Sealing Machine

product description:

The control parts of the machine are composed of intelligent man-computer interface, large touch screen display and operation control panel, functions including temperature setting, motor speed setting, filling speed setting, direct screen display, screen display and screen control. The components of the machine which will contact with the filling material are made of stainless steel SUS304 and SUS316L. Transparent cover, feeding hose, feeding device are also supplied along with the machine. The machine is featured with safety switch, auto-stop, soft tube location, photoelectric sealing control, etc. During the process of hose-feeding and setting, filling and sealing, the ejectings are all automatically controlled. Digital count device is installed at the front part of the machine. During the filing process, the filling head is placed inside of the material, and the blow-off device is installed to ensure a complete sealing. Various sealing types are available to meet different needs.

product features: 1.Colorful touch screen is convenient to control and the operation condition is clear at a glance.

Tilted feeding box provides a convenient facility for tube filling. A pinching board is installed beneath the feeding box to prevent the tube from blocking.
2.During the mechanical tube feeding, the tube is pressed into the holes of working dishes which are stable and reliable. You only need to adjust the accessory when the product is changed for another size.
3.Simultaneous positive pressure and negative pressure dust absorption system with longer cleaning time ensures a thorough cleaning result.
4.The precision of mechanical link system is within 0.2mm.
5.With unique service control, the filling can be adjusted freely by the touch screen.
6.Plug-in type trailing feeding starts from the bottom of the tube to prevent air from mixing with cream and reduce the possibility of product oxidation. Thus the quality of product can be ensured.
7.The machine can be rapidly heated.
8.Quick-replace type multi-function nip may perform vertical, circular and abnormal end sealing. The number of batch can be printed on both single and double sides and is convenient to change.

9.The smooth surface of machine has no dead angle and is easy to clean. The materials completely contact with the stainless steel and comply with GMP standard.

main technical parameter:

voltage	~220v,50Hz
power	3kw
compress supply pressure	0.6-0.8(Mpa)
filling volume(ml)	50.100.150
working capacity (pieces/min)	20-30
filling error	1%
size(mm)	12307001400
weight	600kg

application:

our service:

1.One year guarantee for whole machine

2.24hours technical support by E-mail or phone, video

3.Engineers available to service machine by overseas

4.Call or door to door service

Our Warranty

1:Warranty time: 1year, from the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be count on buyer.

2:Commissioning services: the product's installation and commissioning at the demand side, our engineers will not leave there until get your agreement.

3:Training services: our engineers will train your staff to operate it during the period of installation and commissioning, and they will not leave there until your staff can operate it properly and normally.

4:Maintenance services: any malfunction happened, once you contact us, we will reply you within 24 hours except the special reasons.

5:Lifelong services: we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.

6:Certificate services: we can provide related certificates to customers freely according to the request of customers.

7:Inspection services: you can ask the third party inspection company or your inspector to inspect the products before shipment.
