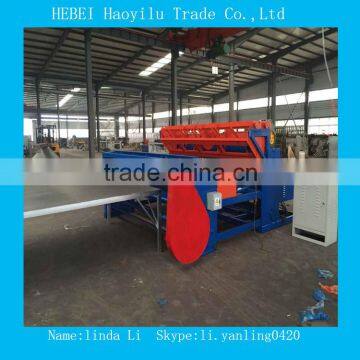

Full Automatic Welded Wire Machine With Cutting Machine

Full Automatic Welded Wire Machine With Cutting Machine

Jin Lu wire mesh welding machine for panel, is the mechanical integration of the most advanced electronic and computer network welding equipment, the machine of the biggest advantages is the wire diameter adjustable weft pitch into the computer will be able to achieve what you get the pitch, mesh random variable. The mesh welding machine flat, diagonal error is very small, the welding network expert assessment is the most advanced welding equipment. If you need more than 2.5 m greater than the diameter 6MM devices and equipment can be pre-orders.

Basic technical parameters:

1, the machine mesh a maximum width of 2.5 meters.

2, welding diameter 2.5MM--6MM

3, the machine mesh Maximum length: 6m

4, the maximum number of welds: 35 beats / min

5, welded longitudinal reinforcement spacing: 50 -100-150 mm

6, welding transverse reinforcement spacing: 50 -75-100-150-200 mm

7, Welding Material requirements: Q195F such as carbon content lower than the phase wires on the standard annealing

8, the number of solder joints: 50 (first choice according to need autonomy)

9 Rated Power: 200kva × 6

10, This machine is widely used in railway fence, highway fence, bridge high-rise buildings, etc. mesh welding.

11, Mesh roll and panel all can make

Machine components:

1 host: including welded mesh body weft blanking parts

2 attached to machines: dragnet institutions

3 Auxiliary equipment: Straightening Machine
