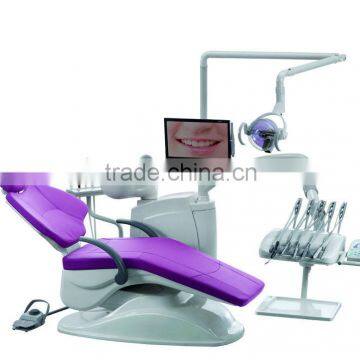

Royal Dental unit Dental American association

Specifications

Short Description

Complete dental operatory system and dental delivery system that includes dental chair, delivery system, assistant's instrumentation, dental light, and support center with cuspidor.

DENTAL Unit

• 1-Double-articulating headrest. Adjusts easily for improved comfort for you and your patients.
• 2-Provides easy patient entry and exit. Ensures patient comfort when chair is in motion.
• 3-Large Movable Independence tray,

• 4- Convenient plate the instrument holder,
  4-Elegant table design; Metal Baking varnish, no faking of the colors
  6-Simply design for easy cleaning
  7-4-Hole instrument hose (3 pcs)
  8-3-way syringe (water/air) Autoclavable
  9-Ultrasonic scaler(optional)
  10-Electronic control panel for chair movement and whole unit operations
  11-DC(low voltage)  X-Ray film viewer
  12-Air pressure gauge
  13-3 position storage
  14-Built in injecting water purified system
  14-Imported U.S.A water/air /hand piece hose
  16-Full air  control system
  17-Mouth rinsing position button, reset button

  18-Multifunction tissue box (options)






  Light Unit
  Luxurious sensor dental operation light (SY8068)






  Arm Rest:

  Two arm rest(SY8068), the right arm can move to the most comfortable position.






  Head Rest:
  Double-articulating headrest cradle patient's neck and head. It also provides virtually limitless positioning for improved access to any oral cavity even pediatric treatment.




  Dental chair
  24V noiseless DC Motor Chair
  Elegant, super wide genuine car leather seat (Upholstery, feeling soft and comfortable, Abrasion proof, and elastic,)
  Air-lock balance arm system of hand piece

  Suitable for patient up to 200kg, Stable chair frame, not shaking

  Main air control switch: safety and protection the chair working life





Dental delivery System

• Open platform design. Allows you to add new technology as your practice changes and technology evolves.Optional for Electric motor or fiber optic handpiec system.
• 5 adjustable holders. Pivots so you can position your instruments for maximum comfort.
• Adjustable handle(Air lock). Positions so you can easily guide the delivery system into a comfortable angle.
• Touchpad. Operates chair, light, X-ray viewer(OPG X-ray viewer optional) and cuspidor to put functionality at your fingertips.
• Three position program ,set and preset program functions

Assistant's Instrumentation

• 3-position holder. Accommodates High Volume Evacuator  Saliva Ejector  and syringe
• Adjustable holders. Rotates as a group and pivots independently to allow customized instrument positioning.
• Multi-function touchpad. Operates chair, light, X-ray viewer and cuspidor to put functionality at your fingertips.

Junction box, Foot control and Dental stool

• Water/Air/Power one switch control system
•  air purification
•  Mutifunctional foot control
•  functions include: Chair control, treatment control, rinsing and cup filling control.
•  Optional for built in or buit out of the dental chair
•  A type dental stool with height adjustable and optional with foot backet

UNIT BOX

Seamless box cover
Water heating system
Moveable ceramic cuspidor
programmable cup fill and bowl rinse system

  Cuspidor

*-Rotatable ceramic cuspidor can turn to the position in front of the patient, and no need for the patient to *move.Automatic cup filler
*Automatic bowel cleaning
*Warming water system
*Valve to Prevent Backflow of water

ASSISTANT ELEMENT

High surgical suction
Low surgical suction
3-way syringe (water/air) Autoclavable
Light cure (option)
For assistant‘s instruments are put in the table during the treatment

Products Description

Specificatioins :

Options :

OUR EXHIBITION

OUR WORK LINE

 OUR WAREHOUSE

 OUR PACKAGE LINE &CONTAINER LOADING

Box size :(L)1.29M*(W)1M*(H)1.13M
Gross Weight :280KG

Sea port :Guangzhou Huangpu ,Shenzhen
18pcs for 20GP container
40pcs for 40GP container

OUR GROUP

OUR QUALIFICATION
