Product Details
| CAS No. | 9009-54-5 | Place of Origin | Shanghai, China | |
| Type | Other | Brand Name | Dongda | |
| Model Number | DQT-502 |
Product Description
Specifications
Polyurethane Blend Polyols Foam System for Pipe Shellsgood flowability
high temperature-resistance performance
Products Introduction

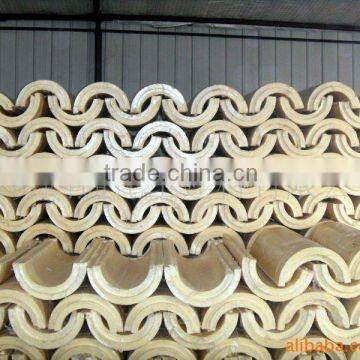

High Density Polyurethane Blend Polyols Foam System for Pipe Shells
DQT-502SW
This product is a type of blend polyols with 100% water as blowing agent, which is specially researched for rigid PUF to produce thermal insulation pipe shells. It is mainly used in liquefied nature gas running pipes, oil pipes and other fields.
The characteristics are as follows:
(1)good flowability, by regulating formula to suit different pipe diameters.
(2)excellent foam mechanical properties
(3)excellent high/low temperature dimensional stability
Physical Property
Appearance Hydroxyl value mgKOH/g Dynamic viscosity(25°C) mPa.s Density (20°C) g/ml Storage temperature °C Storage stability Month | Light yellow to brown yellow transparent liquid 300-450 800-1200 1.05-1.10 10-25 6 |
Technology and Reactivity Characteristics
Component temperature is 20°C, the actual value is varied according to pipe diameter and processing condition.
Manual mixing | High pressure machine | |
Ratio(POL/ISO) Rise time s Gel time s Tack free time s Core Free density kg/m3 | 1:1.0-1.1.20 20-40 100-150 ≥150 100-400 | 1:1.0-1.20 15-35 80-120 ≥120 100-400 |
Foam Performance
Molded foam density Closed-cell rate Thermal conductivity(15°C) Compressive strength Water absorption High temperature-resistance Low temperature-resistance | GB 6343 GB 10799 GB 3399 GB/T8813 GB 8810
| 200-600kg/m3 ≥90% ≤0.040mW/(m.K) ≥2Mpa ≤3(V/V)% ≤140°C ≤-60°C |
The data provided above are typical value, which are tested by our company. For our company's products, the data included in the law do not have any constraints.
