Product Details
| Place of Origin | Hebei, China | Brand Name | PISKER | |
| Model Number | din sae r1 r2 4sp 4sh |
Product Description
Air Hose, Rubber air hose
Structure of Rubber Air Hose
Inner tube: Oil resistant synthetic rubber
Reinforcement: Two braided high tensile steel wire
Cover : Oil and weather resistant synthetic rubber
Applications of Rubber Air Hose
The hydraulic Hose ranges suitable to carry hydraulic fluids such as glycol , mineral oils , fuels , emulsion ,
hydrocarbons etc.
Working temperature of Rubber Air Hose
From-40°C to +100°C
For Rubber Air Hose , the technical parameters as follows
I.D. | O.D. | W.P. | REIFORCE LAYER | WEIGHT | UNIT LENGTH | |||
| mm | in. | mm | psi. | mpa. | kg/m | m/roll | |
3/16 | 4.8 | 0.45 | 11.5 | 300 | 2.07 | 1 | 0.15 | 100 |
1/4 | 6.4 | 0.63 | 16 | 300 | 2.07 | 1 | 0.18 | 100 |
5/16 | 7.9 | 0.59 | 15.0 | 300 | 2.07 | 1 | 0.22 | 100 |
3/8 | 9.5 | 0.75 | 19.1 | 300 | 2.07 | 1 | 0.27 | 100 |
1/2 | 12.7 | 0.91 | 23.1 | 300 | 2.07 | 1 | 0.40 | 100 |
5/8 | 15.9 | 0.96 | 24.5 | 300 | 2.07 | 1 | 0.50 | 100 |
3/4 | 19.1 | 1.14 | 29.0 | 300 | 2.07 | 1 | 0.75 | 100 |
3/4 | 19.1 | 1.18 | 30.0 | 300 | 2.07 | 2 | 0.80 | 100 |
1 | 25.4 | 1.42 | 36.1 | 300 | 2.07 | 1 | 0.95 | 100 |
1 | 25.4 | 1.42 | 36.1 | 300 | 2.07 | 2 | 0.95 | 100 |
1 1/4 | 31.8 | 1.75 | 44.5 | 300 | 2.07 | 2 | 0.70 | 50 |
1 1/2 | 38.1 | 2 | 54.0 | 300 | 2.07 | 2 | 0.85 | 50
|
Main hydraulic hose products
Wire braided hydraulic hose | 1.SAE 100R1AT/ DIN EN853 1SN 2.SAE 100R2AT/ DIN EN853 2SN 3.SAE R5 4.SAE R16 |
Wire spiraled hydraulic hose | 1.DIN 20023 EN856 4SP 2.DIN 20023 EN856 4SH 3.SAE 100 R12 4.SAE 100 R13 |
Fibre braided hydraulic hose | 1.SAE 100R7/EN855 R7 2.SAE 100R8/EN855 R8 3.SAE 100 R3 4.SAE 100 R6 |
Other Rubber hose | 1.SAE 100R14 (Teflon hose) 2.METAL FLEXIBLE HOSE 3.KNITTED ARE HOSE |

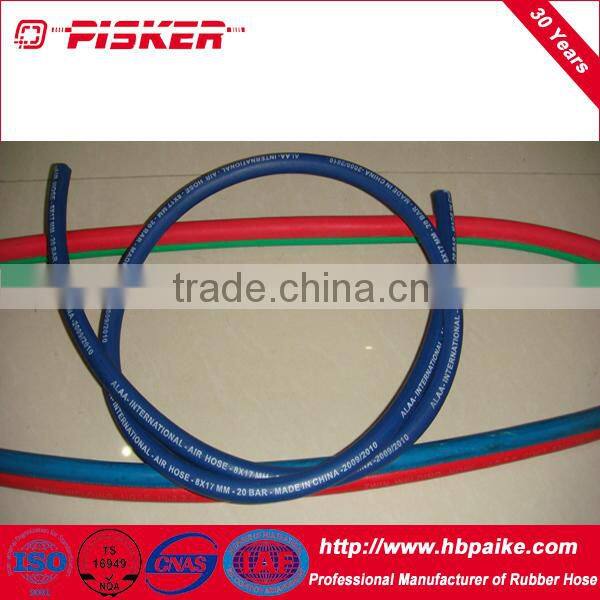

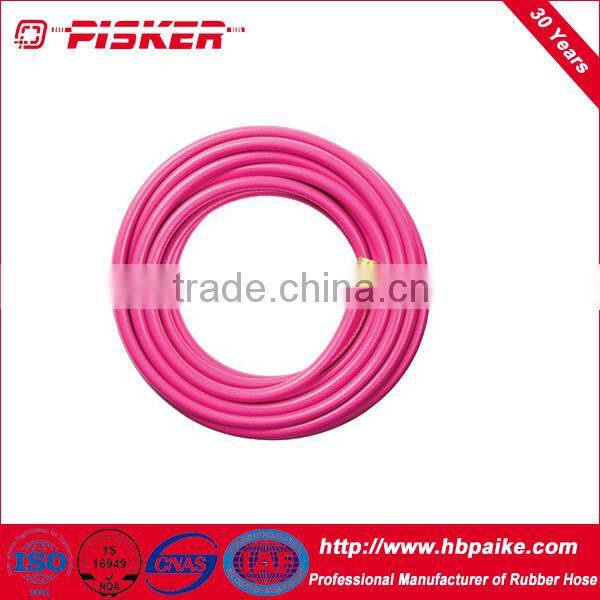

Rubber Air Hose pictues:
Producing of Rubber Air Hose
Producing of Rubber Air Hose
Rubber Air Hose test machine
Rubber Air Hose Customers
Rubber Air Hose certification
Rubber Air Hose waiting for shipments
What's more,OEM is availible. We could design hydraulic hoses with different pressures
and temperatures.
Thanks very much, Hope have chance to cooperate with you, Welcome to visit our factory!
Contact me freely!
