High Pressure Cloth Fiber Flexible Braided Rubber Air Hose
- Tianjin(China)
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | PISKER | |
| Model Number | din sae r1 r2 4sp 4sh |
Product Description
High Pressure Cloth Fiber Flexible Braided Rubber Air Hose
Structure of High Pressure Hydraulic Rubber hose 1sn
Inner tube: Oil resistant synthetic rubber
Reinforcement: Two braided high tensile steel wire
Cover : Oil and weather resistant synthetic rubber
High Pressure Hydraulic Rubber hose 1sn
The hydraulic Hose ranges suitable to carry hydraulic fluids such as glycol , mineral oils , fuels , emulsion ,
hydrocarbons etc.
Working temperature of Flexible Natural Gas Hose
From-40°C to +100°C
For High Pressure Hydraulic Rubber hose 1sn , the technical parameters as follows
I.D. | O.D. | W.P. | REIFORCE LAYER | WEIGHT | UNIT LENGTH | |||
| mm | in. | mm | psi. | mpa. | kg/m | m/roll | |
3/16 | 4.8 | 0.45 | 11.5 | 300 | 2.07 | 1 | 0.15 | 100 |
1/4 | 6.4 | 0.63 | 16 | 300 | 2.07 | 1 | 0.18 | 100 |
5/16 | 7.9 | 0.59 | 15.0 | 300 | 2.07 | 1 | 0.22 | 100 |
3/8 | 9.5 | 0.75 | 19.1 | 300 | 2.07 | 1 | 0.27 | 100 |
1/2 | 12.7 | 0.91 | 23.1 | 300 | 2.07 | 1 | 0.40 | 100 |
5/8 | 15.9 | 0.96 | 24.5 | 300 | 2.07 | 1 | 0.50 | 100 |
3/4 | 19.1 | 1.14 | 29.0 | 300 | 2.07 | 1 | 0.75 | 100 |
3/4 | 19.1 | 1.18 | 30.0 | 300 | 2.07 | 2 | 0.80 | 100 |
1 | 25.4 | 1.42 | 36.1 | 300 | 2.07 | 1 | 0.95 | 100 |
1 | 25.4 | 1.42 | 36.1 | 300 | 2.07 | 2 | 0.95 | 100 |
1 1/4 | 31.8 | 1.75 | 44.5 | 300 | 2.07 | 2 | 0.70 | 50 |
1 1/2 | 38.1 | 2 | 54.0 | 300 | 2.07 | 2 | 0.85 | 50
|
Main hydraulic hose products
Wire braided hydraulic hose | 1.SAE 100R1AT/ DIN EN853 1SN 2.SAE 100R2AT/ DIN EN853 2SN 3.SAE R5 4.SAE R16 |
Wire spiraled hydraulic hose | 1.DIN 20023 EN856 4SP 2.DIN 20023 EN856 4SH 3.SAE 100 R12 4.SAE 100 R13 |
Fibre braided hydraulic hose | 1.SAE 100R7/EN855 R7 2.SAE 100R8/EN855 R8 3.SAE 100 R3 4.SAE 100 R6 |
Other Rubber hose | 1.SAE 100R14 (Teflon hose) 2.METAL FLEXIBLE HOSE 3.KNITTED ARE HOSE |

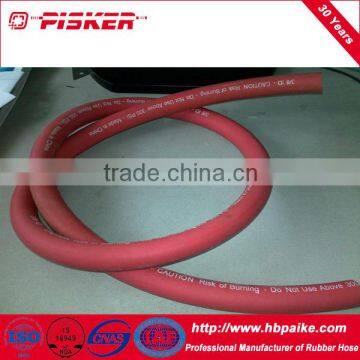

Air Hose pictues:
Producing of Air Hose
Producing of Air Hose
Air Hose test machine
Air Hose Customers
Air Hose waiting for shipments
What's more,OEM is availible. We could design hydraulic hoses with different pressures
and temperatures.
Thanks very much, Hope have chance to cooperate with you, Welcome to visit our factory!
Contact me freely!
