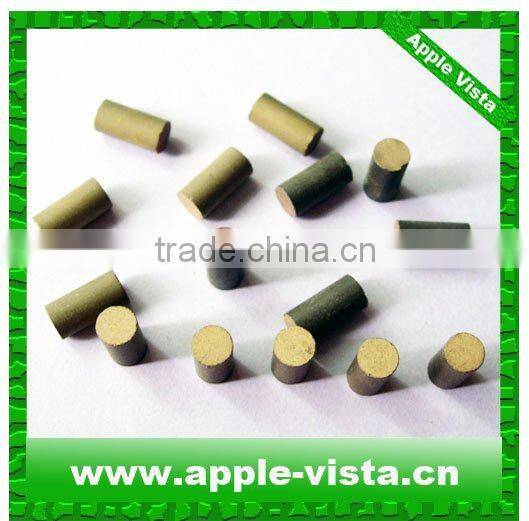

5X10mm Piezo Element Column
US$ 0.02 - 1
/ Piece
1000000 Pieces(Min. Order)
- Shenzhen or Hong Kong
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | AV | |
| Model Number | AV 406A | Type | Piezoelectric Ceramics | |
| Material | Other, mixed |
Product Description
5X10mm 406A piezo igniter manufacture
--------------------------------------------------------------------------------------
Product Details
1.Operation Temperature: -40oC~ -275oC
2.Power Voltage: ≥15KV
3.Operation Power: ≤4Kgf
4.Electromenchanical Coupling Coefficient: KPT=0.62
5.Relative Dielectric Constant: K33=1750
6.Piezoelectric Constant: D33=400×10-12 C/N
7.Service Life: ≥10,000 Times
8.Approval: CE ,ROSH
Piezo Impact Element
Part No | Dimension (mm) | d33 | Capacitance (pf) | Frequency (KHz) |
AV-FI-16636 | Φ6.35 x 16 | ≥ 525.2 x 10-12 C/N | 30.90 ± 10% | 35.5 |
AV-FI-105(06) | Φ5 x 10 | ≥ 362.8 x 10-12 C/N | 17.38 ± 10% | 51.9 |
AV-FI-105(86) | Φ5 x 10 | ≥ 518.4 x 10-12 C/N | 29.21 ± 10% | 55.2 |
AV-FI-525 | Φ2.5 x 5 | ≥ 350 x 10-12 C/N | 12 ± 10% | 40 |
Contact Us
- Shenzhen Apple Vista Technology Ltd.
- Contact nameTimetrax guo Chat Now
- Phone86-755-25652400
- AddressR801,East Bunsiness Building,No.222 MinZhi Road,LongHua New District,, Shenzhen, Guangdong
Product Categories
New Products
-
406A Piezo Ceramic Element for Ignitor From China Piezo Factory
-
High Quality 406A Piezo Ceramic Crystal for Ignitor
-
Cheap 406A Piezo Ceramic Element for Ignitor
-
Cheap 726 5x10mm Piezo Element
-
726 5x10mm Piezo Crystal From Apple Vista Factory
-
Wholesales Price 686 5x10mm Piezo Element From Factory
-
686 5x10mm Piezo Crystal in Stock
-

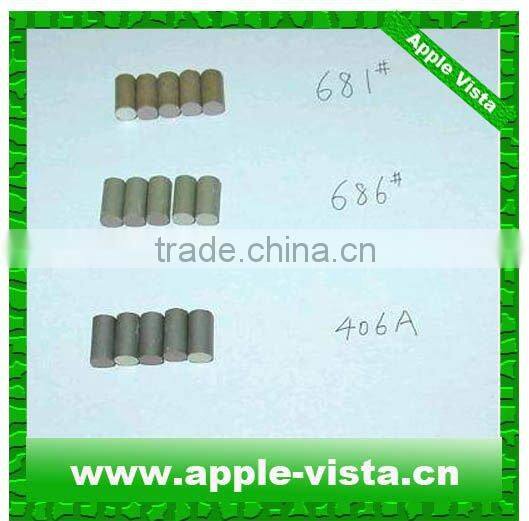

Factory Supply 5*10mm 681/686/406A/406D/511 Piezo Element Ceramic for Indian Market
-
