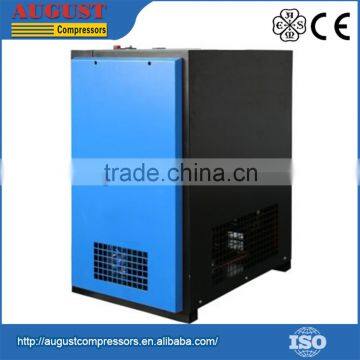

AUGUST Compressed Aluminum Alloy Heat Exchanger Air Dryer

AUGUST Compressed Aluminum Alloy Heat Exchanger Air Dryer

PD series Design

60 Hz Version available. Fully certified

Based of 20 years experience from RS’ professional manufacturing and design which follows international advanced manufacturing technology. It is a brand new design philosophy by meeting environment-friendly requirements.

M  modular             E  easy to use        E  energy saving

• Pre-cooler,evaporator and liquid separator of PD series refrigeration dryers are all following all-in-one modular structure, standard production can improve dryer reliability greatly.
• Modular structure design which is suitable for multiple structure, easy for daily service and reduces service cost greatly.
• PD series refrigeration dryer adopt modular control system,all kinds of other controller types are available according to customers requirements. RS485 I/O, Profibus protocol, Modbus protocol and Ethernet are available on customer request
• PD series refrigeration dryer is designed with smart industry appearance, armoured panel is not only pretty also easy for site service.
• PD series refrigeration dryer is designed by “one key mode”, normally site commissioning is not required, even for mechanical type, we have mutiple compressor protection, refrigerant high pressure alarm, refrigerant low pressure alarm, refrigerant high temperature alarm, continuous start countdown, simple dewpoint display and compressor preheat (while dryer stop) protection and etc., Our design surpass all our competitors.
• Friendly refrigerant R407C is adopted for all of PD series dryers.
• PD series dryer is of plate-fin heat exchanger with international advanced special channel design, which has stronger anti-icing and lower pressure drop.
• PD series dryer is of the worldwide brand compressor with high energy efficiency ratio. If equipping with good transducer and dew point energy saving system, the  energy consumption shall be continued to decline.
• PD series dryer adopts thickened aluminum alloy of heat exchanger, whose corrosion resistance is more than twice the similar overseas products (the material cost is also higher).
• The high heat-efficiency of pre-cooler of RS-PD series dryer can guarantee the inlet and outlet temperature difference at 5~6 degree, and low relative humidity at the compressor outlet, and prevent downstream pipe from corrosion.
• The unique design of the pre-cooler makes sufficient heat transfer, and greatly reduces the evaporator load, so the power consumption of refrigerant compressor is low, only 70% of the normal one (save energy obviously).
• The air condenser adopts nanometer hydrophilic membrane materials,Good hydrophilia, corrosion resistance and self-cleaning. Small resistance of airflow, heat exchange rate can be increased by10%~15%.
• High-performance fan, low noise motor, high volume, lower energy consumption.
• Bypass valve,Expansion capillary: larger bypass valve can assure discharging the 100% of the spare cooling capacity when the overload is low so that it protect the compressor. The expansion capillary can ensure the temperature of refrigerant into evaporator at the range of 0-1℃,which can ensure  the pressure dew point at 2-8℃.
• Water separator: RSL *- 250 ~ 1800-PD uses the patented design, external WS ensure excellent PDP; meanwhile ensure the pre-cooler, evaporator can be leak test separately, greatly reduced the risk of dew-point difference due to channeling gas within the system (domestic and foreign products exists the design flaws)
• Exhaust gas temperature protection: it can protect the compressor when the refrigerant leaking or the equipment is overloaded.
• Pressure protection: Installing the refrigerant low/high-pressure production.
• Compressor: Using world famous brand of compressor, with reliable performance and low noise.
• lFan motor controller: Using DANMARK DANFOSS pressure controller as fan motor controller.
• Low voltage electric apparatus :Using FRANCE SCHNEIDER electric apparatus which is the first brand of electric apparatus.
• Due to the low height of dryer, the buttons are on the top of equipment and easy to operate. For large size dryer, we are using cabinet design which is occupying  lesser space.
• Operational aspect is obvious with the color dew point indicator.
• Easy access of drain  for routing daily maintenance.
• The PD series of dryer are all installed with reliable electronic drain( with manual safety valve); Zero air loss with original  BEKO automatic drain.
• Power supply:110~240V, 380 ~ 440V ,50Hz / 60Hz for global application.
• Normal type max. working pressure:1.5MPa( above 2.0MPa can be special customized).
• Extreme working conditions: max. inlet air temp. <  60 ℃   max. ambient temp. < 50 ℃
• Certificates:  The only one company passed the “CE” certification covers all series dryer by European Union
• Rated inlet temp.: 38 ℃     Max.: 60℃
• Rated Ambient temp.:38 ℃  Max.: 50℃
• The capacity range of PD series: 6.0m3/min ~ 180.0m3/min
• Rated working pressure: 0.7Mpa ,Max. 1.5Mpa
• Cooling type: air-cooled, water cooled

High efficiency, energy saving and noise reduction elements are standard aspects in development and

production. The main product line reaches the standard of national Class 2 high efficiency requirements.

Furthermore Heat recovery systems, permanent magnet motor technology and VSD Inverter applications

are available to provide an even higher efficiency of the compressors. We combine the advanced

German technologies with the latest research achievement and rely on the core technology we own,

to establish our leading position in the industry and provide advanced solution to compressed air system

for customers in and outside China.
