Product Details
Place of Origin | Guangdong, China | Brand Name | SOYO | |
Model Number | SOYO-WT02 |
Product Description
Specifications
1.Frequency:2.4-2.483GHz2.Channels:30 channel
3.Sample ratios:64K
4.CE

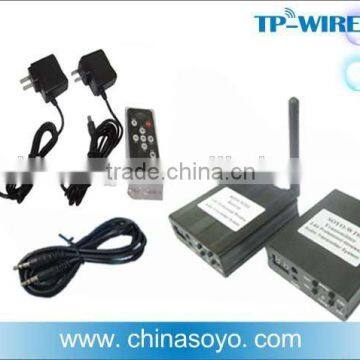

2.4g Digital Wireless Transmitter Receiver
Model No.: SOYO-WT02
2.4G wireless transmitter and receiver
2.4GHz digital wireless transmission
Anti-interference
Transmitting distance 60 meter
High fidelity voice.
Latency less than 0.5ms.
Dimension: 42*18mm 35*18mm
Channel separation: 85dB
Frequency response: 20-20kHz(+/- 1dB)
Digital audio with 64K sampling rate and 16bit resolution.
Low power consumption
Connect to CD, iPod, AMPLIFIER A
Application:
-Home theatre audio system.
-Large stage audio system.
-DJ audio system.
-Disco club audio system.
Easy to use:
One 2.4GHz wireless transmitter (connecting with audio source, Line-in/amplifier level input) and one 2.4GHz wireless receiver (connecting with rear-active-speaker).
Features:
-2.4GHz digital wireless transmission, no radiation, really health for body.
-Frequency response: 20Hz-20kHz.
-Low latency<0.5ms.
-Sampling rate: 64k@16bit*2.
-Distance transmit: Over than 80M( in an open space).
-Support point to point, point to multi-point transmitting.
-360 degrees transmission, without corner pockets.
-Non-interference when working with Wi-Fi.
-Low voltage, safe for children and elder people,
Applicable to the Mobile, MP3, CD / DVD player, tablet PC, laptop, desktop and all electronic products with audio output. Let your audio system wireless.
Electrical specifications: | |||
NO. | Description | Transmitter module | Receiver module |
1 | Working voltage | 3.6- 6V DC | 2.5 - 3.6V DC |
2 | Working electric current | Max 120mA | Max 35mA |
3 | Working temperature | -15~ +65 degree celsius | -15~ +65 degree celsius |
4 | Frequency response | 2400 - 2483 MHz | 2400 - 2483 MHz |
5 | Modulation | GFSK | GFSK |
6 | Baud rate | 2M bps | 2M bps |
7 | Channel space | 4MHz | 4MHz |
8 | Stabilization of frequency | +/-156KHz | +/-156KHz |
9 | Work frequency range | 2400 - 2483 MHz | 2400 - 2483 MHz |
10 | Work channel | 20 CH | 20 CH |
11 | Channel space of module | 4MHz | 4MHz |
12 | Output power | 0-20 dBm | |
13 | Receiver sensitivity | 90dB | |
14 | Input power | Max 1.0Vrms | |
15 | Input impedance | 10k Ohm | |
16 | Input mode | Two input modes: | |
1. Microphone | |||
2. Stereo audio | |||
17 | Stereo output 1 | 30mW RL = 32Ω | |
18 | Stereo output 2 | 50mW RL = 16Ω | |
19 | Output impedance | 1k Ohm | |
20 | RF Distance | 100-150 meters in the open area under 20dBm | |
21 | Output input gain ratio | 1:01 | |
22 | Frequency response | 20 - 20000Hz ( +/1dB ) | |
23 | The latency time | < 0.5 ms | |
24 | Sampling ratio | 64kHz@16 bit*2 | |
25 | SNR | 95 dB | |
26 | THD | 0.8%@1kHz | |
27 | Dynamic range | 90dB | |
28 | Separation between the left and right track | 70 dB |
