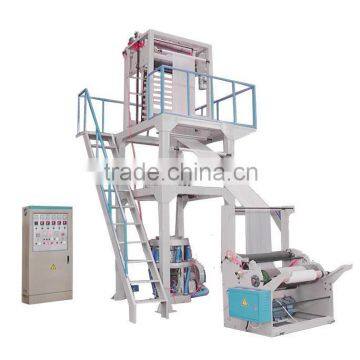

EN/H-45E/65E High Speed PE blown film machine
- any port in China
- T/T
You May Like
-
EN/H-45E/65E High Speed PE film making machine
-
EN/H-45E/65E High Speed polyethylene blown film for shopping bag making machine
-
EN/H-45E/65E High Speed film blowing extruder machine
-
EN/2L-50 Two Layer Co-extrusion Film Blowing Machine
-
EN/H-45E/65E High Speed Plastic Film maker For both HDPE,LDPE film
-
EN/H-65E-1300 High Speed plastic bag blowing machine
Product Details
| Condition | New | Application | Film | |
| Plastic Processed | PE | Screw Design | Single-screw | |
| Automatic Grade | aumatic/semi-automatic | Place of Origin | Zhejiang, China | |
| Brand Name | ENOCH | Model Number | EN/H-45E/65E | |
| Voltage | 380V,3phrase/220V,3phrase | Power(W) | 18-38KW | |
| Dimension(L*W*H) | 5.2*3.4*5.8m | Weight | 4000-7000KG | |
| Certification | GSG | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1. blown film machine2.high quaility screw, barrel,gear box for long life
3.thick material for tower
4.included embossing
Why do u choose ENOCH MACHINERY ?
1. SGS, CE, Production Assessment, Gold Supplier certificated
2. Our emphasis : QUAILITY ,HONEST AND RESPONSIBLE
3.All the film blowing machine pics we show on ALIBABA is take in our factory
4. All machines will be examined and tested before delivery
5. Free Warranty since the vessel arrive at your port ,after-sale service for whole life
ABOUT US
Ruian Enoch Plastic Machinery Co.,Ltd landed in Ruian city, Zhejiang province. The professional manufacturer of plastic bag machinery ,especially film blowing machine .Our company’s main product is High speed HDPE film blowing machine, Rotary die head PE film blowing machine, three layer co-extrusion film blowing machine, etc kinds of film blowing machine, stretch film machine, plastic bag machine, no-woven bag machine and printing machine. Our products are sold all over China, also we export our machines to Southeast Asian, Middle East, Latin America, Russia, Africa. And we receive very good reputation from our customers.
Our concept is “Gain reputation from Quality, Gain Brand from Reputation, Gain Market occupancy from Brand”. We pay close attention to staff management and after-sales service, focus on scientific and technological progress and information, continue to grow and develop us. Also we welcome any feedback from our customer to improve our quality and service.
EN/H-45E/65E High Speed Plastic Film Machine For both HDPE,LDPE film
whole machine:
Machine part :
Specification
MODEL | EN/H-45E | EN/H-50E | EN/H-55E | EN/H-65E |
SUITABLE MATERIAL | HDPE,LDPE,LLDPE | |||
FILM WIDTH | 300-600mm | 300-800mm | 400-1000mm | 600-1300mm |
FILM THICKNESS | 0.009-0.05mm | 0.009-0.05mm | 0.009-0.10mm | 0.01-0.10mm |
MAX.EXTRUSION OUTPUT | 30-45kg/hr | 35-50kg/hr | 40-70kg/hr | 60-100kg/hr |
EXTRUDER | ||||
SCREW DIAMETER | φ45 | φ50 | φ55 | φ65 |
SCREW L/D LENGTH | 30:1 | |||
SCREW MATERIAL | SACM-645/38 CRMOALA | |||
CYLINDER MATERIAL | SACM-645/38 CRMOALA | |||
CYLINDER COOLING | 370W×2 | 370W×2 | 550W×3 | 550W×4 |
DRIVING MOTOR | 15Kw | 18.5Kw | 22Kw | 37Kw |
TEMPERATURE CONTROL | 3 | 3 | 3 | 4 |
AVERAGE POWER-CONSUME | 18Kw | 26Kw | 31Kw | 45Kw |
TYPE OF DIE | ||||
DIE SIZE | φ60/80,100/120 | Φ60/80,120/140 | Φ80/100,140/160 | φ100/120,160/180 |
CENTER STEADY STICK | 2 | |||
TEMPERATURE CONTROL | 3 | |||
AIR RING | 1 | |||
AIR BLOWER | 1.5Kw | 2.2Kw | 3Kw | 5.5Kw |
TAKE-UPUNIT | ||||
ROLLER WIDTH | φ165×650mm | φ165×850mm | φ165×1100mm | φ165×1400mm |
EFFECTIVE WIDTH | 600mm | 800mm | 1000mm | 1300mm |
TAKE-UP SPEED | 10-100m/min | 10-100m/min | 10-90m/min | 10-90m/min |
TAKE-UP MOTOR | 0.75Kw | 1.5Kw | 1.5Kw | 1.5Kw |
HEIGHT ADJUSTABLE TYPE | 700mm | |||
WINDING UNIT | ||||
TYPE | SURFACE FRICTION TYPE | |||
WINDING MOTOR | 6N.m | 10N.m | 16N.m | 20N.m |
WINDING SPEED | 10-100m/min | 10-100m/min | 10-90m/min | 10-90m/min |
OVERALL DIMENSION(L×W×H) | 4.0×2.0×4.5m | 4.0×2.5×4.7m | 4.8×2.8×5.2m | 5.2×3.4×5.8m |
Our Services
Within one year, we will supply spare parts for free and free DHL,and replace the broken part freely within one year.
Our Engineer service:
We will send technician to customer’s factory to install the machine and teach the worker to operate the machine. And the customer should pay all the cost.
Packaging & Shipping
Packaging:first packed by film.then fix by stretch film.
shipping:Loading container in factory
Pls feel free to contact me by SKYPE, WECHAT ,or call me ,i would glad to hear from your inquiry .
Ms Phil Chen
Tel: 0086-577-65111018 Fax: 0086-577-65111028
Mobile: 008613967712350 Wechat: phil13967712350
Skype: enochmachine.phil
QQ:1494568316
