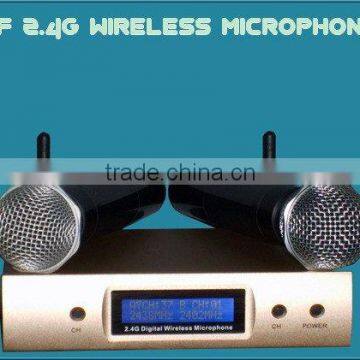

2.4g wireless digital classroom microphone

FOB Price

Negotiable / Set

10 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.2.4g wireless digital classroom microphone
2.HDCD sound quality
3.Easy to use
4.Frequency Response: 20-20KHz,

2.4g wireless digital classroom microphone

1. Transmit frequency 2400-2483 MHz; 80 channels offered;

2. Complete digital transmission,high anti-resistance capability;

3. Sampling rate: 96K at 16bit ; Frequency Response: 20-20KHz,
HDCD sound quality;

4. The shortest latency(<0.5ms), Surround sound;

5. ID pair function, receiver will trace the signal from Handheld Microphone intelligently.

6. Rechargeable battery or dry battery can be used in wireless microphone;

7. LCD screen of receiver displays signal status,channel and frequency.

8. Easy to use,convenient to install; black, silver and light golden colors lfor option. Flexible in design and support customization.

Electrical Specification:

Description	Handheld Microphone (Transmitter)	Receiver
Work voltage	3V DC	9V DC
Work current	Max 120Ma	Max 300mA
Operation Temperature	-15 - 65°	-15 - 65°
Frequency Range	2400 - 2483 MHz	2400 - 2483 MHz
MODULATION	GFSK
Channel Space	1MHz	1MHz
Frequency stability	150KHz	150KHz
Baud rate	2M bps	2M bps
Optional Channels	80 CH	80 CH
RF Distance	30~ 50M (actual test in an open area)
Transmit Power	18dBm
Output Level	260mv (max)
Sensitivity	-90dBm
Frequency Response	20 - 20000Hz (-3dB)
latency	< 0.5 ms
Sampling ratio	48kHz at 16 bit
Signal-to-Noise Ratio (SNR)	95 dB
THD Distortion	0.1 % at 1kHz
Dynamic Range	90dB
