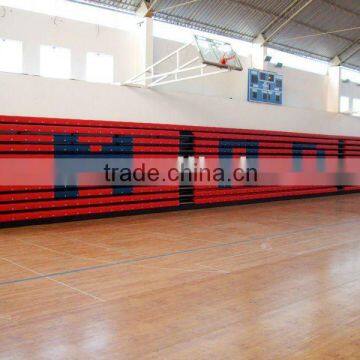

Arena retractable tribune telescopic chair flex grandstand seating system. portable indoor

Material	Metal		Metal Type	Iron
Folded	Yes		Size	adjustable
Place of Origin	Guangdong, China		Brand Name	Avant
Model Number	telescopic system

Specifications

sport facility retractable tribune telescopic seating flex grandstand
1,long life time,
2,comprtitive price
3,nice look

Arena retractable tribune telescopic chair flex grandstand portable system

Model:

Vogue

Size:

Width:305mm,length: 452/456mm,Height :165/435mm, center

distance: 457mm(or wider), Step height: 300mm,Step width:

850mm.

The ability of loading:

The telescopic not only bear the weight of structure, but also the

around the load ≥36kg/m²,For the rail,Horizontal loads≥65kg/m²,

Horizontal loads≥100kg/m².

The seat and backrest:

HDPE Blow mold craftwith inner steel support,curve design,anti-

static,wall thickness: 3mm,Uniform wall thickness ,fabric cushion

is optional.

Power supplier:

Operation Fashion: Remote control, Pendant Control,Power:

380V,0.37KW(0.55KW),50HZ, Features: Small impact, Smooth

operation, Maintenance Free.

Seat beam:

Use the high quality of Q235 rectangular tubes

60mm×40mm×3.75mm,The combination of structural steel can be

installed apace,the on-site welding is forbidden.Installation,Each

structure is made up by the Q235 steel plate which is bending

forming the thickness is more than 2 MM.

Feet column armrest:

Galvanized steel,the steel components is dealed wih the

sandblasting,Then use the phosphate cleaning system finish the

process of retreatment, powder coating will be operated by the

large automatical powder coating production line,the thickness is

80-120μm. The armrest is made by PE,it is nice look and durable.

Hinge system:

The system is made up by Permanent lubrication connecting rod

wall,two Independent hinge and two pcs  two-way function lifting

systerm of spring , the hinge system can be operated more than

350,000 times and Lubrication fatigue and bearing wear which can be

measured won't happen.

Chair turnover:

Use Pedal device easy to operate, and hard to  damage,avoid

danger.

Casters:

The material of casters of the steel structure of the stand is made by

the Polyurethane materials, the beaing capacity of the Double bearing

casters is more than 250kg/m²,when it is rolling, it won't leave any

track on the floor.

Deck:

Use the high quality environmental multilayer solid wood (the thickness

is 18mm), High temperature model,The surface covers wear-resisting

and anti-skidding floor glue, the Nose& Riser beam is made by the

aluminum alloy.  Section bar  covers the boundary beam with the

YMFHT.

Other requires:

The material of the rails is 40*40*2.0 steel tube which is installed and

welded with the standard Round Stee

Our projects including:

2008 Beijing Olympic Games

2010 China Shanghai EXPO

2010 F1 Korea

2011 Universiade Shenzhen(exclusive seating supplier)

2007-2012 F1 Singapore

2013 China Tianjin East Asian Games
