stainless steel bird netting

Place of Origin	Hebei, China		Brand Name	YT
Model Number	YT-ZOO MESH

Specifications

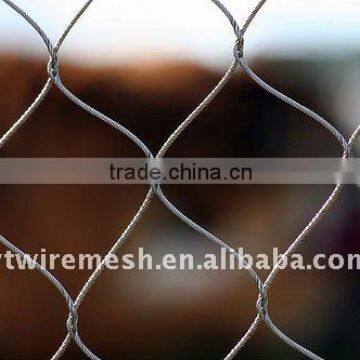

stainless steel bird netting/zoo mesh
1.material:SS304/316(L)
2.usage:zoo mesh
3.feature:flexibale,beauty,etc

Stainless Steel Ferruled Rope Mesh/Protective Zoo Mesh/stainless steel bird netting/aviary mesh/animal enclosure/aviary mesh



Stainless Steel Cable Mesh is used high  quality stainless steel wire cable, the stainless steel grade includes type 304(L)/316(L);







 Feature:



 1.rhombus mesh,

2.with excellent flexible perforance,virtually indestructible, most impacting-resistant and breaking resistance force, most   resisting rain, snow,hurricane

3.the life span will be more than 30 years



Usage:it can be safely contain any species on land, in the air indoors or out. for the construction of Animal Enclosure, Animal     Cage, Aviary mesh, Bird Cage and Bird Netting



Type: The SS Cable Mesh are hand-made from the stainless steel wire rope, there are two types: knotted mesh and ferruled mesh;

  1.knotted mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.
   2.ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.



 Specification List

Code	Wire Rope Construction	Min. Breaking Load (KN)	Wire Rope Diameter		Aperture
			Inch	mm	Inch	mm
YT-3210	7x19	8.735	1/8	3.2	4" x 4"	102 x 102
YT-3250	7x19	8.735	1/8	3.2	2" x 2"	51 x 51
YT-2410	7x7	5.315	3/32	2.4	4" x 4"	102 x 102
YT-2076	7x7	3.595	5/64	2.0	3" x 3"	76 x 76
YT-2050	7x7	3.595	5/64	2.0	2" x 2"	51 x 51
YT-2038	7x7	3.595	5/64	2.0	1.5" x 1.5"	38 x 38
YT-1650	7x7	2.245	1/16	1.6	2" x 2"	51 x 51
YT-1638	7x7	2.245	1/16	1.6	1.5" x 1.5"	38 x 38
YT-1625	7x7	2.245	1/16	1.6	1" x 1"	25.4 x 25.4
YT-1250	7x7	1.36	3/64	1.2	2" x 2"	51 x 51
YT-1238	7x7	1.36	3/64	1.2	1.5" x 1.5"	38 x 38
YT-1225	7x7	1.36	3/64	1.2	1"x1"	25.4x25.4
