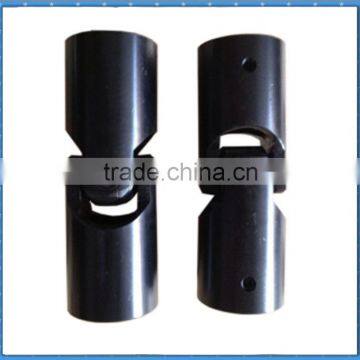

custom made stainlese unoversal joint couplings

1.Suitable for connection of space on the same plane two axis angle is less than or equal to the transmission of 45 degrees.Transfer nominal torque11.2-1120N.M.

2.WSD type is a single cross universal coupling, WS is a double cross universal coupling.(G is single type,GD is double type.)

3.The maximum axis of each section is 45 degrees.

4.Hole can be opened according to requirements,like key seating, six square hole and square hole.

5.The angle between the two axes is allowed to changed in a limited range as the work requirements.



Sizes Of Universal Coupling:

1.About quality

Quality is our life . We only use the material with best quality and all products are strictly selected and tested by our QC department, thus to ensure the goods you receive will fulfill all your needs.

2.About process

We can offer end machining, this is one standard end machining drawing, if you have special requirement, please do offer us your drawing, but there will be an additional end machining cost.

3.About payment

We accept payment via A: 30%T/T in advance,70%T/T against B/L; B: L/C At Sight; C: Western Union.

4.About customize

We have our own R & D to help customers solve the problem of non-standard couplings according to your requirements.

1. How to choose a suitable shaft couplings?

(1) Please confirm the size of coupling you need.

(2) What is the material you need, please?

(3) What is the outer diameter, inner diameter and length you need, please?

(4) What is the requirement on torque, speed and etc.

2. What should I do, when I discover the broken products?

Contact us at the moment you receive goods.

3. How can I get some samples?

Welcome your trial order! We are honored to offer you samples.

4. What is your minimum order price?

It's depend on the size of the products.
