Product Details
| Place of Origin | Jiangsu, China | Brand Name | XCMG | |
| Model Number | XRS1050 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Name

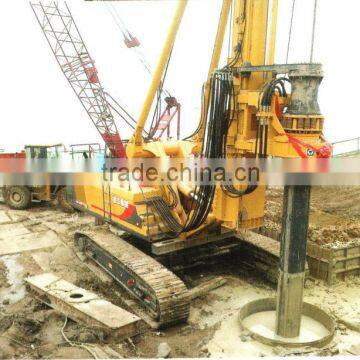

XCMG XRS1050 Rotary Drilling Rig
Product Introduction
1. The imported Kawasaki hydraulic parts can achieve reasonable powertrain matching and high construction efficiency.
2. The imported Cummins engine can minimize fuel consumption with the help of two optional accelerator control modes.
3. The working amplitude of auxiliary winch is increased, which can hoist light and small objects and save cost as well.
4. It introduces the proorietary intelligent control system, CAN bus and PLC, including automatic/manual adjusting of drilling mast verticality, depth automatic detection and display, intelligent fault diagnosis and control.
Product Specification
Main Technical Data
| Engine | Model | CUMMINS QSM11-C400 | |
| Rated Power | kW | 298 | |
| Rotary Drive | Max.output torque | kN.m | 390 |
| Rotary speed | r/min | 7-18 | |
| Max. Drilling Diameter | mm | Ø2500 | |
| Max. Drilling Diameter | m | 105 | |
| Pull-Down Cylinder | Max. pull-down piston push | kN | 240 |
| Max. pull-down piston pull | kN | 250 | |
| Max. pull-down piston stroke | m | 6.0 | |
| Main Winch | Max. pulling force | kN | 400 |
| Max. line speed | m/min | 60 | |
| Auxiliary Winch | Max. pulling force | kN | 100 |
| Max. line speed | m/min | 65 | |
| Mast Rake/Side/Forwards/Backwards | ± 4º / 5º / 15º | ||
| Undercarriage | Max. traveling speed | km/h | 1.2 |
| Max. grade ability | % | 35 | |
| Min. clearance | mm | 445 | |
| Track shoe width | mm | 800 | |
| Distance between tracks | mm | 3500∼4800 | |
| Hydraulic System Working Pressure | Mpa | 35 | |
| Overall Drilling Weight | t | 114 | |
| Dimension | Working condition | mm | 10265× 4800× 27520 |
| Transportation condition | mm | 17615× 3500× 3535 | |
Product Advantage
1. Good raw material and fine workmanship .
2. High temperature,high pressure,high wear resistance .
3. Own complete production chain,independent research and development group .
4. our products are available in different specifications and dimensions and we offer these products at reasonable prices. we manufacture these products using high class raw materials using sophisticated technologies .
5. Professional tracing service,range from half to one year maintenance period.
Xuzhou Reman Construction Machinery Remanufacture Co., Ltd is located in xuzhou, the earliest place to research and development, production base of rotary drilling rigs in China. The company is specialized in selling new rotary drilling rigs, full -rotary drilling rigs and other piling machine; has complete industrial chain of researching and development, manufacturing and marketing various buckets, supply spare parts; also engages in evaluating and trading second-hand rotary drilling rigs.
Xuzhou Reman Construction Machinery Remanufacture Co., Ltd has many year's technical advantages, professional and experienced maintenance team; with moving maintenance shop--special vehicle for rigs field service; and advanced testing equipment, professional repairing workshop, spare parts warehouse, perfect testing methods and management system, all of these ensure the quality of our service and woke efficiency.
