Piling Rig Machine XCMG APFXWX1000 Casing Oscillator, Hydraulic Rotary Piling Machine
- 100 Piece / Pieces per Month
- Shanghai or Tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High Quality Drilling Machine XCMG APFXWX1000 Casing Oscillator for Sale
-
Professional Manufacturer Bore Rotary Piling Rig XCMG APFXWX2000 Casing Oscillator
-
Piling Rig Machine XCMG Casing Oscillator, Hydraulic Rotary Piling Machine
-
XCMG Rotary Hydraulic Casing Oscillator Construction Machinery
-
High Quality Drilling Machine XCMG Casing Oscillator for Sale
-
Professional Manufacturer Bore Rotary Piling Rig XCMG APFXWX2500 Casing Oscillator
Product Details
| Place of Origin | Jiangsu, China | Brand Name | XCMG | |
| Model Number | APFXWX1000 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Name
Piling Rig Machine XCMG APFXWX1000 Casing Oscillator, Hydraulic Rotary Piling Machine
Product Specification
APFXWX Rotary Draulic Casing Oscillator | APFXWX10 | APFXWX12 | APFXWX15 | APFXWX17 | APFXWX19 | APFXWX20 | APFXWX22 | APFXWX25 |
| Max Diameter A/mm | Φ1000 | Φ1200 | Φ1500 | Φ1700 | Φ1900 | Φ2000 | Φ2200 | Φ2500 |
| Working Pressure /Mpa | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 |
| Torque /KN.m | 1070 | 1980 | 2530 | 2640 | 4630 | 4720 | 5520 | 5500 |
| Stroke /mm | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Lifting Force/KN | 1520 | 2140 | 2500 | 2500 | 2940 | 3100 | 3100 | 3690 |
Clamping Force /KN | 940 | 1270 | 1470 | 1470 | 1846 | 2400 | 2400 | 2400 |
| Oscillating Angle | 24º | 24º | 24º | 24º | 24º | 24º | 24º | 24º |
| Overall Weight /t | 9 | 16 | 20 | 22 | 26 | 36 | 38 | 42 |
| Chassis Width B/mm | 2080 | 2450 | 2640 | 2790 | 3026 | 3310 | 3700 | 3930 |
| Mounting Width C/mm | 850 | 1150 | 1245 | 1245 | 1560 | 1680 | 1674 | 1694 |
| Machine Length K/mm | 5330 | 5955 | 6205 | 6271 | 7854 | 8207 | 8724 | 9971 |
| Clamp Length Q/mm | 510 | 560 | 640 | 640 | 740 | 740 | 800 | 800 |
| Machine Height R/mm | 1440 | 1685 | 1685 | 1685 | 2000 | 2082 | 2106 | 2268 |
| Connectiong Box Width D/mm | 600 | 740 | 960 | 960 | 1000 | 1130 | 1195 | 1195 |
| Rear Body Width E/mm | 1050 | 1350 | 1530 | 1530 | 1770 | 1770 | 1770 | 1827 |
| Mechanical Back-End Space F/mm | 2680 | 3170 | 3326 | 3641 | 4110 | 4756 | 5020 | 5607 |
| Mechanical Front Space G/mm | 1440 | 1612 | 1750 | 1849 | 2172 | 2272 | 2422 | 2464 |
| Ounterweight Plate Length H/mm | 1250 | 1282 | 1282 | 1282 | 1282 | 1282 | 1282 | 1900 |
| from the Front of Clamp to Clamp Center Distance I/mm | 1100 | 1258 | 1374 | 1439 | 1725 | 1956 | 2184 | 2394 |
| Rear Body Height L/mm | 880 | 880 | 970 | 1030 | 1280 | 1280 | 1280 | 1900 |
| Connection Box Height N/mm | 610 | 610 | 610 | 610 | 610 | 610 | 710 | 710 |
| Connection Box Pin Shaft Trip O/mm | 60 | 100 | 100 | 100 | 100 | 150 | 150 | 150 |
| Mechanical Fixture Height O/mm | 880 | 965 | 1095 | 1142 | 1310 | 1340 | 1482 | 1659 |
Product Advantage
1. Adopts hydraulic transmission, enegry saving, high efficiency, low noise & low cost .
2. High temperature,high pressure,high wear resistance .
3. The unique design for the pump group make it convenient maintenance, and reduce maintenance cost .
4. Equipped with high or medium pressure air compressor with high speed hole drilling ability.
5. According to the function layout, install valve, handles, convenient operation.
Xuzhou Reman Construction Machinery Remanufacture Co., Ltd is located in xuzhou, the earliest place to research and development, production base of rotary drilling rigs in China. The company is specialized in selling new rotary drilling rigs, full -rotary drilling rigs and other piling machine; has complete industrial chain of researching and development, manufacturing and marketing various buckets, supply spare parts; also engages in evaluating and trading second-hand rotary drilling rigs.
Xuzhou Reman Construction Machinery Remanufacture Co., Ltd has many year's technical advantages, professional and experienced maintenance team; with moving maintenance shop--special vehicle for rigs field service; and advanced testing equipment, professional repairing workshop, spare parts warehouse, perfect testing methods and management system, all of these ensure the quality of our service and woke efficiency.

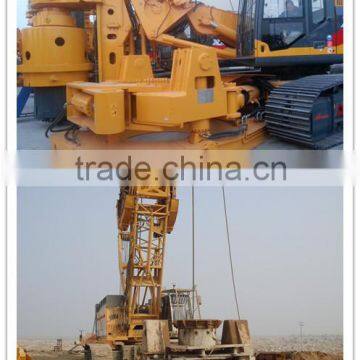

Construction Cases
Certifications
Standard exporting packing, suitable for shipment.
Weclome to visit our website:reman.en.china.cn!
