2*32 PLC Fiber Optic Splitter for CATV Systems & Fiber Sensors
You May Like
-
Good quality 1 * 8 / 1*32 PLC Fiber Optics Splitter
-
ABS Package, 0.9mm cable 1 * 8 PLC Fiber Optic Splitter
-
Shenzhen factory supply 1 * 8 PLC Fiber Optic Splitter
-
ftth optical fibre coupler 1*8 with 8 cores optical splitter
-
1x32 PLC fiber optic splitter with sc/apc connector
-
single / multimode rack-mount fiber optical splitter 1*4 plc
Product Details
| Place of Origin | Guangdong, China | Brand Name | FIBERHK | |
| Model Number | 2*32 PLC Fiber Optic Splitter |
Product Description
Specifications
Environmental stableVariety of connectors available
1x2, 1x4 and 1x n customized couplers configuration available
2×32 PLC Fiber Optic Splitter for CATV Systems & Fiber Sensors

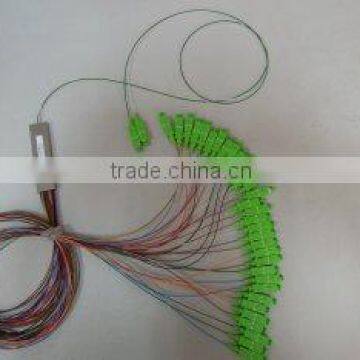

Steel tube, 0.9mm, 1M cable, SC/APC connector
Optical coupler is an optical device that combines or splits power from optical fibers.
Optical splitter divides light from a single fiber into two or more fiber channels.
Features:
Various coupling ratio
Single mode and multi mode available
Low insertion loss, low PDL
Environmental stable
Industry standard and custom housing available
Variety of connectors available
1x2, 1x4 and 1x n customized couplers configuration available
Applications:
Optical communication system
System and signal monitoring
CATV Systems & Fiber Sensors
Fiber to the home (FTTH)
Network redundancy
Laser splitting
Specification:
Parameter | Configuration | |||
N x 4(N=1, 2, 16) | N x 8 (N=1, 2, 8) | N x 16 (N=1, 2, 16) | N x 32 (N=1, 2, 32) | |
Operate Wavelength(nm) | 1310/1550, or customized | |||
Bandwidth(nm) | ±20 | |||
Max.Excess Loss(dB) | 0.2 | 0.3 | 0.4 | 0.5 |
Typ.Insertion Loss(dB) | 6.2 | 9.3 | 12.4 | 15.5 |
Max.Insertion Loss(dB) | 6.8 | 10.2 | 13.6 | 17 |
Uniformity(dB) | 1.2 | 1.8 | 2.4 | 3 |
PDL(dB) | 0.08 | 0.12 | 0.16 | 0.2 |
Thermal Stability(dB) | 0.2 | 0.3 | 0.4 | 0.5 |
Directivity(dB) | ≥60 | |||
Operate Temperature(°C) | -20~+70 | |||
Lead Length(m) | 1 or customized | |||
Lead Type(mm) | φ3.0, φ2.0, φ0.9 | |||
Package Dimension | A:φ3.0, L=50 | B:89*19*8 | C:99*79*9 | D:140*114*18 |
(mm, L*W*H) | ||||
