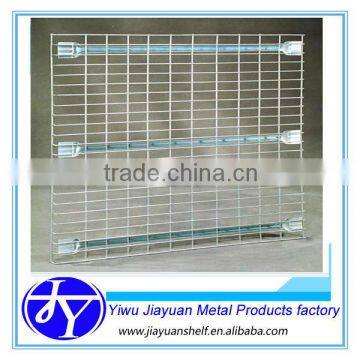

wire mesh Grid panel

wire mesh Grid panel

Specification

1,size:1100*1075

 2, wire dia:4-6.0mm

3,wire mesh :50*50, 50*100,25*100

4,Loading capacity:500kg-2000kg

5,Material: Q235 or   Q195

6,strenfht bar: steel bar with 1.5mm, 1.6mm,1.8mm thickness ,making wire more strong.

7,Any size and thcikness is available

8,surface finish : zinc

9,Deck 1100mm Deep, 2 Beam Box-Box, 1075mm Nominal width, 544kg Max. UDL

Wire Decking to suit 2 beam layout with 1080 mm nominal width with
Standard channels and a 25x100 mesh to support 544kg of Universally Distributed
Load (UDL). Featuring external waterfalls on both sides of the deck to
eliminate catch points and sharp edges.

10,Zinc Plated finish

Overall deck width is 1179 mm
Featuring mesh with 25mm top wire pitch and nominal 100mm bottom wire pitch
Designed to support a load of 544 kg per deck applied as a Universally Distributed
Load (UDL) as specified in ANSI MH 26.2 - 2007

Some more detail and size :

Any size is available ,pls check the followings reference size:

Features:

1) Allows for free passage of water so overhead sprinklers operate effectively.

2) Qualifies for a reduction in Fire Insurance premiums.

3) Reusable trip after trip

4) Stay cleaner because dirt can’t build up on wire grid.

5) Don’t have a disposal fee.

6) Lighter in weight and easy to handle.

7) Won’t rot or splinter and have no nails.

8) Build products to your specifications.

9) Finish:Zinc plated or hot dip zinc or powder coating.

10, Deck 1100mm Deep, 2 Beam Box-Box, 1075mm Nominal width, 544kg Max. UDL
Wire Decking to suit 2 beam layout with 1080 mm nominal width with
Standard channels and a 25x100 mesh to support 544kg of Universally Distributed
Load (UDL). Featuring external waterfalls on both sides of the deck to
eliminate catch points and sharp edges.

Advantages:

Wire Mesh Decking is commonly used as a safety measure on selective pallet rack to prevent pallets or the products stored on them from falling through the rack structure.

Wire mesh decking comes in various thicknesses and mesh dimensions.

Wire mesh construction also allows for easy identification of shelf contents and prevents dirt and other debris from accumulating on the shelves because of the holes in the mesh.

It is also recommended as a safety feature because the wire mesh allows for the sprinkler systems to work more efficiently should there be a fire in the workplace.

products pictures showing:

Some Size drawing

The Pictures showing between wire panel and pallet rack beam"

packing and shipping

packing: Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack for wire deck panel.

VI Company description

Our Jiayuan company is an factory manufacturing the supermarket and warehouse tools mainly like supermarket shelf , rack, wire shelf, basket, checkout counter, hooks and trolley, warehouse rack and so on. We are professional in making and designing varies shopping cart, also we can make it according to your requirement.

So we can supply a lower factory (invoice) price and some perfect foreign trade process. If you are interested in our products, please feel free to contact us, there are various color, style, and sample for your selection. For more about us, please visit our website: www.jiayuanshelf.en.china.cn, We will be at your service any time or you can contact with me directly at any time.
