Home > Products > Tire rack/Tyre rack/Stacking rack > light truck folding rack
light truck folding rack
- nanjing/shanghai
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Jiayuan | |
| Model Number | JY-TR01 | Type | Other, Stacking Tire rack, Stacking Tire rack | |
| Material | Steel | Feature | Corrosion Protection | |
| Use | Warehouse Rack | Certification | CE | |
| Depth | 1.5-4.0mm | Weight Capacity | 1136 | |
| Width | 1257mm | Height | 1740mm |
Product Description

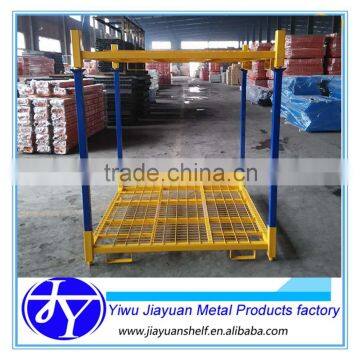

light truck folding rack
Rack introduction:
The Passenger and light truck folding rack is much more versatile than pallet racking, mezzanines used too often in the warehouse. These portable modular racks are easy to stack and move around with a forklift: 2 can be moved at once when filled with tires,and 10 when empty and folded down.Moreover, they help you quickly and simply rearrange your floor space, and require less handling time than pallet racking.
Each rack can hold 28 to 32 tires stored on their treads.Thus,each tire is easily accessible and different tire makes,size, and types can be stored on the same rack. With four middle bars removed,40 to 50 interlaced tire can be stored.This configuration accommodates the greatest number of tires per square foot (35% more than on treads).However, it is usually better, though not necessary,that tire be of the same type when interlaced because access to the bottom of the rack is limited. This type of storage is a highly economical solution for larges volumes.
The Passenger and light truck folding rack can be folded down to reduce shipping cost and save floor space during slow periods.When folded down, 80% of the storage space is regained and racks can be stacked 20 high. Many tire distribution centers and warehouses keep a dozen passenger and light truck tire racks folded down st the loading dock in addition to a few that are kept open to quickly unload incoming tire shipments.
I:Feature:
1, size: L1816*W1257*H1740 , and any size is customized,too.
2,Loading capacity: 1136kg/set, 2 layers. And any capacity is available.
3,Type: New style ,foldable, High Utilization, convenience,save space.
4, the material:
Base:
Square Tube :L1816 mm 50*50*1.5mm
Square Tube L1257 mm 60*60*1.5mm
Square Tube :L1816 mm 60*60*4.0mm
Square Tube L1257 mm 50*30*1.5mm
Stack Bowl
Post:
Square Tube L1700mm 50*50*2.0
Thickness can be changed,tks.
5, Surface finish: Powder coating.
6,Process:Moulding+ Acid cleaning/or Sand cleaning+ Phosphating+ Degrease+ Dryness+ Powder coat+ Polymerization
7,Approximate weight: 100kg/set
8, suitable for forklift.
II Multi-faceted Picutres
OTher type truck rack
It is packed by bubble foam...
Tire rack package pictures:
We are one of experienced manufacturer ,marketing Supermarket Equipment:shelving, baskets, counter, hooks, cabinet,trolley;Warehouse Racks: Dirve-in rack, Cantilever rack, plastic pallet, steel pallet, wire panel, storage cage,warehouse trolley,and so on; and Related Accessories with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in business service equipment, supermarket and warehouse and other industries. To keep up with international trends, we are constantly developing new products to meet the needs of clients from all over the world.
Our products are widely used in shopping malls, supermarkets, plant warehouses, and circulation fields across China. For the overseas markets in Europe, America, the Middle East, East Asia and Southeast Asia, our products have received universal praise from local customers.
Our 2014 new hot-sale products: Tire racks, Wire panel, supermarket shelf, pallet rack ,steel pallet,shopping trolley
By continually adhering to High Quality,Competitive Price and Timely Delivery.we warmly welcome you to visit and cooperate with us.
Pls kindly inform us the below information to make a quotation:
1. AUTO CAD drawings
2. Width, height, length of rack,
3.Loading capacity of rack
4. LAR Color you want
