Warehouse Storage Iron Rack

warehouse storage iron rack     (Jiayuan Brand, Model: JY-GT002)

Features:

1, Suitable for storing small variety but large quantity goods;

2, Highest space utilization for warehouse storage among standard racks;

3, Each aisle has several layers of pallet support rail which pallets can be stored on it well one by one;

4, Convenient for forklift operation along the aisle;

5, Top and back bracings are fixed to the rack that makes it more stable and safer;

6, First layer pallets can be stored on the floor;

7, Surface treatment: powder coating, galvanized;

8, Widely used in food industry, especially for cold store.

Main Parts:

1, Upright Section: 80*60/65/67mm, 90*60/67/78mm, 100*67mm, 120*95mm, etc;

2, Beam Section: 60*40mm square tube, 80*40mm square tube, 80*50 C/C beam, 100*50mm square tube;

3, Top & back bracing: 40*29/34/39mm;

4, Pallet support rail, upright protector, and guard rail, double-side bar, single-side bar and all necessary components.

For quote, please provide us below details:

1, CAD/PDF drawing of the warehouse (if available), or sizes of the warehouse (length, width, clear height);

2, Size & weight of the pallet (length, width, height, ? kg);

With having above info, we will provide you free warehouse layout design and competitive price with good quality guarantee.

What makes us different from others?

1, Our excellent Service

For quote, we reply you within 24 hours, for questions, only 1 hour, or just call me 0086-158 6891 8935, we answer you immediately.

2, Our fast lead time

More than 400 workers enable us to guarantee the lead time, normally 7-15 work days for 1*40’ container.

3, Our quality guarantee

Excellent safety design and best quality control guarantee our quality at least 3 years. And we passed CE, ISO, SGS and TUV certificates.

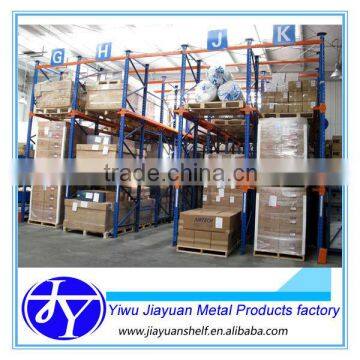

Pictures Showing:
