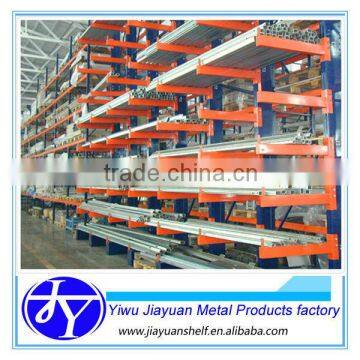

warehouse storage rack cantilever rack

warehouse storage rack cantilever rack

Cantilever racking is mainly composed of columns, and other components of the cantilever beam, connecting rod, its characteristic is overhanging cantilever structure and lighter, load power, the deposit not specifications or long bar material, can greatly improve the utilization rate of the warehouse and work efficiency. ANd bracket can be one-sided or two-sided. Increase the wood or steel case board, particularly suitable for small space, low density of warehouses, convenient management and vision. Widely used in mechanical processing and building materials supermarket industry.

Features:

1, The overall stability is good, easy to install, complete accessories;
2, Light structure but good load capacity;
3, Suitable for small space, low height of warehouse, space utilization high;

4, Composite structure, high quality steel, plastic sprayed in the surface and color optional;

5, Size and capacity can be fixed by users, allows extra long items to be stored;

6, Mainly used for the storage of long, circular or irregular shape goods;

7, Columns with H type Or cold rolled section steel;

8, Arm using square tube, cold rolled steel or H Steel;

9, Between the columns and arms is to be connectedin plug type or bolt connection type;

10, The base and pillar in the bolt connection type, using cold rolled steel or base plate H Steel.

Pictures showing:

Arms, standing showing:

Frame :

High load capacity up to 21000kg.

1, Frames include all the elements needed for assembly: bracing, feet and nuts & bolts

2, Blue epoxy coated (RAL any color).

3, Standard heights : From 2 -11.5m

4, Adjusted by 75mm pitch.

 Beams:

 High load capacity up to 4200kg.

 1, Manufactured with the highest quality steel.

 2, Orange epoxy coated (RAL 2004).

 3, Lengths available: 1850/2250/2700/3300/3600/3900mm

 4, Boltless connection with 3 or 4 connector hooks.

 5, A security pins per beam to prevent accidental dislodgement.

 6, Powder coating finish

Standard Exporting Package for Cantilever Rack in the container, also special package is avaliable based on customers' exact requirements.

1, AUTO CAD drawings

2, Width, height, length of the shelf

3, Size of your warehouse

4, How many bays and layers you need?

5, Loading capacity of each layer

6, LAR Color you want

Our Jiayuan company is an factory manufacturing the supermarket and warehouse tools mainly like supermarket shelf , rack, wire shelf, basket, checkout counter, hooks and trolley, warehouse rack and so on. We are professional in making and designing varies shopping cart, also we can make it according to your requirement.

So we can supply a lower factory (invoice) price and some perfect foreign trade process. If you are interested in our products, please feel free to contact us, there are various color, style, and sample for your selection. For more about us, please visit our website: www.jiayuanshelf.en.china.cn, We will be at your service any time or you can contact with me directly at any time.
