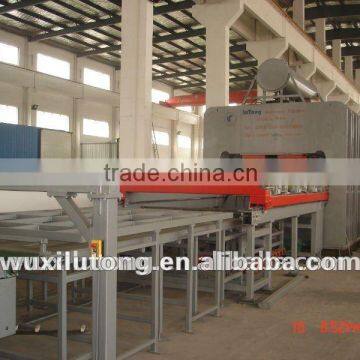

YX 2400 7X9 Automatic Lamination Press Line

Specifications

The main technical parameter of 2800T 7×9 hot press machine automatic line

1, Total pressure: P=28000KN

2, Size of heating plate: 2900mm×2300mm

3, Board size: 2150mm×2750mm

4, Main cylinder: D=420mm  Quantity:8

5, Daylight: H=270mm

6, Loading in width direction, Paper feed manually, automatic trimming

Details of Line:

 1)            Loading lifter

 Gross weight:   1000 kg

 Function: Feeding the pallet of board to the lifter. Then it will hold in the right position to make the board loading easily. It was control by the hydraulic system and photo electricity reply.

  2)            Loading Belt table

Gross weight:   1000 kg

Function: Worker can lay down the paper with board together, and it will transfer into the press automatically. We using Germany brand Moto.

3)            Main press

Gross weight: 58000 kg

 Function: Laminated the products. With extra support part to enlarge the strength of machine body. Main hydraulic valve was using germany brand. It request cooling system for hydraulic system and secondary recycling heating system for heating plates.

4)            Vacuum Unloading system

Gross weight: 2000 kg

Function: After laminated, the vacuum unloading plate will take out the board inside the press. It avoid the scratch of the board and make the worker’s job easy.

5)            Unloading lifter

Gross weight:   1000 kg

Function: Lay down the board to the lifter. It can hold in the right position to make the board unloading easily. It was control by the hydraulic system and photoelectricity reply.

6)            Cooling System for hydraulic oil(Option)

Gross weight:   400 kg

Function: Cooling down the hydraulic oil’s temperature and extend the lift of hydraulic parts.

7)            Secondary recycling heating system (Option)

Gross weight:   500 kg

Function: The pipe system with temperature control valve can keep the temperature correctly and make sure it changed in small Torrance. It was the best solution for heating system.
