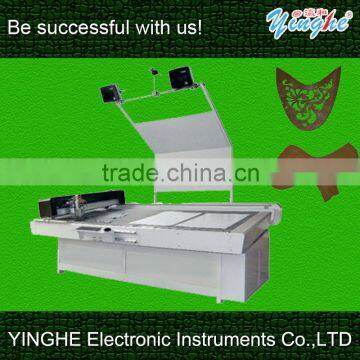

YH-1510-P Genuine leather cutting and punching machine

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	yinghe
Model Number	YH-1510-P		Cutting Speed	800mm/s-1200mm/s

1. 1500x1000mm
2. cutting Genuine leather
3. punching Genuine leather
4. with projector system
5. machine include computer

Specification

1. The first unique Design in the Industry-- Triple Punch unit—which can simultaneously handle three punch hole specifications to give more flexibility for designer to make out their own design.
2. Imported Swiss high speed servo motor, up to 25000rpm,to achieve high speed and perfect cutting ability.
3. high resolution short focus top projector,1:1 Graphic output, make the workflow more easy and clear. The more clear and intuitive workflow.
4. Independ suspension design for projector stand to avoid vibration, it enable projection more stable and clear.
5. Personalized interactive function, to make better layout, cutting, rewinding at the same time, maximize efficiency of equipment.
6. Highly integrated multi-function head can work simultaneously cutting, punching, drawing and marking processes.
7. all data cable are Germany imported, to make stability data transmission.
8. Ethernet port is used to avoid data loss, noise and electrostatic effects to ensure stable data transmission.
9. Automation layout system was developed by our in-house professional team, to meet the industry demand: auto layout for PU and genuine leather cutting, increase efficiency, reduce wastage. The team make immediate response to future upgrade and demand from customers.
10.support international common use format like :DXF,HPGL,to avoid compatibility problem to workflow more easy.

Parameter

Model	YH-3216-P	YH-3212-P	YH-2510-P	YH-1510-P
cutting area	3200x1600mm	3200x1200mm	2500x1000mm	1500x1000mm
cutting speed	800mm/s-1200mm/s (computer operation and cutting machines can be used simulaneously for quick data transmission capable of continuous operations.
cutting thickness	0.5-6.0mm
Applicable material	Genuine leather, artificial leather, cardboard, plastic board, gray carboard, complex material, gasket, white board
Available material	Rotating knife, vibrating knife, punch, pressing pin
Driving motor	Serove motor/stepping motor
Optional pen type/seetings	water-based pen, oil-based pen, ball-point pen, silver pen/8 goups of pen and knife arrangement
Material fixed method	Vacuum suction
software resolution	0.07mm, 0.025mm, 0.01mm, 0.1mm can be optional
Transmission interface	Ethernet port
Buffer size	One time rapid transmission, form feed cutting
Command system	Compatible format of HP-GL.GP-GL and IPPG1
Control panel	LED display and touch control button
Transmission materials	Straight-line guide rails and imported synchronous belts
Vibration blade	Vibration cutter head motor at 25000rmp
Supply voltage	AC220V 380V ±10% 50HZ

Photo detail

Sample
