Home > Products > New mold steel > P20 Steel Plate Flat Steel For Mould Making

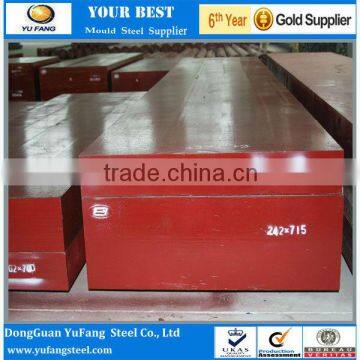

P20 Steel Plate Flat Steel For Mould Making
- Shenzhen
- T/T L/C D/P D/A
You May Like
Product Details
| Grade | P20/618/3cr2mo Plastic Die Steel | Standard | AISI, ASTM, BS, DIN, GB, JIS | |
| Thickness | 16-400mm | Width | 185-2200mm | |
| Length | 2000-5800mm | Place of Origin | Guangdong, China | |
| Brand Name | YuFang | Model Number | P20 1.2311 | |
| Application | precision mold steel | Technique | Forged | |
| Special Use | Mold Steel |
Product Description
Specifications
P20 Steel Plate Flatrolled or forged condition, Pre-harden &tempering , black surface, CHEAP PRICE!
Flat Bar, P20 Hot Rolled Steel , Wholesale price
Comparable steel:
Chinese | American | German | Swedish | Japanese |
GB | AISI | DIN | ASSAB | JIS |
3Cr2Mo | P20 | 1.2311 | 618 | PDS-3 |
Chemical Compostion:
Producer | C | Si | Mn | Cr | Mo | P | S | Ni |
YK P20 | 0.28~0.40 | 0.20~0.80 | 0.60~1.00 | 1.40~2.00 | 0.30~0.55 | ≤0.018 | ≤0.008 |
|
Bao P20 | 0.28~0.40 | 0.20~0.80 | 0.60~1.00 | 1.0~2.00 |
| ≤0.018 | ≤0.008 | ≤0.015 |
Bao B20H | 0.28~0.40 | 0.20~0.80 | 0.60~1.5 | 1.0~2.00 |
| ≤0.018 | ≤0.008 |
|
JX P20H | 0.3~0.45 | 0.2~0.8 | 0.6~1.0 | 1.35~1.7 | 0.1~0.25 | ≤0.035 | ≤0.035 |
|
JX 1.2311 | 0.35~0.45 | 0.2~0.4 | 1.3~1.6 | 1.8~2.1 | 0.15~0.25 | ≤0.035 | ≤0.035 |
|
3Cr2Mo | 0.28~0.40 | 0.20~0.80 | 0.60~1.00 | 1.40~2.00 | 0.30~0.55 | ≤0.018 | ≤0.008 |
|
1.2311 | 0.35~0.45 | ≤0.60 | ≤0.80 | 1.80~2.10 | 0.15~0.25 | ≤0.035 | ≤0.035 |
|
Delivery Condition:
Hot rolled, black, Hardness or tempered
Hardness: 28-34 HRC
Annealing: HBS<=235
Specification:
Thickness: 16/18/20……380/385/390/395/400MM
Width: 185/225/250……1800/2000/2200MM
Length: 2000-5800MM
character:
1. Good mechanical property, make surface have equal hardness after deal with it;
2. Nice polishing, mini roughness on the surface, deal with induraion in advance.
3. Can be used directly after the mould machined.
DG YUFANG Steel Factory Overview:
YUFANG main steel List
Standard | GB | DIN | ASTM | JIS | SS |
Cold work | Cr12 | 1.2080 | D3 | SKD1 |
|
C12MoV | 1.2601 | D5 |
|
| |
Cr12Mo1V1 | 1.2379 | D2 | SKD11 |
| |
Hot work | 5CrNiMo | 1.2714 | L6 | SKT4 |
|
4Cr5MoSiV1 | 1.2344 | H13 | SKD61 | 8407 | |
4Cr5MoSiV | 1.2343 | H11 | SKD6 |
| |
Plastic steel | 3Cr2Mo | 1.2311 | P20 |
| 618 |
3Cr2NiMo | 1.2738 | P20+Ni |
| 718 | |
42CrMo | 1.7225 | 4140 | SCM440 |
| |
4Cr13 | 1.2083 | 420 |
| S136 | |
3Cr17Mo | 1.2316 |
|
|
| |
10Ni3MnCuAl | 1.2735 | P21 | NAK80 |
| |
Carbon | 45# | 1.1191 | 1045 | S45C |
|
