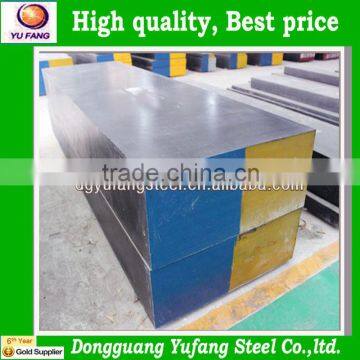

Steel Material 1.2738,718
- Shenzhen
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Grade | 1.2738 steel material | Standard | AISI, DIN, GB | |
| Thickness | 20~400mm | Width | 200~2200mm | |
| Length | 2000~5800mm | Place of Origin | Guangdong, China | |
| Brand Name | Yufang | Model Number | Din1.2738,P20+NI,718 | |
| Application | Plastic mould steel | Technique | Hot Rolled | |
| Special Use | Mold Steel |
Product Description
Specifications
Steel Material 1.2738,7181.Hot-rolled or Forging,Black Surface
2.100% UT pass
3.Dongguan Top10 Steel Factory
Steel Material 1.2738,718
| Comparable steel | DIN | AISI | ASSAB | GB | |||||
| 1.2738 | P20+Ni | 718 | 3Cr2NiMnMo | ||||||
| Size Specification | Round Bar | Diameter | Length | ||||||
| 60-300mm | 2000-5800mm | ||||||||
| Flat Bar | Thickness | Width | Length | ||||||
| 20-400mm | 200-2200mm | 2000-5800mm | |||||||
| Process | EAF + LF + VD + HOT ROLLED + Heat Treatment (optional) | ||||||||
| Heat Treatment | Normalized / Annealed / Quenched / tempered | ||||||||
| Delivery Condition | 1). Hot rolled or Forging;Black Surface/Machined;Hardened 2). Hardness:30~38HRC | ||||||||
| Characteristics | Good polishing and photo-etching properties, good machinability, high purity and good homogeneity, uniform hardness | ||||||||
| Application | Used for various large-sized or medium-sized precision plastic mould and low melting point alloy parts,like tim,zinc and Lead alloy casting mould. | ||||||||
Chemical Composition(For Reference Only):
| C | Si | Mn | Cr | Mo | Ni | P&S |
1.2738 | 0.35~0.46 | 0.20~0.40 | 1.30~1.60 | 1.80~2.00 | 0.15~0.25 | 0.90~1.20 | ≤0.035 |
718 | 0.32~0.40 | 0.20~0.80 | 1.00~1.50 | 1.70~2.00 | 0.25~0.40 | 0.85~1.15 | ≤0.03 |
3Cr2NiMnMo | 0.36~0.42 | 0.20~0.60 | 1.00~1.50 | 1.40~2.00 | 0.20~0.40 | 0.80~1.20 |
|
Cut the Steel and sides grinding
Polish and UT test
Pack and Shipment
Test report
Contact Us:
The main products we Supply:
Standard | GB (China) | DIN (German) | ASTM (USA) | JIS (Japan) | SS (Sweden) |
Cold work | Cr12 | 1.2080 | D3 | SKD1 |
|
| C12MoV | 1.2601 | D5 |
|
|
| Cr12Mo1V1 | 1.2379 | D2 | SKD11 |
|
Hot work | 5CrNiMo | 1.2714 | L6 | SKT4 |
|
| 4Cr5MoSiV1 | 1.2344 | H13 | SKD61 | 8407 |
| 4Cr5MoSiV | 1.2343 | H11 | SKD6 |
|
Plastic Tool steel | 3Cr2Mo | 1.2311 | P20 |
| 618 |
| 3Cr2NiMo | 1.2738 | P20+Ni |
| 718 |
| 42CrMo | 1.7225 | 4140 | SCM440 |
|
| 4Cr13 | 1.2083 | 420 |
| S136 |
| 3Cr17Mo | 1.2316 |
|
|
|
| 10Ni3MnCuAl | 1.2735 | P21 | NAK80 |
|
Carbon steel | 45# | 1.1191 | 1045 | S45C |
|
We are directly factory,can ensure the quality and price,can be your stable you Supplier !!!
