Inconel nickel chromium woven wire mesh 600 601 625 718
- Tianjin
- T/T Credit Card
You May Like
Product Details
| Place of Origin | China | Material | Other, Inconel 600 Wire | |
| Type | Weave Wire Mesh | Application | Filters | |
| Weave Style | Plain Weave | Wire Diameter | 0.02-3 | |
| Technique | Woven | Model Number | Inconel Wire Mesh 600 | |
| Brand Name | Chuntian |
Product Description

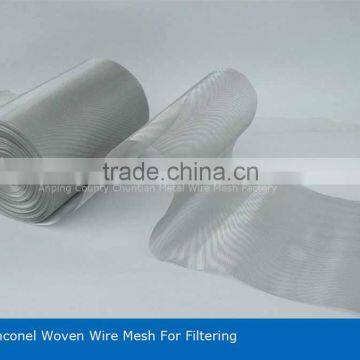

Inconel wire mesh
We supplies Inconel 600 Wire mesh from 2mesh to 200mesh. Inconel wire mesh is nickel-chromium alloy ,which is nickel base alloy.
Material Grade:
Inconel 600, 601,617, 625,718
Weave Pattern:
plain weave, twill weave
Packing:
waterproof paper + plastic cloth + wooden carton.
Feature:
Inconel wire cloth can be used in the temperature range from low temperature to 1093 degrees Celsius.No magnetic,oxidation resistance, very good cold-formed function,good weld ability, good corrosion resistance to the reducing environment of the medium intensity.
Inconel 600 Chemical Composition %
C | Mn | Fe | Cu | Ni | Si | S | Cr |
Max | Max | Max | Max | Max | Max | Max | Max |
0.15 | 1.0 | 6.0-10.0 | 0.5 | 72.0 | 0.5 | 0.015 | 14.0-17.0 |
Inconel Wire Mesh | ||
Mesh/Inch | Wire Diameter(mm) | Aperture(mm) |
2 | 1.6 | 11.10 |
4 | 0.91 | 5.44 |
6 | 0.71 | 3.52 |
8 | 0.50 | 2.67 |
10 | 0.50 | 2.04 |
12 | 0.45 | 1.66 |
14 | 0.40 | 1.41 |
16 | 0.30 | 1.28 |
18 | 0.25 | 1.16 |
20 | 0.25 | 1.02 |
30 | 0.21 | 0.64 |
40 | 0.19 | 0.45 |
50 | 0.15 | 0.36 |
60 | 0.15 | 0.27 |
70 | 0.13 | 0.232 |
80 | 0.12 | 0.197 |
90 | 0.11 | 0.172 |
100 | 0.10 | 0.154 |
110 | 0.09 | 0.141 |
120 | 0.09 | 0.122 |
130 | 0.07 | 0.125 |
140 | 0.07 | 0.111 |
150 | 0.06 | 0.109 |
160 | 0.06 | 0.098 |
180 | 0.053 | 0.088 |
200 | 0.053 | 0.074 |
waterproof paper+wooden box
