Home > Products > Crimped Wire Mesh > crimed wire mesh for mine sieving

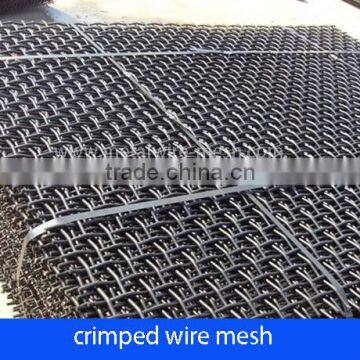

crimed wire mesh for mine sieving
- 100000000 Square Meter / Square Meters per Month
- Tianjin China
- T/T
You May Like
-
Low price High Quality Stainless Steel Crimped Wire Mesh For Chemical
-
Low price High Quality Stainless Steel Hooked Wire Mesh For Vibrating
-
Fiberglass Insect Screen 18X16 mesh Used For Window and Door
-
Fiberglass Moisquito Screen 18X16 mesh For Window and Door
-
blue,white,yellow color fiberglass mesh fibric for building wall
-
110g, 140g,160g alkali resistant fiberglass mesh
Product Details
| Place of Origin | Hebei, China | Material | Other, high carbon wire or low carbon wire | |
| Type | Weave Wire Mesh | Application | Other, sieving mine | |
| Weave Style | Plain Weave | Wire Diameter | 1.2mm to 6.0mm | |
| Technique | Woven | Model Number | CT-CRM | |
| Brand Name | CT |
Product Description
Pre-Crimp & Heavy Duty Wire Mesh
Wire, or space, cloth with a pre-crimp mesh is woven using wire crimped prior to weaving. The crimps are made at the points the shute and warp wires intersect which secures the wire, thereby stabilizing the wire cloth and preventing the wire from moving. Additional rigidity and strength can be obtained by adding crimps between the intersections, using an intermediate crimp. Crimped wire provides a more secure fit to the mesh, limiting movement of the space cloth. This results in more accurate and consistent opening sizes within the mesh
Pre-Crimp & Heavy Duty Wire Mesh Options
(1)Plain weaving
(2)Flat top
(3)Intermediate crimp also knows as inter-crimp and multiple crimp
(4)Lock crimp
Crimped wire mesh is used in the waste water, oil refining, mining, construction, safety and food processing industries for applications that require strength and large-hole filtering and screening. Pre-crimped wire cloth is also used in architectural and industrial design applications
Opening | Type | Wire Dia | Weight Per Sq. Foot | Percent of Open Area |
|
|
|
|
|
2.00" x 2.00" | Clear Opening Space Cloth | .250" | 1.79 | 79.00% |
1.75" x 1.75" | Clear Opening Space Cloth | .192" | 1.22 | 81.20% |
1.50" x 1.50" | Clear Opening Space Cloth | .162" | 1.02 | 81.50% |
1.25" x 1.25" | Clear Opening Space Cloth | .120" | 0.68 | 83.20% |
1" x 1" | Clear Opening Space Cloth | .105" | 0.5 | 83.90% |
3/4" x 3/4" | Clear Opening Space Cloth | .092" | 0.65 | 79.30% |
1/2" x 1/2" | Clear Opening Space Cloth | .080" | 0.71 | 74.30% |
3/8" x 3/8" | Clear Opening Space Cloth | .080" | 0.91 | 67.90% |
1/4" x 1/4" | Clear Opening Space Cloth | .080" | 1.28 | 57.40% |
|
|
|
|
|
.395" | 2 mesh | .105" | 1.442 | 62.40% |
.420" | 2 mesh | .080" | 0.83 | 70.60% |
.437" | 2 mesh | .063" | 0.512 | 76.40% |
.453" | 2 mesh | .047" | 0.284 | 82.10% |
.253" | 3 mesh | .080" | 1.264 | 57.60% |
.270" | 3 mesh | .063" | 0.776 | 61.30% |
.286" | 3 mesh | .047" | 0.428 | 73.60% |
.170" | 4 mesh | .080" | 1.721 | 46.20% |
.187" | 4 mesh | .063" | 1.048 | 56.00% |
.203" | 4 mesh | .047" | 0.576 | 65.90% |
1. in roll 2. in sheet 3. with edges 4. no edges
