TUV Quality Automatic Machine Steel Wire Straightening Machine
- Qingdao Erenhot Alataw Pass Shanghai Tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
TUV Quality Automatic Machine Steel Rod Straightening Machine
-
TUV Quality Automatic Machine Steel Coil Straightening Machine Machinery
-
TUV Quality Automatic Machine Steel Straightening and Cutting Machine
-
Quality Automatic Machine Steel Straightening & Cutting Machine
-
TUV Quality Automatic Machine Steel Rod Straightening and Cutting Machine
-
TUV Quality Automatic Machine Straightening Machine for Channel Steel
Product Details
| Condition | New | Type | Other, Straightener & Cutter | |
| Use | Bar | Place of Origin | Henan, China | |
| Brand Name | JOONNA | Model Number | 4-14a | |
| Voltage | 380V/410V | Power(W) | 11kw | |
| Dimension(L*W*H) | 2600*1000*1200mm | Weight | 1500kg | |
| Certification | SGS,CE,TUV,BV | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications

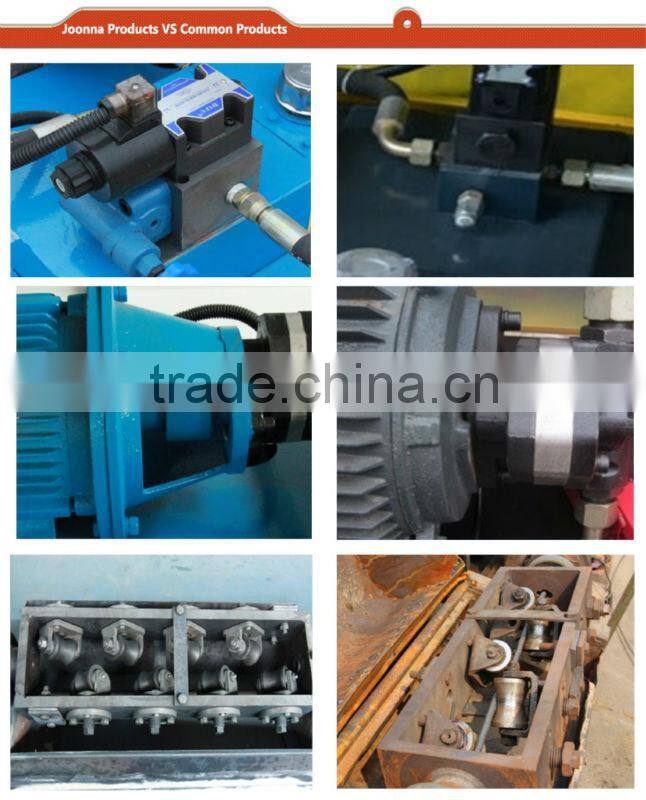

1. Alloy Steel straight roller2. double wire hydraulic pipe
3. 9 CrSi cutting blade
4. Thicken Protective cover
5. TUV, SGS

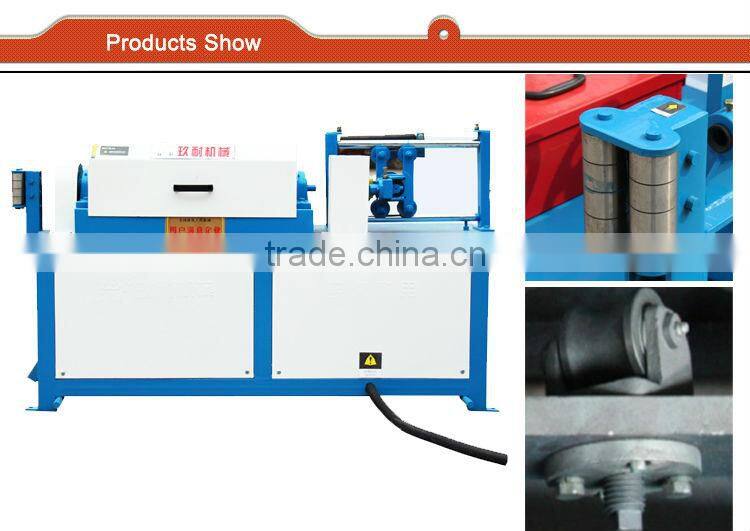

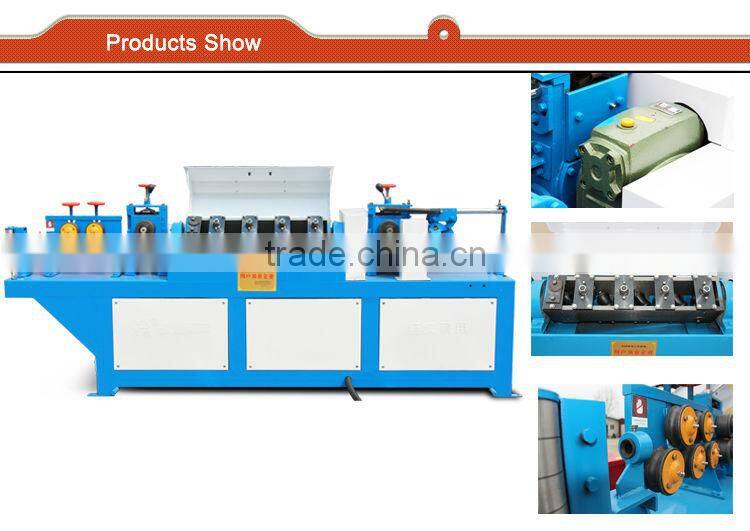

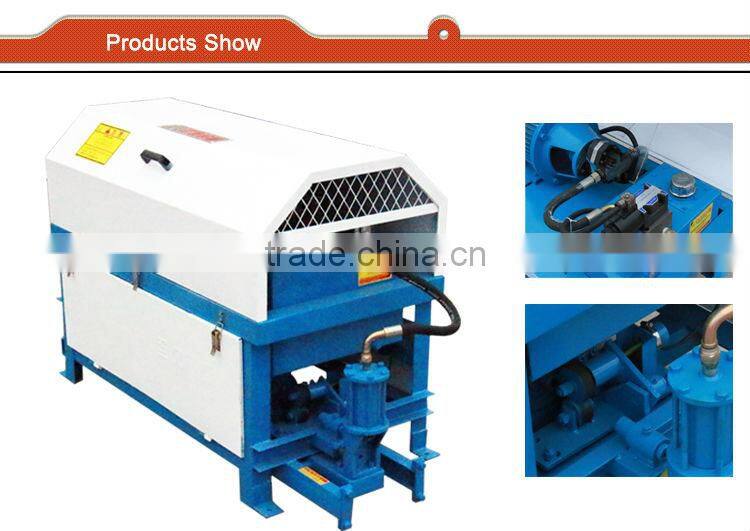

TUV quality automatic machine steel wire straightening machine
JN/GT4-14 fully automatic rebar straightening & cutting machine could realize BATCH OPERATION, the user could set 99 working batch in total, cutting length and quantity could be set for each batch, adopts high working efficiency and low cutting tolerance, it is the ideal rebar processing equipment. And straightening DICE or ROLLER are optional for the straightening system.
Model | JN/GT4-12A | JN/GT4-12B | JN/GT4-14A | JN/GT4-14B |
Working Speed | 35-50m/min | 30-45m/min | 55-60m/min | 55-60m/min |
Straightening accuracy | 2mm/m | 2mm/m | 2mm/m | 2mm/m |
Cutting length tolerance | ±10mm | ±10mm | ±10mm | ±10mm |
Straightening Steel Diameter Scope | Φ4-Φ12(plain steel) Φ4-Φ10(reinforced steel bar) | Φ4-Φ12(plain steel) Φ4-Φ10(reinforced steel bar) | Φ4-Φ14(plain steel) Φ4-Φ12(reinforced steel bar) | Φ4-Φ14(plain steel) Φ4-Φ12(reinforced steel bar) |
Power | 9kw | 9kw | 11kw | 11kw |
Cutting length limitation(mm) | 0.3m-99.99m | 0.3m-99.99m | 0.3m-99.99m | 0.3m-99.99m |
Voltage | 380v | 380v | 380v | 380v |
Weight | 500kg | 850kg | 1500kg | 1700kg |
